Hager FWK-Plus ulkokulma 60x60 mm kuumasinkitty palosuojaus FWKP600603VERZ

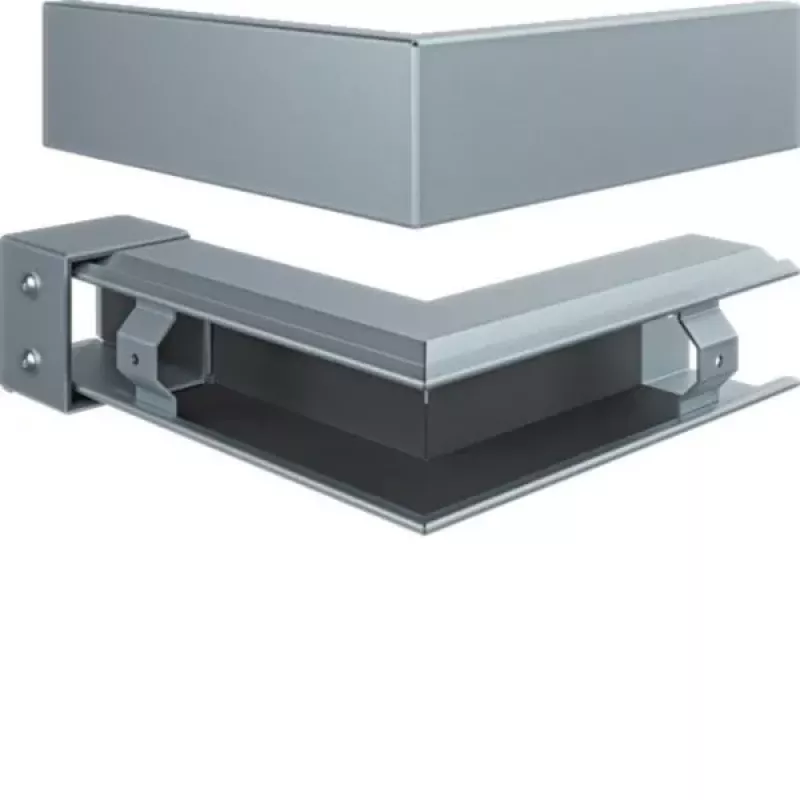

External corner for the Hager FWK-Plus fire protection duct system, enabling 90° direction changes with a galvanized steel finish. Designed for 60x60 mm ducts, it maintains fire resistance from E30 to E120 per DIN 4102-12.

Advantages

Galvanized steel provides corrosion protection, ensuring durability in indoor environments. The corner integrates seamlessly with FWK-Plus components, preserving the system's fire resistance classification.

Suitable for

• Routing cables around corners in fire protection ducts
• Indoor installations requiring E30 to E120 fire resistance
• Use with Hager FWK-Plus 60x60 mm duct system

Key specifications

• Product type: External corner
• System: Hager FWK-Plus fire protection duct
• Duct compatibility: 60 mm height, 60 mm width
• Angle: 90°
• Material: Steel, galvanized
• Fire resistance: DIN 4102-12, E30 to E120 (system dependent)
• Colour: Metallic grey

Recommendations

Pair with Hager FWK-Plus straight sections and connectors for a complete fire-rated cable routing solution.
