Hager jakeluverkon sarjakytkin pinta-asennettava 1-napainen WNC300

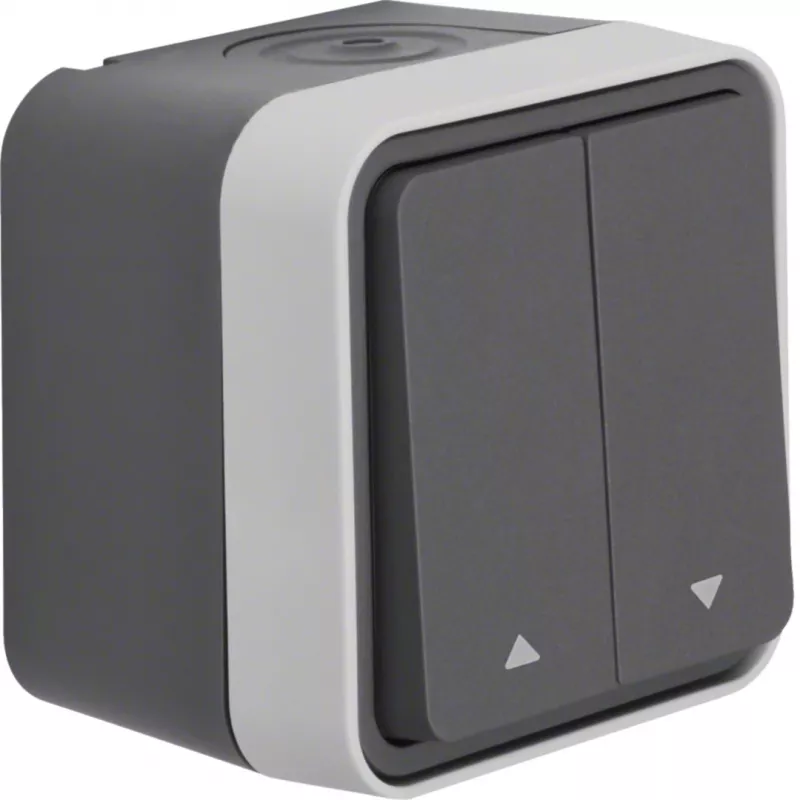

Control motorized blinds and shutters with the Hager WNC300, a surface-mounted 1-pole series switch rated for 250 V AC and 10 A. Its dual rocker design with up/down arrow imprints provides intuitive operation.

Overview

The Hager WNC300 is a jalousie series switch designed for surface mounting. It features screw terminals for secure wiring and is made from halogen-free thermoplastic in polar white (RAL 9010). With an IP20 protection rating, it is suitable for indoor use.

What stands out

• Dual rocker switch with up/down arrows for blind control
• Halogen-free thermoplastic construction
• Compact dimensions: 70 x 70 x 40 mm
• Operating temperature range: -5 to +40 °C

Technical details

• Product type: Jalousie series switch
• Mounting type: Surface-mounted
• Number of poles: 1
• Rated voltage: 250 V AC
• Rated current: 10 A
• Switch type: Rocker switch
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm²
• Material: Thermoplastic
• Colour: Polar white (RAL 9010)
• IP protection class: IP20
• Halogen-free: Yes
• Operating temperature: -5 to +40 °C
• Dimensions (W x H x D): 70 x 70 x 40 mm
• Suitable for: Motorized blinds/shutters
• Number of rockers: 2

Our verdict

A reliable and straightforward solution for controlling blinds and shutters, with clear up/down controls and a robust build.
