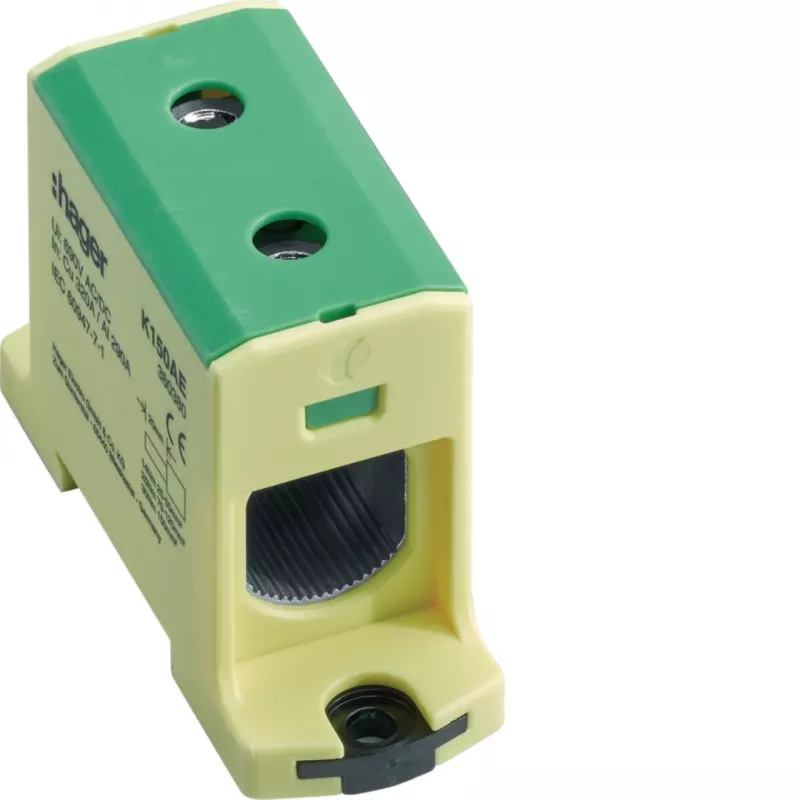

HAGER K150AE päämaadoitusliitin 25-150 mm² vihreä-keltainen

Main earthing terminal for reliable potential equalization in electrical installations. Connects a main conductor from 25 to 150 mm² and an auxiliary conductor from 2.5 to 25 mm², both rigid or flexible.

Advantages

Robust screw terminals ensure secure, low-resistance connections. The green-yellow housing provides clear identification as a protective earth (PE) terminal. Polyamide insulation offers durability and electrical safety.

Suitable for

• Main earthing in distribution boards
• Potential equalization in industrial and residential installations
• Connecting copper conductors up to 150 mm²

Key specifications

• Main conductor cross-section: 25 - 150 mm²
• Auxiliary conductor cross-section: 2.5 - 25 mm²
• Number of connections: 1 main, 1 auxiliary
• Rated current: 309 A
• Rated voltage: 1000 V AC/DC
• Mounting: Screw mounting
• Material: Polyamide insulation, tinned brass conductor

Recommendations

Use with copper conductors within the specified cross-section range. Ensure proper torque on screw terminals for a secure connection.
