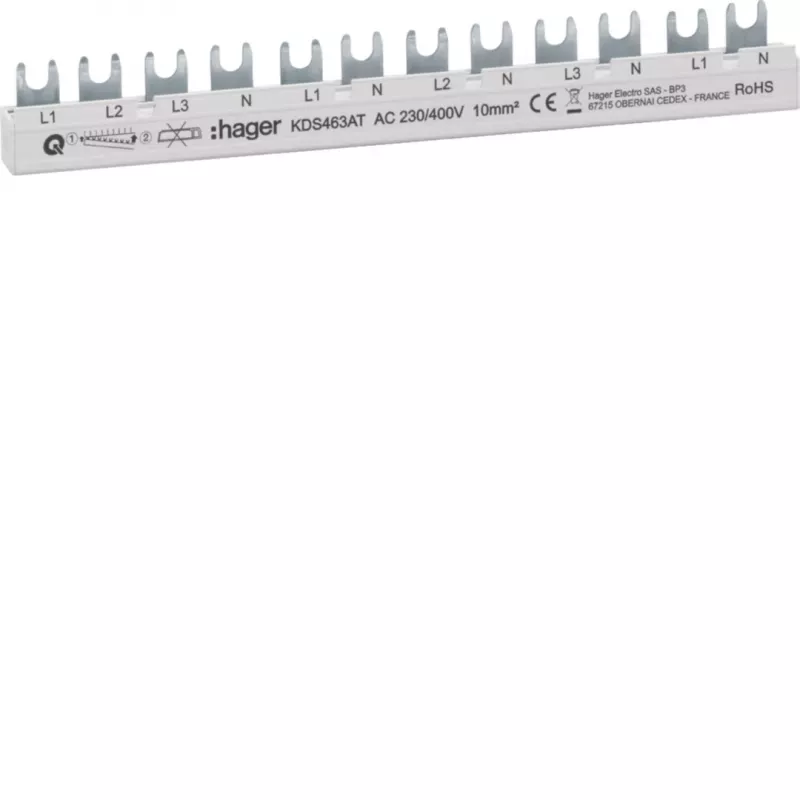

HAGER KDS463AT 4-napainen 12-moduulin tappivirtakisko, 63 A, 230/400 V AC

Rated at 63 A and 230/400 V AC, this 4-pole pin busbar supplies 12 modular devices with a quick plug-in connection.

Overview

The HAGER KDS463AT is a 4-pole comb busbar (3-phase + neutral) for DIN rail mounting. It connects modular devices with pin terminals using a quick connection method. The busbar is made of copper with self-extinguishing thermoplastic insulation.

What stands out

• 4-pole configuration: L1, L2, L3, N
• Rated current 63 A, rated voltage 230/400 V AC
• 12 modules (TE) width
• Pin type connection for quick installation
• Conductor cross-section: 10 mm²

Technical details

• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Short-circuit withstand current (Icw): 10 kA (1s)
• Degree of protection: IP20
• Operating temperature: -25 to 70 °C
• Flammability rating: UL94 V2
• Standard compliance: EN 61439-1

Our verdict

A reliable busbar for distributing power to multiple modular devices in distribution boards.
