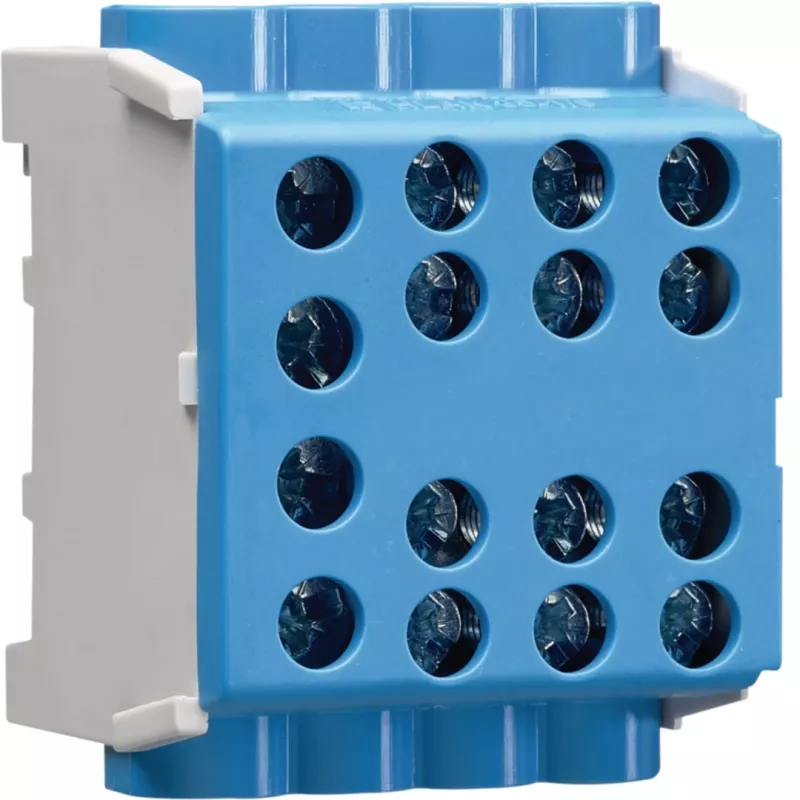

HAGER KH35N8 pääjohdon haaraliitäntä 1-napainen 125A/63A

Rated at 125 A for the main line and 63 A for the branch line, this HAGER KH35N8 main line branch terminal handles high-current distribution in a single pole.

Overview

The HAGER KH35N8 is a 1-pole main line branch terminal designed for reliable electrical distribution in industrial and commercial installations. It allows branching from a main conductor to a smaller branch conductor without cutting the main line.

What stands out

• Main line rated current up to 125 A, branch line up to 63 A
• Accepts rigid or flexible conductors from 6 to 35 mm² on the main side and 1.5 to 16 mm² on the branch side
• Screw terminals ensure secure, low-resistance connections
• Mounts on standard 35 mm DIN rail or by screw mounting
• Halogen-free polyamide housing in grey

Technical details

• Rated operational voltage: 400 V AC / 690 V AC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Tightening torque: 4 Nm (main line), 2 Nm (branch line)
• Protection degree: IP20
• Operating temperature: -25 to 70 °C
• Standard compliance: IEC/EN 60947-7-1

Our verdict

A robust and versatile branch terminal for high-current distribution, built to meet stringent international standards.
