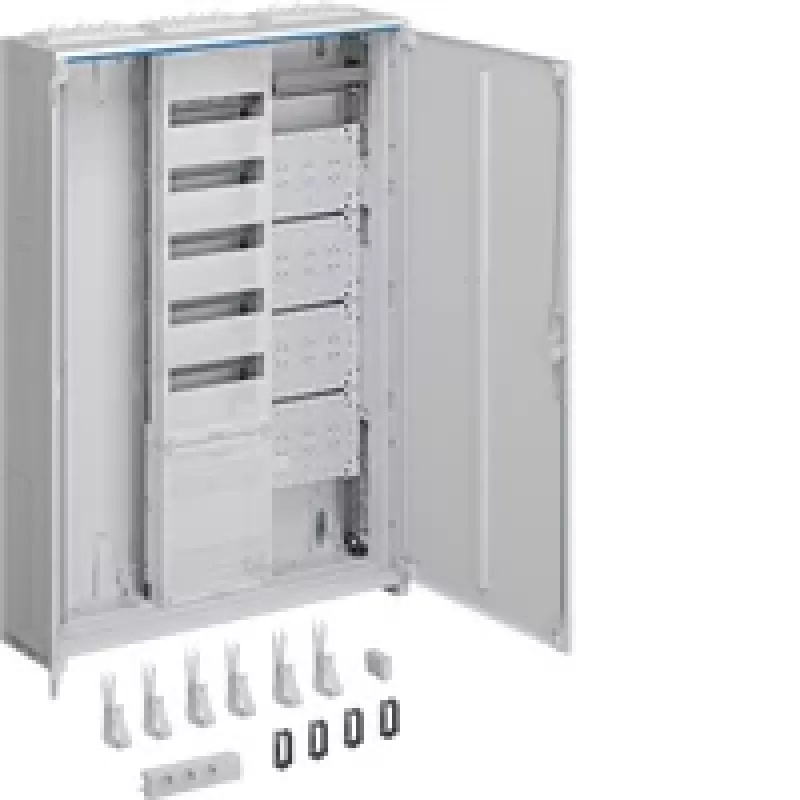

Hager kokonaiskaappi VF-5rh/APZ/Multimedia universZ 1100

The Hager Complete Cabinet VF-5rh/APZ/Multimedia universZ 1100 is a pre-configured flush-mounted distribution cabinet designed for modern residential and commercial electrical installations. It integrates metering, distribution, APZ (additional equipment), and multimedia functions in a single compact unit, saving space and installation time.

Advantages

This complete cabinet offers a ready-to-install solution with pre-assembled components, reducing on-site labor. The integrated APZ and multimedia fields provide flexibility for additional devices and communication modules. The lockable steel door ensures security, while the reversible hinge allows for left or right opening. The cabinet is designed for easy cable entry with pre-punched openings on top, bottom, and sides.

Suitable for

• Residential buildings requiring a single meter and distribution board
• Small commercial installations with up to 63A rated current
• Projects needing integrated multimedia and APZ compartments
• Flush-mounted installations in walls

Key specifications

• Product Type: Complete Meter and Distribution Cabinet
• Series: universZ
• Number of Meter Places: 1 eHZ (electronic household meter)
• Number of Distribution Rows: 5
• Module Units per Distribution Row: 12 TE (DIN units)
• Total Module Units (Distribution): 60 TE
• Integrated APZ Field: Yes
• Integrated Multimedia Field: Yes
• Protection Class: IP31
• Rated Current (Imax): 63 A
• Mounting Type: Flush-mounted (UP) or Surface-mounted (AP) with accessories
• Material: Steel sheet
• Color: Traffic White (RAL 9010)
• Door Type: Steel door, lockable
• Door Hinge Side: Right (reversible)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Cable Entry: Pre-punched openings (top, bottom, side)
• Busbar System: Integrated PE/N busbars

Recommendations

This cabinet is ideal for new installations or upgrades where a compact, all-in-one solution is required. Ensure proper wall cutout dimensions for flush mounting. For surface mounting, use optional accessories.
