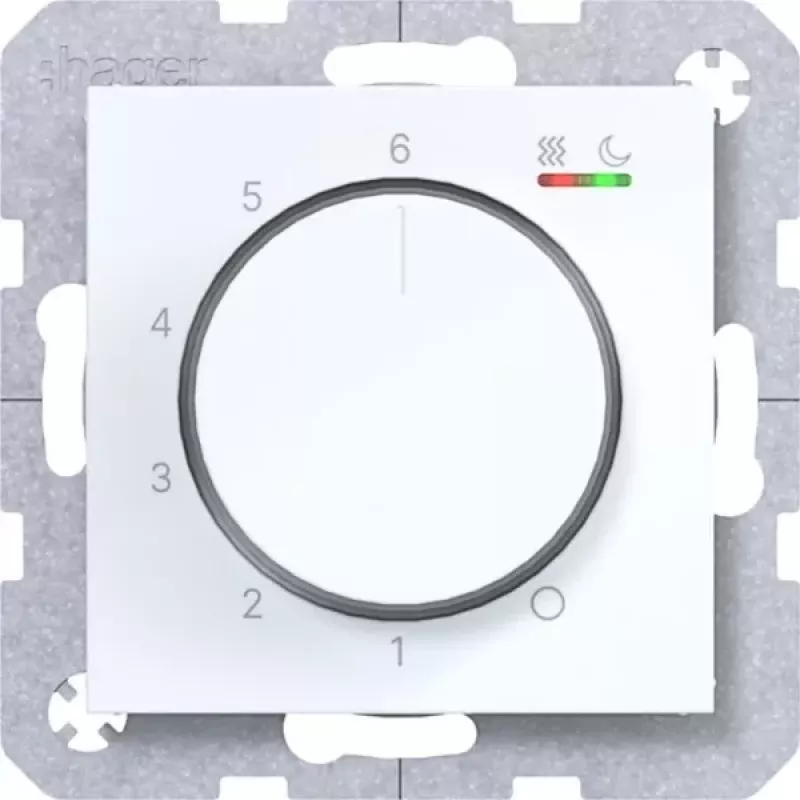

Hager lämpötilasäädin 230V/15W WAN5011WG

The Hager WAN5011WG is a reliable flush-mounted temperature controller designed for precise regulation of heating and cooling systems in residential and commercial environments. Operating at 230V AC with a maximum switching capacity of 2300W (resistive load), this bimetallic thermostat features a temperature setting range from +5°C to +30°C and a switching differential of approximately 0.5 K. Its classic polar white finish (RAL 9010) blends seamlessly with any interior.

Advantages

Robust bimetallic control with thermal feedback ensures accurate temperature maintenance. The 1 changeover contact (SPDT) allows flexible switching for both heating and cooling applications. Screw terminals facilitate easy installation, and the IP20 protection class makes it suitable for indoor use.

Suitable for

• Room temperature control in homes, offices, and light commercial spaces
• Heating and cooling system regulation
• Flush-mounted installations in standard wall boxes

Key specifications

• Operating Voltage: 230 V AC
• Max. Switching Current (Resistive Load): 10 A
• Max. Switching Current (Inductive Load): 2 A
• Max. Switching Capacity (Resistive Load): 2300 W
• Temperature Setting Range: +5°C to +30°C
• Contact Type: 1 Changeover Contact (SPDT)
• Switching Differential (Hysteresis): Approx. 0.5 K
• Protection Class: IP20
• Mounting Type: Flush-mounted
• Color: Polar White (RAL 9010)
• Control Principle: Bimetallic with Thermal Feedback
• Sensor Type: Internal Room Sensor
• Operating Temperature Range: 0°C to +50°C
• Connection Type: Screw Terminals
• Display: No
• Function: Heating/Cooling Control
• Material: Thermoplastic
• Approvals: CE

Recommendations

For optimal performance, install in a central location away from drafts, direct sunlight, and heat sources. Ensure proper wiring according to local regulations. This controller is not compatible with smart home systems or remote control.
