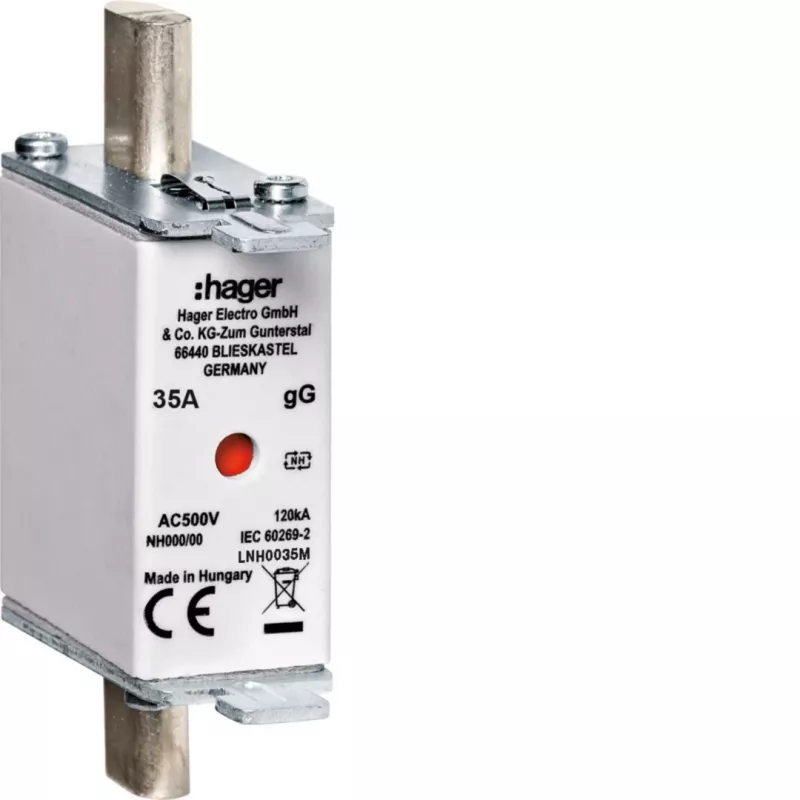

Hager LNH0035M NH000 gG 500V 35A sulakevaippa K-ilmaisimella iskutappi-ilmaisin

NH fuse link for protecting cables, lines, and equipment in low-voltage distribution systems. Rated 35 A at 500 V AC, size NH000, with a K-Melder striker indicator for remote signaling of fuse operation.

Advantages

High breaking capacity of 120 kA and short-circuit current limiting ensure reliable protection. The ceramic body and silver-plated copper contacts provide durability and low contact resistance.

Suitable for

• Industrial power distribution
• Motor control centers
• Building electrical installations

Key specifications

• Rated current: 35 A
• Rated voltage: 500 V AC
• Fuse size: NH000
• Utilization category: gG (general purpose)
• Breaking capacity: 120 kA
• Indicator: K-Melder (striker)
• Standards: IEC 60269-2
• Power loss at rated current: 4.2 W
• Frequency: 50/60 Hz
• Ambient temperature: -5 to +40 °C
• Mounting: NH fuse base
• Body material: ceramic
• Contact material: silver-plated copper
• Number of poles: 1

Recommendations

Ensure compatibility with NH000 fuse bases and verify that the striker indicator is connected to the monitoring system if remote signaling is required.
