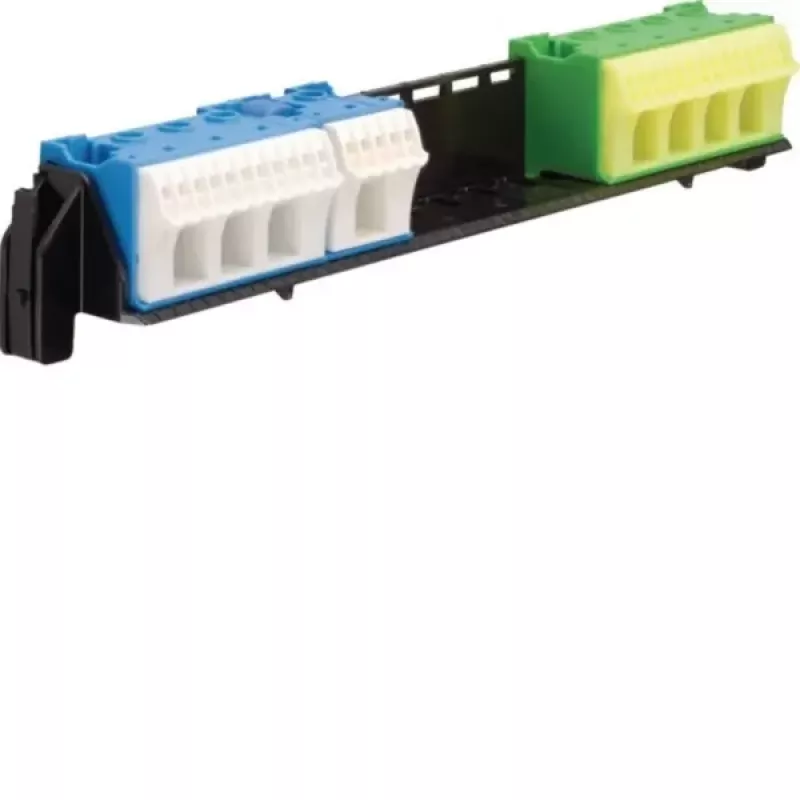

HAGER PE/N-liitinrima 2-rivinen VZ462

The HAGER VZ462 is a high-quality PE/N terminal block designed for use in distribution boards and consumer units. With two rows and 21 PE and 21 N terminals, it provides reliable and organized grounding and neutral connections for electrical installations.

Advantages

This terminal block offers clear separation of PE and N conductors, ensuring safety and compliance with standards. Its compact DIN rail mount design saves space and simplifies installation. The screw terminal connections provide secure and durable wiring.

Suitable for

• Distribution boards
• Consumer units
• Electrical panels requiring PE/N termination

Key specifications

• Terminal Type: PE/N Terminal Block
• Number of Rows: 2
• Number of PE Terminals: 21
• Number of N Terminals: 21
• PE Terminal Capacity (Main): 2 x 16 mm²
• PE Terminal Capacity (Branch): 19 x 4 mm²
• N Terminal Capacity (Main): 2 x 16 mm²
• N Terminal Capacity (Branch): 19 x 4 mm²
• Rated Current (PE): 80 A
• Rated Current (N): 80 A
• Rated Voltage: 400 V AC
• Mounting Type: DIN Rail (35mm)
• Connection Method: Screw Terminal
• Housing Material: Polyamide (PA)
• Conductor Material: Brass / Copper
• Color: Grey (Housing), Blue (N), Green/Yellow (PE)
• Degree of Protection: IP20
• Operating Temperature: -25 to +70 °C
• Standard: IEC 60947-7-1

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use with copper conductors only.
