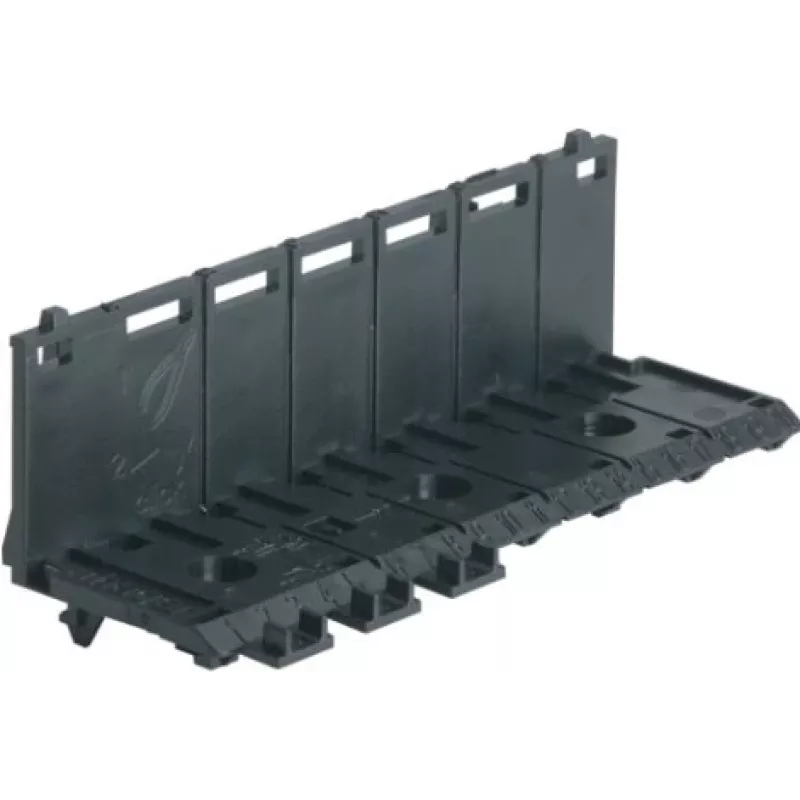

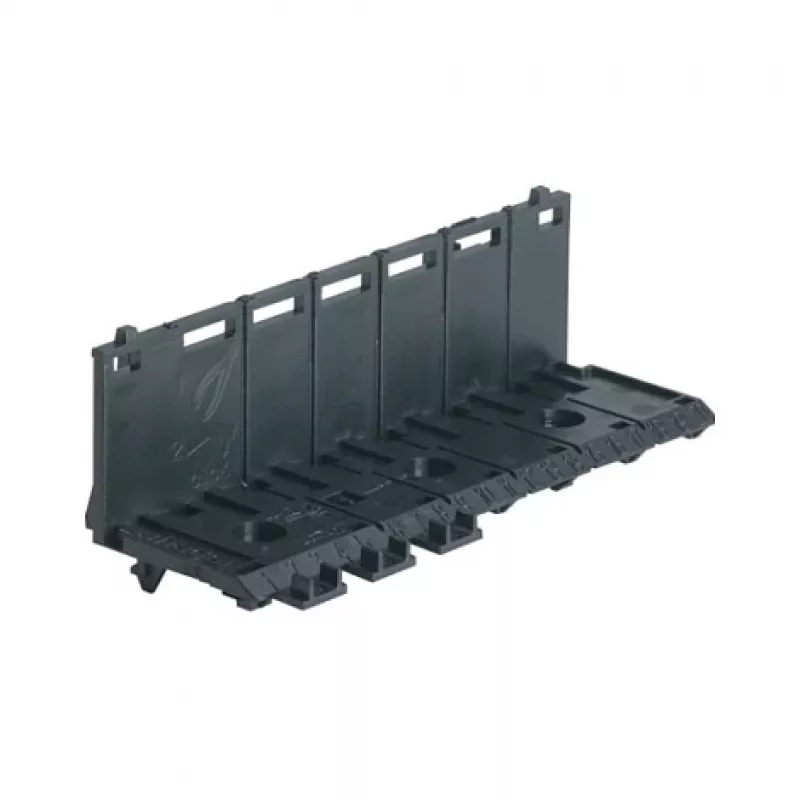

Hager QuickConnect riviliitinteline KN00A yleissovitin

The Hager KN00A QuickConnect terminal block carrier provides a tool-free snap-on mounting solution for QuickConnect terminal blocks, with insulation voltage support up to 1000V depending on connected terminals.

Overview

This universal adapter from Hager's QuickConnect series enables flexible positioning of QuickConnect terminal blocks in electrical distribution boards and control cabinets. The carrier is made of grey thermoplastic (polyamide PA6) and is halogen-free, ensuring durability and safety in electrical installations.

What stands out

• Tool-free snap-on mechanism for quick installation
• Compatible with Hager QuickConnect terminal blocks
• Supports DIN rail (EN 60715) or surface mounting
• Halogen-free thermoplastic construction
• Operating temperature range from -5°C to +40°C

Technical details

• Product type: Universal adapter / terminal block carrier
• Connection technology: QuickConnect
• Mounting type: DIN rail (EN 60715) or surface mounting
• Material: Thermoplastic (polyamide PA6)
• Colour: Grey
• Operating temperature: -5°C to +40°C
• Storage temperature: -25°C to +70°C
• Insulation voltage: Up to 1000V (depending on connected terminals)
• Number of modules: 0.5
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A reliable and versatile carrier for QuickConnect terminal blocks, offering easy installation and robust performance in electrical distribution applications.
