Hager RFM101D BEKA langaton lämpöilmaisin integroidulla sireenillä

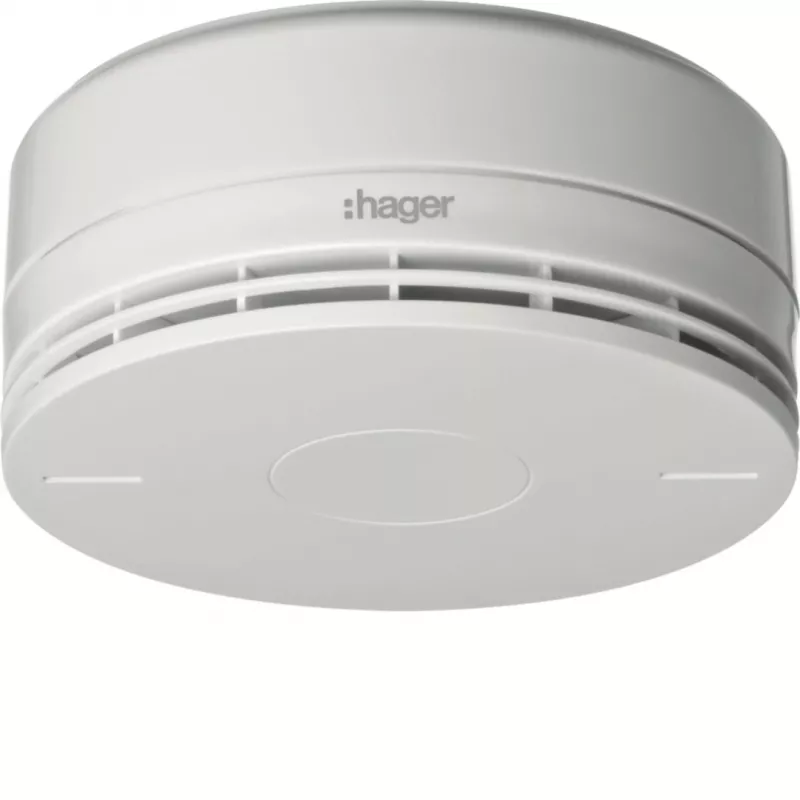

The Hager RFM101D BEKA Wireless Heat Detector with Integrated Siren is a reliable and intelligent fire safety device designed for areas where smoke detectors may cause false alarms. It uses thermodifferential and maximum temperature detection methods to sense heat, making it ideal for kitchens, garages, workshops, boiler rooms, and similar environments. The detector operates on the BEKA radio system at 868 MHz and can interconnect with up to 40 other BEKA radio detectors for comprehensive coverage.

Advantages

This heat detector offers several key benefits: it is wireless, simplifying installation and eliminating the need for wiring; it features an integrated siren with an alarm volume exceeding 85 dB(A) at 3 meters; it has a long battery life of up to 10 years from two CR123A lithium batteries; and it includes a low battery warning and test button for easy maintenance. The device is certified to EN 54-5 and VdS G 212009, ensuring high safety standards.

Suitable for

• Kitchens and cooking areas
• Garages and workshops
• Boiler rooms and utility rooms
• Areas prone to dust, steam, or fumes that could trigger false smoke alarms

Key specifications

• Product Type: Wireless Heat Detector
• Detection Method: Thermodifferential and Maximum Temperature
• Heat Detection Class: A1R (according to EN 54-5)
• Wireless Protocol: BEKA Radio System
• Radio Frequency: 868 MHz
• Power Source: 2x CR123A Lithium Batteries
• Battery Life: Up to 10 years
• Alarm Volume: > 85 dB(A) at 3m
• Operating Temperature Range: -10 °C to +60 °C
• Humidity Range: 10% to 95% relative humidity, non-condensing
• Interconnection Capability: Up to 40 BEKA radio detectors
• Mounting Type: Ceiling
• Colour: White (RAL 9010)
• Protection Rating: IP20
• Certifications: EN 54-5, VdS G 212009
• Integrated Siren: Yes
• Test Function: Integrated test button
• Low Battery Warning: Yes

Recommendations

For optimal safety, install this heat detector in areas where smoke detectors are not suitable. Ensure the detector is mounted on the ceiling and tested regularly using the test button. Replace batteries when the low battery warning activates. This device is part of the BEKA radio system, allowing easy expansion and interconnection with other compatible detectors.
