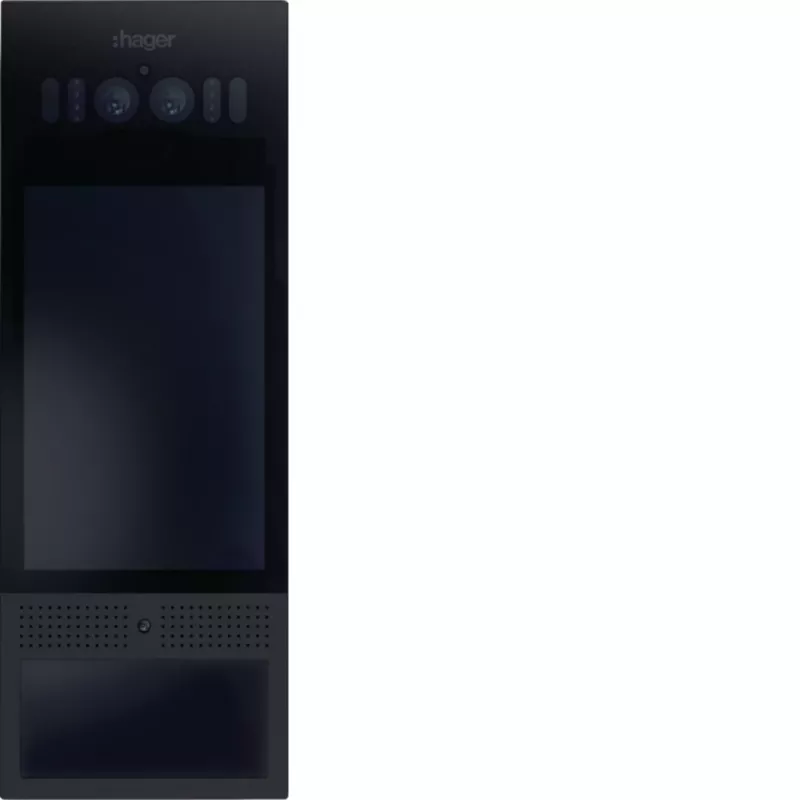

Hager RTQ540X ulkoasema videonäytöllä Touch IP RFID PIN -ovipuhelin

With a 7-inch capacitive touchscreen and a 120° wide-angle HD camera, the Hager RTQ540X delivers crisp visuals and effortless access control in one flush-mounted unit.

Overview

The Hager RTQ540X is a premium outdoor station for the Hager domovea IP system. It combines a high-resolution touch display, HD video, and multiple access methods—RFID, PIN, and IP intercom—into a robust aluminum housing rated IP54 and IK07. Full-duplex audio with echo cancellation ensures clear communication, while Power over Ethernet simplifies installation.

What stands out

• 7-inch capacitive touchscreen with 1024 x 600 resolution for intuitive operation.
• HD camera with 120° wide-angle lens and infrared night vision for round-the-clock visibility.
• Flexible access: RFID (MIFARE/NFC, 13.56 MHz) and PIN code.
• IP connectivity via Ethernet RJ45 with PoE (IEEE 802.3af) for single-cable installation.
• Durable aluminum housing with IP54 weather resistance and IK07 impact protection.
• SIP protocol support for integration with compatible systems.

Technical details

• Display: 7-inch capacitive touchscreen, 1024 x 600 pixels.
• Camera: HD, 120° wide-angle, infrared LEDs for night vision.
• Access control: RFID (MIFARE, NFC compatible) at 13.56 MHz, PIN code.
• Connectivity: Ethernet RJ45, PoE IEEE 802.3af Class 0.
• Audio: Full-duplex with echo cancellation.
• Housing: Aluminum, anthracite colour.
• Protection: IP54 (dust and water), IK07 (impact).
• Mounting: Flush-mounted.
• Operating temperature: -20°C to +50°C.
• Integration: Hager domovea IP, SIP protocol.

Our verdict

The Hager RTQ540X is a robust, feature-rich outdoor station that combines modern touch control, high-definition video, and versatile access options in a weather-resistant package—ideal for demanding residential or commercial installations.
