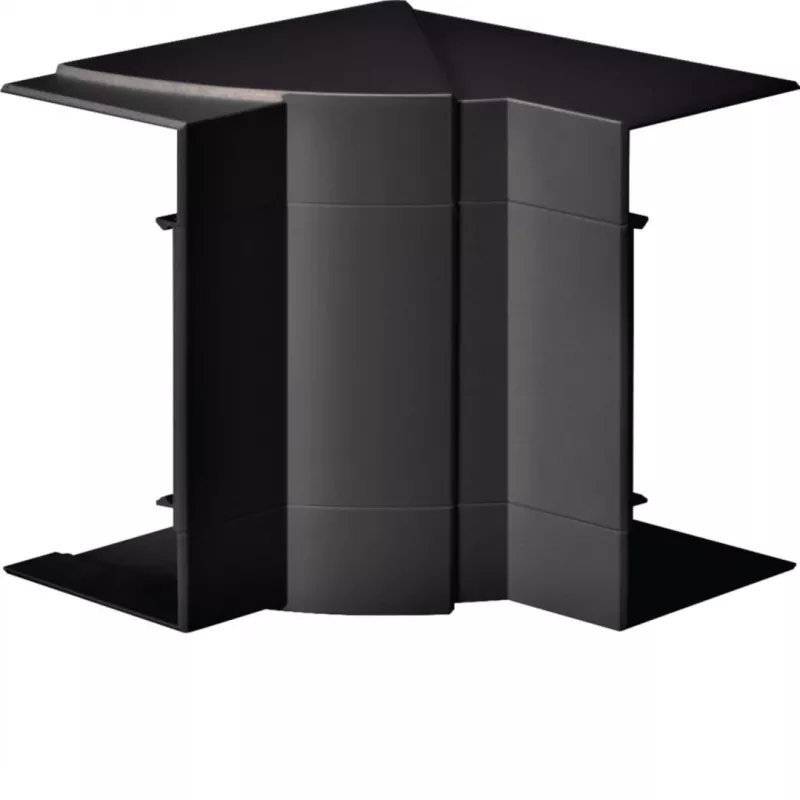

HAGER sisäkulma BR651304H9011 65x130mm grafiitinmusta

Inner corner for OBO Bettermann BR cable trunking system, enabling 90° direction changes inside the duct while maintaining cable protection. Compatible with trunking dimensions 65 mm height and 130 mm width.

Advantages

Snap-on mounting allows quick installation without tools. Halogen-free PVC construction supports safer indoor use. Graphite black colour (RAL 9011) provides a consistent finish with the trunking system.

Suitable for

• Indoor cable routing in commercial and residential buildings
• Creating 90° internal bends in BR trunking runs
• Use with OBO Bettermann BR trunking of 65x130 mm

Key specifications

• Product type: Inner corner
• System compatibility: OBO Bettermann BR
• Trunking height: 65 mm
• Trunking width: 130 mm
• Corner angle: 90°
• Colour: Graphite black (RAL 9011)
• Material: PVC
• Halogen-free: Yes
• Temperature resistance: -5 to +60 °C
• Mounting type: Snap-on

Recommendations

Verify that your trunking profile matches the 65x130 mm dimensions before ordering.
