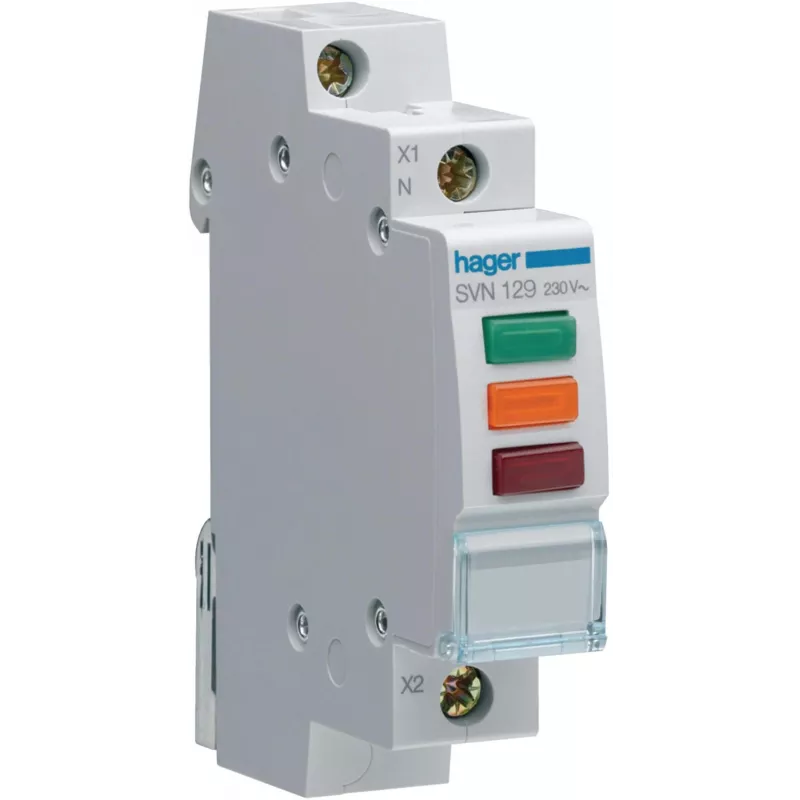

HAGER SVN129 merkkivalo, 230V AC, 3 x LED punainen+vihreä+oranssi, DIN-kisko

The HAGER SVN129 is a high-quality indicator light designed for industrial and commercial electrical installations. It operates at 230V AC and features three bright LEDs in red, green, and orange, providing clear visual status indication. The device is mounted on a DIN rail and occupies just one module, making it ideal for compact control panels.

Advantages

Reliable LED technology ensures long service life and low power consumption of only 0.8 W. The screw terminals accept conductors from 1.5 to 4 mm², simplifying wiring. With an IP40 front protection and IP20 terminal protection, it is suitable for indoor use in clean environments.

Suitable for

• Industrial control cabinets
• Building automation systems
• Machine status indication
• Process monitoring panels

Key specifications

• Supply Voltage: 230 V AC
• Light Source: LED, 3 pcs
• LED Colors: Red, Green, Orange
• Mounting: DIN Rail, 1 Module
• Connection: Screw terminals, 1.5 - 4 mm²
• Power Consumption: 0.8 W
• Protection: IP40 front / IP20 terminals
• Operating Temperature: -20 to 50 °C
• Standards: EN 60947-5-1, EN 60947-1
• Housing Color: Light Grey

Recommendations

For optimal performance, ensure the supply voltage is stable and within the specified range. Use appropriate cable glands for the application environment. This indicator light is not suitable for outdoor use without additional protection.
