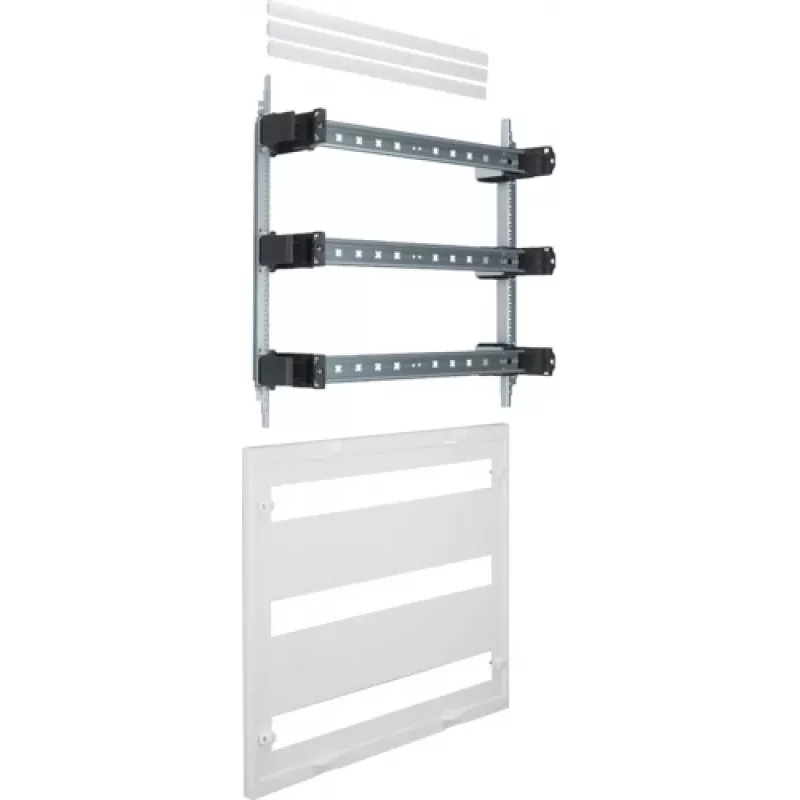

Hager UD32B3 jakokeskus, 3 riviä, 36 moduulia, valkoinen

Electrical installations often become cluttered when circuit breakers and modular devices lack a structured mounting platform. The Hager UD32B3 distribution field solves this by providing a dedicated, pre-fabricated mounting surface that integrates directly into Hager universN enclosures, ensuring clean, organized, and safe electrical distribution.

Who is it for

This distribution field is intended for electricians and panel builders who need to install circuit breakers and other DIN rail devices inside Hager universN enclosures. It is suitable for residential, commercial, and light industrial electrical distribution applications.

Main features

• Three rows of DIN rail, each accommodating up to 12 modules (TE), for a total capacity of 36 modules.
• White finish that matches the Hager universN enclosure range for a consistent appearance.
• Constructed from galvanized steel for durability and corrosion resistance.
• Quick mounting system allows fast and tool-free installation into compatible enclosures.
• Modular design enables flexible configuration with a wide range of Hager modular devices.

Specifications

• Brand: Hager
• Model: UD32B3
• MPN: UD32B3
• EAN: 3250616141292
• Product type: Distribution field
• Series: Hager universN
• Number of rows: 3
• Module capacity per row: 12 TE
• Total module capacity: 36 TE
• Colour: White
• Material: Galvanized steel
• Width: 450 mm
• Height: 500 mm
• Depth: 125 mm
• Compatibility: Hager universN enclosures
• Mounting type: Quick mounting system
• Units per package: 1

Tips

When installing the UD32B3, ensure the enclosure is de-energized and the mounting surface is clean. Align the distribution field with the enclosure's mounting points and secure it using the quick mounting system. Always follow local electrical codes and regulations.
