Hager ulkokulma BR0802A9016 80mm kaapelikanavalle, liikennevalkoinen

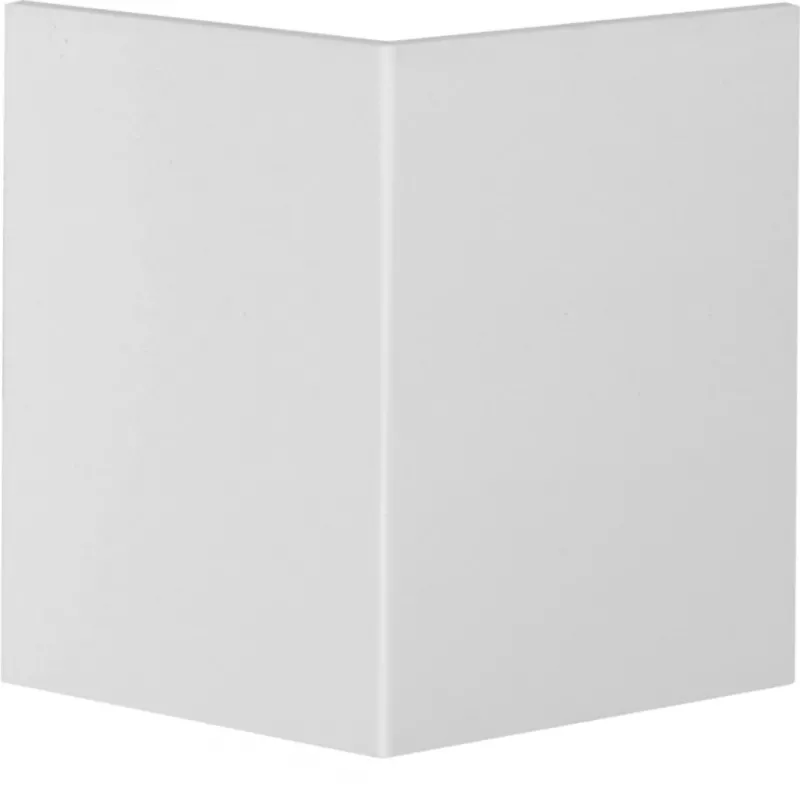

For a clean 90° turn in the Hager BR cable duct system, this external corner snaps directly onto 80 mm wide ducting. Unlike generic corners that require cutting or leave gaps, the BR0802A9016 matches the duct profile exactly, preserving the installation's neat appearance and protecting cables at the bend. The traffic white (RAL 9016) finish blends with standard interior surfaces and matches other Hager BR components.

Highlights

• External corner for Hager BR cable duct, 80 mm width
• Traffic white (RAL 9016) PVC construction
• Snap-on mounting for quick, tool-free installation
• Compatible with 20 mm duct height
• Self-extinguishing material for added safety

In daily use

Installers appreciate the secure clip-on design that holds the corner firmly without adhesive or screws. The PVC material is robust yet easy to handle, and the corner can be removed and repositioned if needed. It suits both wall and ceiling mounting, making it versatile for office, retail, or residential cable management.

Full specifications

• Product type: External corner for cable duct
• System compatibility: Hager BR cable duct system
• Compatible duct width: 80 mm
• Compatible duct height: 20 mm
• Colour: Traffic white (RAL 9016)
• Material: PVC
• Angle: 90 degrees
• Mounting type: Snap-on / Clip-on
• Halogen-free: No
• Self-extinguishing: Yes (EN 60695-2-11)
• Protection class: IP30
• Temperature range (installation): -5°C to +60°C
• Temperature range (operation): -15°C to +60°C
• UV resistant: No
• Standard: EN 50085-1
• Suitable for wall mounting: Yes
• Suitable for ceiling mounting: Yes

Final note

A straightforward, OEM-quality corner that keeps your cable duct runs looking professional and protects cables at every turn.
