HAGER universZ 1-Zp.-PV mittaritaulun täyttöpaketti ZY01PV

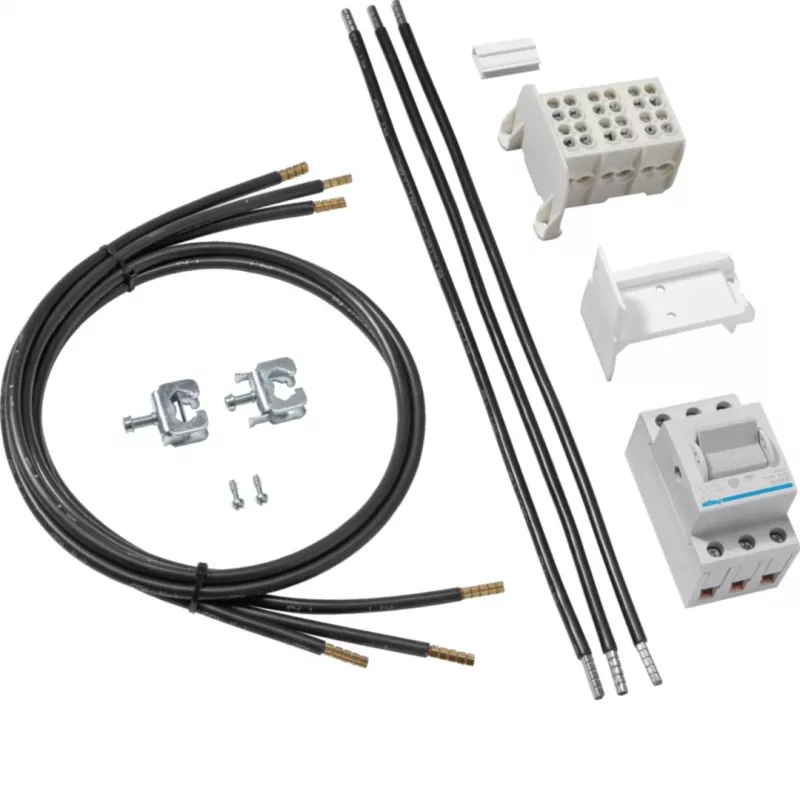

For electricians and panel builders fitting out a Hager universZ meter cabinet for a photovoltaic feed-in, the ZY01PV assembly package provides the essential components for a single meter position. It equips the meter field for PV energy measurement in compliance with VDE-AR-N 4100.

Key specifications

• Product type: Meter panel assembly package
• Application: Photovoltaic (PV) feed-in
• System compatibility: Hager universZ meter cabinets
• Number of meter positions: 1
• Rated current (main circuit): 63 A
• Rated voltage: 230/400 V AC
• Frequency: 50 Hz
• Included main switch: 3-pole, 63 A
• Included surge protection device (SPD): Type 2, 3+N-pole
• Included circuit breaker (PV output): 3-pole, 25 A
• Busbar system: 5-pole (L1, L2, L3, N, PE)
• Connection type: Screw terminals
• Standards compliance: DIN VDE 0603-1, VDE-AR-N 4100
• Installation environment: Indoor (within suitable enclosure)
• Protection degree (components): IP20
• Material: Mixed (plastic, metal)
• Mounting: Snap-on / screw-on for universZ system

Why choose it

The package bundles the necessary switching and protection devices for a PV feed-in point, reducing selection and ordering effort. All components are matched to the universZ system for straightforward installation.

Ideal use cases

• Equipping a meter cabinet for a residential or commercial PV system
• Retrofitting an existing universZ cabinet for solar energy metering

Good to know

The package is intended for indoor use within a suitable enclosure. It includes a type 2 surge protective device and a dedicated PV output circuit breaker.
