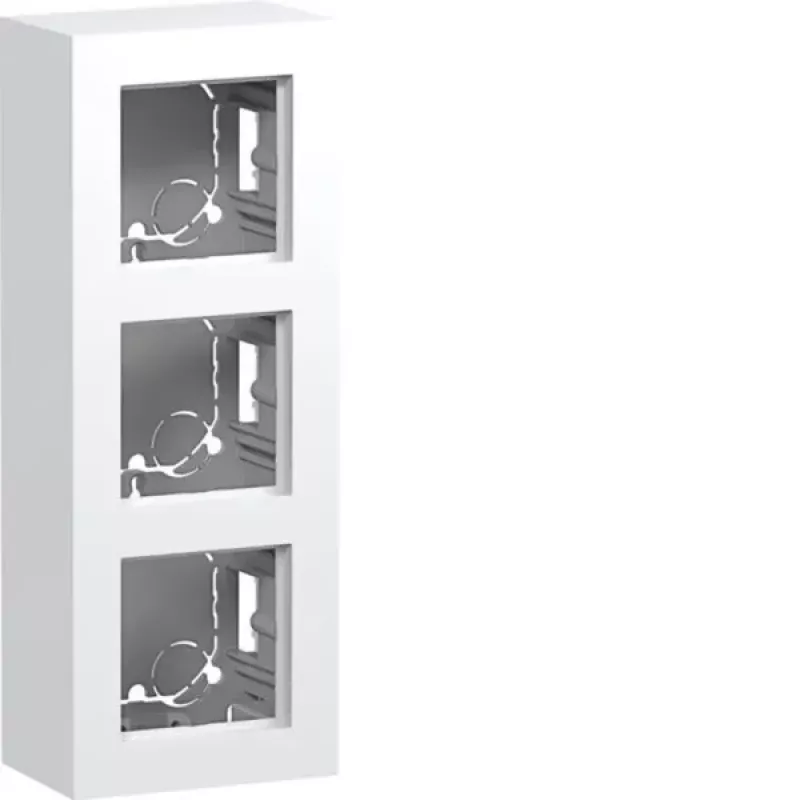

HAGER WAD8310WG 3-osainen pinta-asennusrasia korkea, polarvalkoinen

Electricians and installers use the HAGER WAD8310WG surface-mounted housing to neatly accommodate three modular devices in residential or commercial settings. Its high-profile design provides extra room for wiring and is compatible with the Hager A.8 series.

Key specifications

• Product type: Surface-mounted housing
• Number of gangs: 3
• Design: High version
• Series compatibility: Hager A.8
• Mounting type: Surface-mounted
• Material: Thermoplastic
• Colour: Polar white (RAL 9010)
• Halogen-free: Yes
• IP protection rating: IP20
• Impact resistance: IK07
• Glow wire test: 850 °C
• Operating temperature: -5 to +40 °C
• Storage temperature: -25 to +55 °C
• Relative humidity: 5-95% (non-condensing)
• Device depth: 47 mm
• Device width: 85 mm
• Device height: 225 mm
• Type of fastening: Screw fastening
• Cable entry: Pre-punched
• Surface finish: Matt

Why choose it

The high-profile design offers ample space for wiring, while the halogen-free thermoplastic construction supports safer installations. Its polar white finish blends with standard electrical accessories.

Ideal use cases

• Mounting switches, sockets, or dimmers on walls where flush installation is not possible
• Grouping three modular devices in a single enclosure
• Renovation projects requiring a clean, surface-mounted solution

Good to know

The housing features pre-punched cable entries for convenient wiring and is secured with screws. It is designed for indoor use with an IP20 rating.
