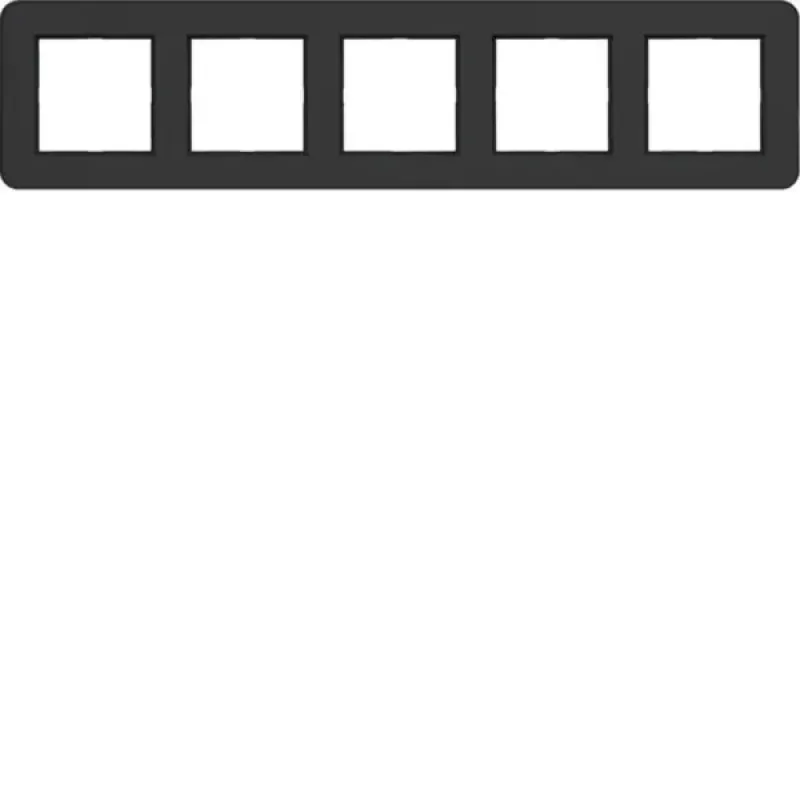

HAGER WAD9500BM 5-osainen peitekehys, C.8 Design, yö musta matt

The HAGER WAD9500BM is a 5-gang cover frame from the C.8 design line, finished in night black matte. It is made of halogen-free thermoplastic and supports both horizontal and vertical installation.

Overview

This cover frame accommodates modules with dimensions of 71 x 71 mm and is suitable for flush-mounted installations. The matte night black finish provides a modern appearance, while the UV-resistant material ensures long-term colour stability.

What stands out

• 5-gang capacity for multiple modules
• Night black matte finish
• Halogen-free thermoplastic construction
• UV-resistant for outdoor use
• Supports horizontal and vertical mounting

Technical details

• Product type: Cover frame
• Number of gangs: 5
• Design line: C.8
• Colour: Night black
• Finish: Matte
• Material: Thermoplastic (polycarbonate)
• Mounting type: Flush-mounted
• Installation orientation: Horizontal and vertical
• Halogen-free: Yes
• UV resistance: Yes
• Impact resistance: IK05
• Protection class: IP20
• Suitable for module dimensions: 71 x 71 mm
• Operating temperature: -5 to +40 °C
• Storage temperature: -25 to +55 °C
• Glow-wire test: 850 °C

Our verdict

A reliable and stylish cover frame for 5-gang installations, offering UV resistance and a sleek matte black finish.
