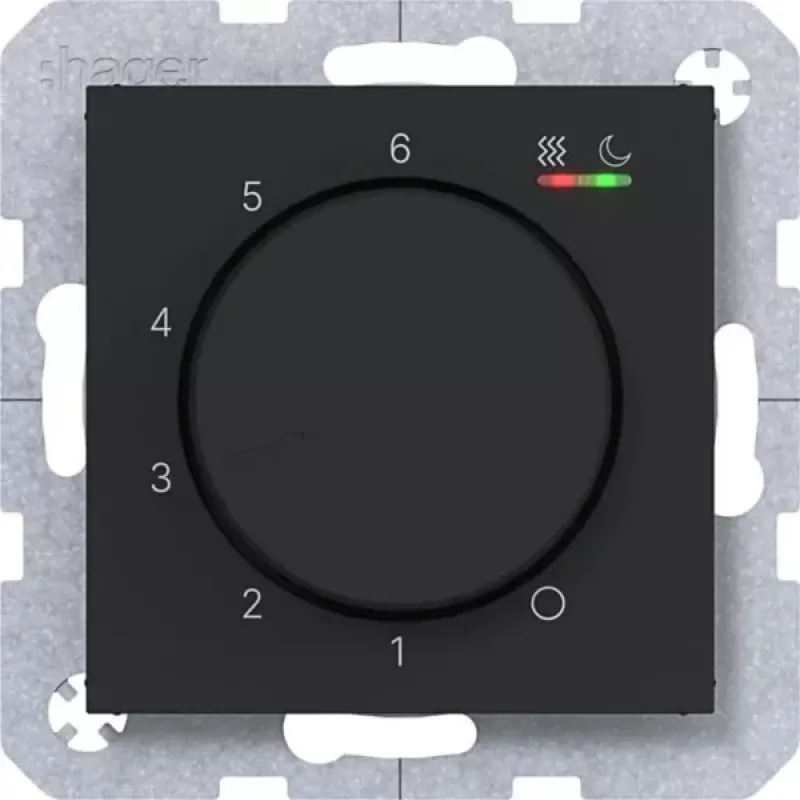

HAGER WAN5010BM huonelämpötilasäädin 230V 16A kierto-/painikekäyttö lämmitys

This HAGER room temperature controller offers reliable mechanical temperature regulation for heating systems with a simple rotary knob and push-button operation. Unlike digital thermostats, it provides a straightforward, no-frills solution with a wide adjustment range and frost protection.

Highlights

• Mechanical bimetal control principle for dependable performance
• Rotary knob with push button for easy temperature adjustment
• Frost protection function activates at approximately +5°C
• Flush-mounted design in polar white (RAL 9010) blends with any interior

In daily use

Set the desired temperature by turning the knob; the push button allows switching between comfort and setback modes. The internal air sensor ensures accurate room temperature sensing, and the 1 normally open contact switches heating loads up to 16 A resistive.

Full specifications

• Operating voltage: 230V AC, 50/60 Hz
• Switching current: 16 A resistive, 4 A inductive
• Temperature adjustment range: +5°C to +30°C
• Switching differential: approx. 0.5 K
• Protection class: IP20
• Connection type: screw terminals
• Energy efficiency class: I (1%)

Final note

Ideal for controlling electric heating, circulating pumps, or thermal actuators in residential and commercial buildings.
