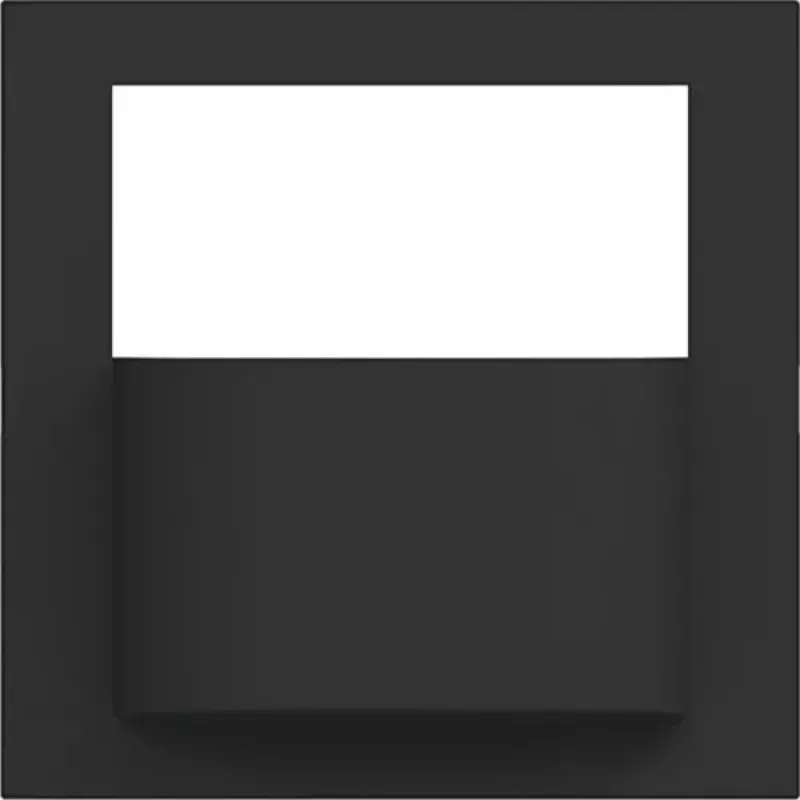

HAGER WAN7030BM liiketunnistinpäällinen 1,1/2,2 m A.x/C.x

The HAGER WAN7030BM is a motion detector attachment engineered for ceiling installation, offering 360° detection coverage. Unlike standalone sensors, this attachment integrates with Hager motion detector base units, providing a flexible solution for indoor lighting control. Its adjustable mounting height and wide detection range make it suitable for various room sizes, while the twilight and time delay settings allow precise automation tailored to specific needs.

Highlights

• Passive infrared (PIR) sensor technology
• 360° detection angle
• Recommended mounting height: 1.1 m to 2.2 m
• Detection range: 8 m diameter at 1.1 m height, 12 m diameter at 2.2 m height
• Twilight setting range: 5 to 2000 lux
• Time delay range: 5 seconds to 30 minutes
• IP41 protection rating
• Polar white plastic housing

In daily use

This attachment is designed for indoor use, providing reliable motion detection for lighting automation. It operates within a temperature range of -5°C to +45°C and is intended for ceiling mounting as an attachment to a compatible base unit. The sensor head features one switching channel for light control, making it a practical component in building management systems.

Full specifications

• Product type: Motion detector attachment
• Sensor technology: Passive infrared (PIR)
• Detection angle: 360°
• Recommended mounting height: 1.1 m - 2.2 m
• Detection range: 8 m diameter at 1.1 m height; 12 m diameter at 2.2 m height
• Twilight setting range: 5 - 2000 lux
• Time delay setting range: 5 seconds - 30 minutes
• International Protection (IP) code: IP41
• Product colour: Polar white
• Housing material: Plastic
• Compatibility: Hager motion detector base units (e.g., WAN7000-WAN7009 series)
• Installation location: Indoor
• Switching channels: 1 (light)
• Operating temperature: -5°C to +45°C
• Mounting type: Ceiling (as an attachment to a base unit)

Final note

The WAN7030BM offers precise motion detection for indoor lighting control when paired with a compatible Hager base unit.
