HAGER WAN7030WM liiketunnistinlisäosa 1,1/2,2 m A.x/C.x-sarjaan

180° detection angle with up to 12m frontal range at 2.2m mounting height — the HAGER WAN7030WM motion detector attachment brings automatic light switching to compatible Berker switch ranges.

Overview

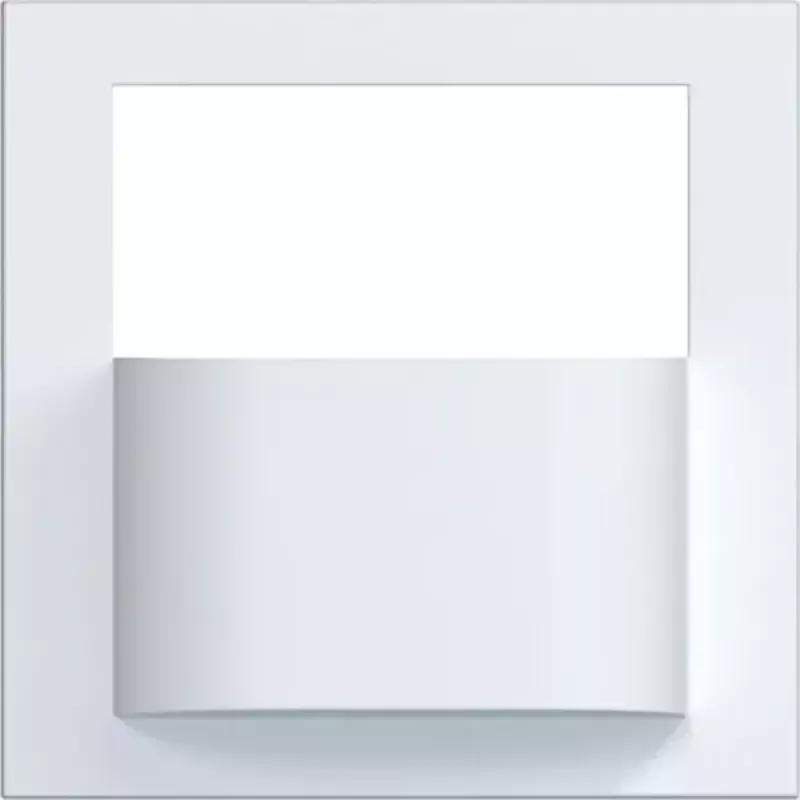

The WAN7030WM is a motion detector attachment designed for flush-mounted inserts in the Berker S.1, B.3, B.7, B.IQ, K.1, K.5, R.1, R.3, and R.8 ranges. It operates at 230V AC, 50/60 Hz and is intended for indoor use. The detector has a 180° detection angle and an adjustable brightness threshold from 5 to 1000 lux, with a time delay adjustable from 10 seconds to 30 minutes. The housing is made of thermoplastic in polar white.

What stands out

• 180° detection angle
• Recommended mounting height: 1.1m or 2.2m
• Detection range: approx. 8m at 1.1m, approx. 12m at 2.2m (frontal)
• Adjustable brightness threshold: 5–1000 lux
• Adjustable time delay: 10 seconds – 30 minutes
• Compatible with multiple Berker switch ranges

Technical details

• Product type: Motion detector attachment
• Operating voltage: 230V AC, 50/60 Hz
• Protection class: IP20
• Material: Thermoplastic
• Colour: Polar white
• Installation: For flush-mounted inserts
• Application: Indoor

Our verdict

A versatile motion detector attachment for Berker switch systems, offering flexible mounting heights and adjustable settings for automatic light control.
