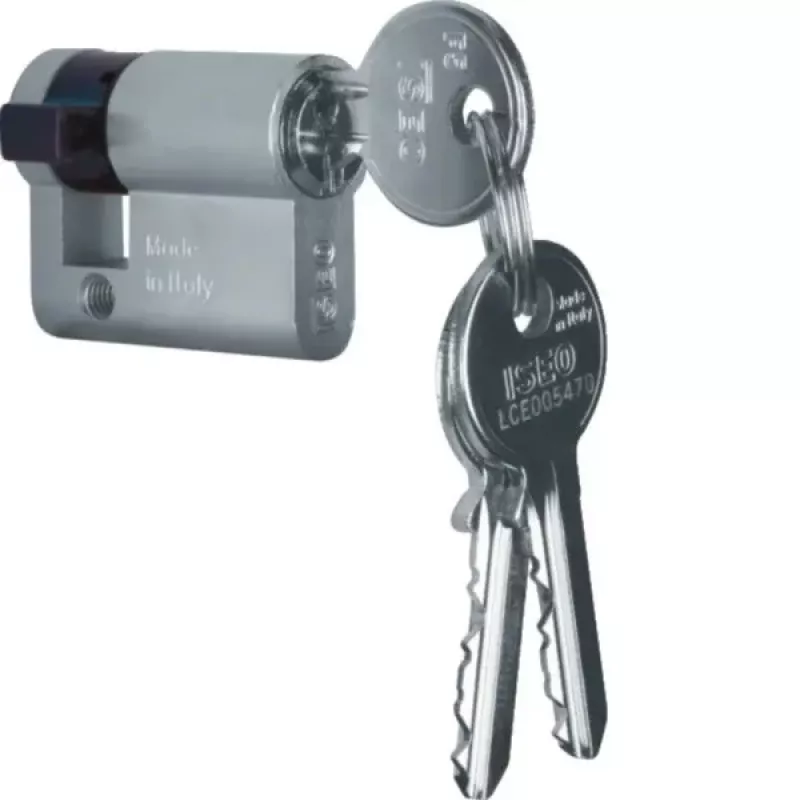

Hager WDA7172 profiilipuolisylinteri lisävaruste, 30/10 mm, nikkelöity messinki, 2 avainta

The Hager WDA7172 is a high-quality profile half-cylinder designed for use in control cabinets, switchgear, enclosures, and locking systems. Manufactured from durable brass with a nickel-plated finish, this cylinder offers reliable security and long-lasting performance. Supplied with two standard keys, it is suitable for a wide range of industrial and commercial applications.

Advantages

Robust brass construction with nickel plating ensures corrosion resistance and durability. The half-cylinder design allows for easy integration into existing Hager enclosures and standard profile cylinder cutouts. Key removal is possible in both locked and unlocked positions, providing flexibility in operation.

Suitable for

• Control cabinets and switchgear
• Enclosures and locking systems
• Industrial and commercial security applications

Key specifications

• Cylinder Type: Profile Half-Cylinder
• External Cylinder Length (A-dimension): 30 mm
• Cam Length (B-dimension): 10 mm
• Total Cylinder Length: 40 mm
• Material: Brass
• Finish: Nickel-plated
• Number of Keys Supplied: 2
• Key Type: Standard key
• Key Removal Position: Locked and unlocked
• Security Class: Standard
• Mounting Type: Screw-fixed
• Operating Temperature: -20 to +70 °C
• Protection Degree: IP20
• Standards: DIN 18252
• Keying: Different keying (standard)
• Function: Locking/Unlocking
• Colour: Silver
• Product Series: Hager WDA

Recommendations

For optimal security and compatibility, use this profile half-cylinder with Hager enclosures and standard profile cylinder cutouts. Ensure proper screw-fixed mounting for reliable operation.
