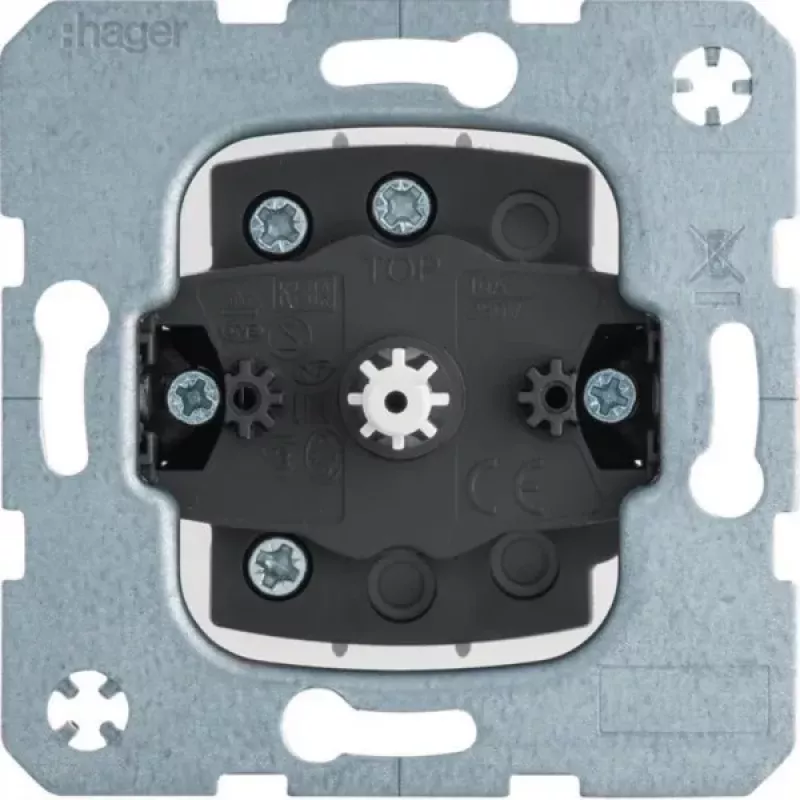

Hager WDE384103 kaihtimen kiertokytkin 1-napainen uppoasennus painike-/kiinnitystoiminto

The Hager WDE384103 is a high-quality Jalousie rotary switch designed for the precise control of blinds, shutters, and awnings. This 1-pole flush-mounted switch features a momentary/latching (Tastrast) function, allowing for both short impulse and continuous operation. Ideal for use with Hager central plates and frames from the Kallysto or Lumina series, it offers reliable performance and easy installation.

Advantages

Versatile control with 3 operating positions (Up, Stop, Down) for intuitive operation. The momentary/latching function provides flexibility for different blind types. Halogen-free thermoplastic material ensures durability and safety. Screw terminals guarantee secure and stable connections.

Suitable for

• Control of electric blinds and shutters
• Awning operation in residential and commercial buildings
• Integration into Hager Kallysto and Lumina switch ranges

Key specifications

• Switch Type: Jalousie Rotary Switch
• Functionality: Momentary/Latching (Tastrast)
• Number of Poles: 1-pole
• Mounting: Flush-mounted (Unterputz)
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Connection: Screw terminals
• Material: Thermoplastic, halogen-free
• Protection Class: IP20
• Operating Positions: 3 (Up, Stop, Down)
• Switching Principle: Changeover / Momentary
• Compatibility: Requires Hager central plate and frame (e.g., Kallysto, Lumina series)
• Series: Hager Kallysto / Lumina
• Number of Modules: 1 module

Recommendations

For optimal performance, pair this switch with a compatible Hager central plate and frame. Ensure proper flush-mounted installation by a qualified electrician. This switch is designed for indoor use only.
