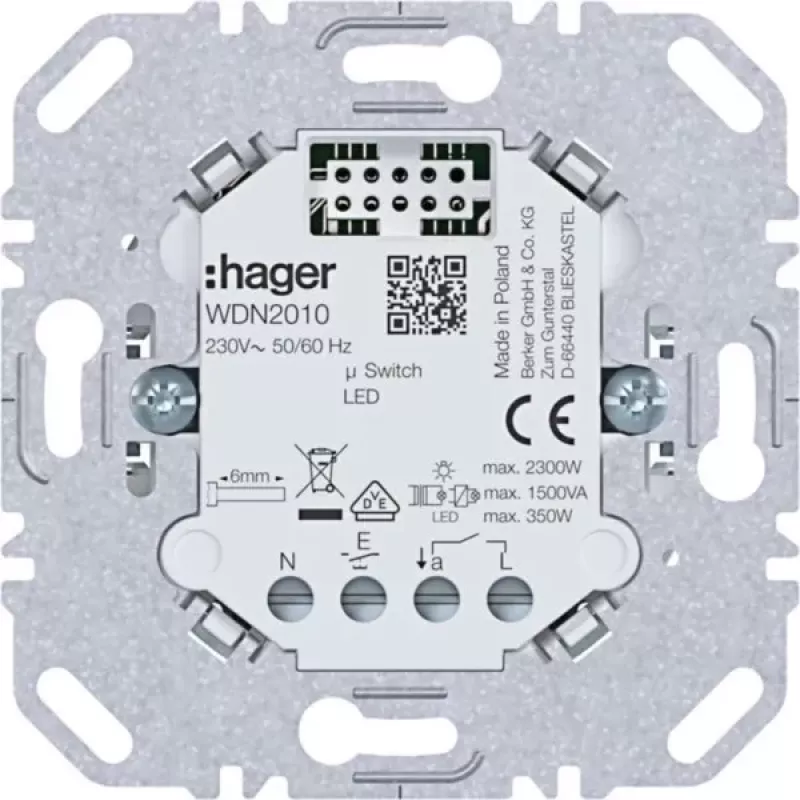

HAGER WDN2010 uppoasennus vaihtokytkinosa 1-osainen, 10A, valkoinen

When a standard switch fails or a renovation calls for a reliable switching mechanism, the HAGER WDN2010 provides a simple, robust solution. This flush-mounted insert is the core of a 1-gang two-way switch, ready to be paired with a compatible cover plate from the Hager range.

Who is it for

Electricians and installers working on residential or commercial wiring projects who need a dependable switching insert that integrates seamlessly with Hager switch ranges such as Kallysto and Systo.

Main features

• Two-way switching function for versatile light control.
• Rated at 10 A, 250 V AC for standard lighting circuits.
• Flush-mounted design for a clean, integrated look.
• Screw terminals ensure secure, durable connections.
• Halogen-free thermoplastic construction.

Specifications

• Switch type: Two-way switch
• Mounting type: Flush-mounted
• Rated current: 10 A
• Rated voltage: 250 V AC
• Number of gangs: 1
• Connection type: Screw terminals
• Material: Thermoplastic
• IP protection class: IP20
• Frequency: 50/60 Hz
• Operating temperature: -5 to +40 °C
• Halogen-free: Yes
• Number of terminals: 3
• Installation depth: 32 mm
• Compatibility: Hager switch ranges (e.g., Kallysto, Systo)
• Colour of mechanism: White

Tips

Pair this insert with a matching Hager cover plate and frame to complete the switch. Ensure the circuit is de-energised before installation and that the load does not exceed 10 A.
