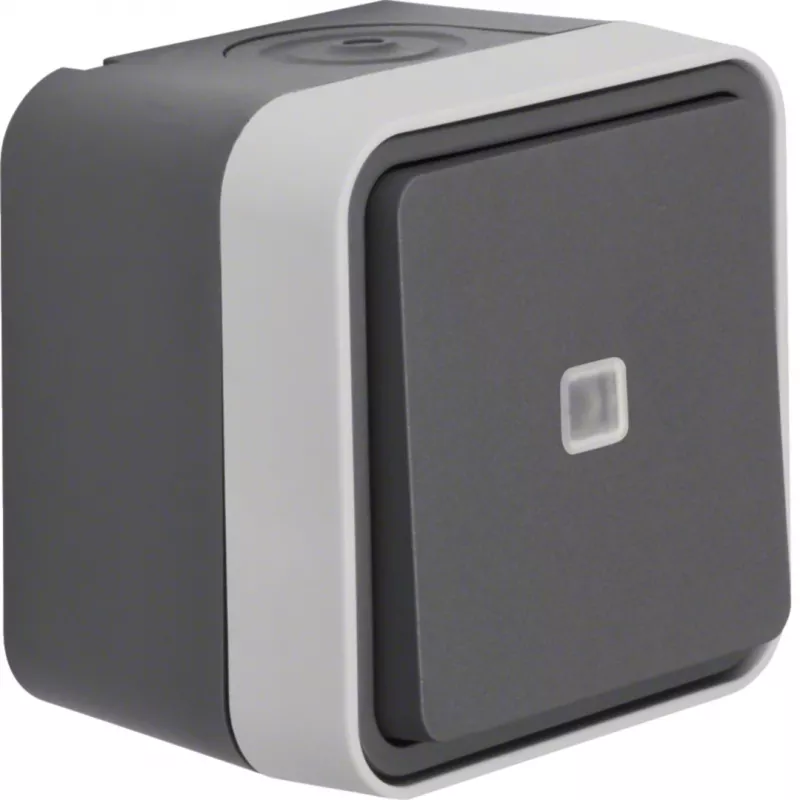

Hager WNC002 vaihtokytkin pinta-asennettava valaistu IP55 harmaa W.1-sarja

The Hager WNC002 is a robust two-way switch designed for surface mounting, featuring integrated illumination for easy identification in low-light conditions. Part of the Hager W.1 series, this switch offers reliable performance and durability with an IP55 rating, making it suitable for demanding environments.

Advantages

Illuminated rocker for visibility in darkness; IP55 protection against dust and water jets; UV-resistant and halogen-free thermoplastic housing; impact resistance IK07 for mechanical strength; screw terminals for secure wiring.

Suitable for

• Industrial and commercial installations requiring surface-mounted switches
• Outdoor or damp locations where IP55 protection is needed
• Staircases, corridors, and areas where illuminated switches are beneficial

Key specifications

• Switch type: Two-way (changeover)
• Mounting: Surface-mounted (AP)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Illumination: Yes (neon lamp)
• Colour: Grey
• IP rating: IP55
• Material: Thermoplastic, halogen-free
• Impact resistance: IK07
• Operating temperature: -25 to +45 °C
• Terminal capacity: 1.5 - 2.5 mm² (rigid)
• Dimensions (HxWxD): 58 x 58 x 58 mm (approx.)

Recommendations

For optimal performance, use with compatible Hager W.1 series accessories. Ensure proper sealing for outdoor installations.
