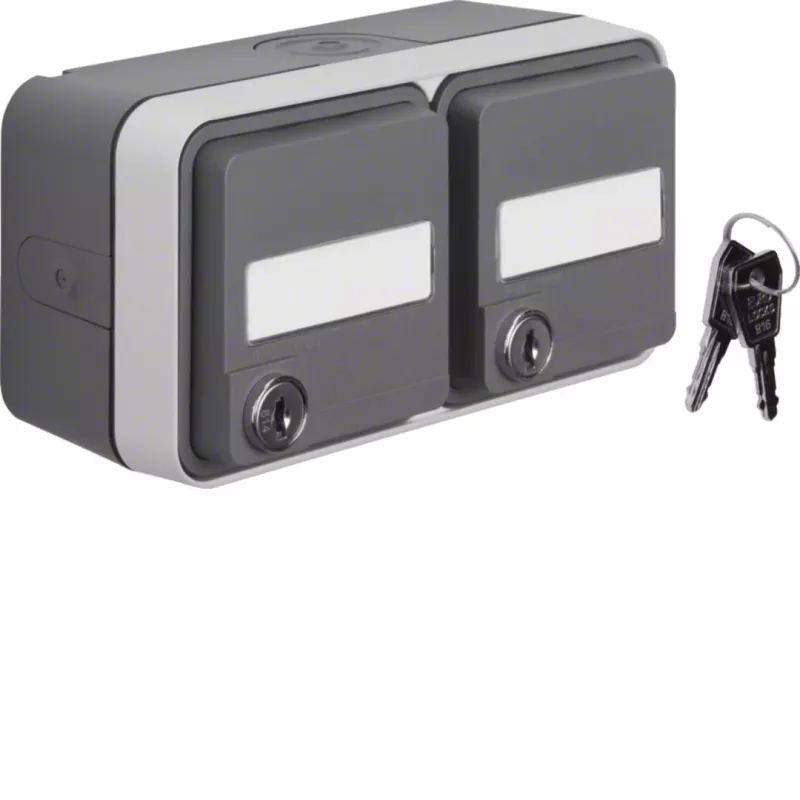

Hager WNC147 pinta-asennettava SCHUKO-pistorasia, 2-osainen, harmaa, IP44, kansi

IP44-rated surface-mounted SCHUKO socket outlet with two horizontally arranged sockets, hinged lid, and lockable cover for secure outdoor or damp environments.

Overview

The Hager WNC147 is a 2-gang SCHUKO socket outlet designed for surface mounting. It features a grey thermoplastic housing with a hinged lid that can be secured with a padlock (not included) and includes a labeling field for circuit identification. The socket is rated at 16 A, 250 V AC, and operates at 50/60 Hz. Connection is via screw terminals.

What stands out

• IP44 protection against splashing water
• Lockable hinged lid for added safety
• Halogen-free thermoplastic construction
• Impact resistance IK07
• Operating temperature range -25 °C to +40 °C

Technical details

• Socket type: SCHUKO (Type F)
• Sockets quantity: 2
• Mounting type: Surface-mounted
• Orientation: Horizontal
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: Grey
• Halogen-free: Yes
• Impact resistance: IK07
• Operating temperature: -25 to +40 °C

Our verdict

A robust and secure outdoor socket solution with IP44 protection and a lockable lid, ideal for garages, workshops, and damp locations.
