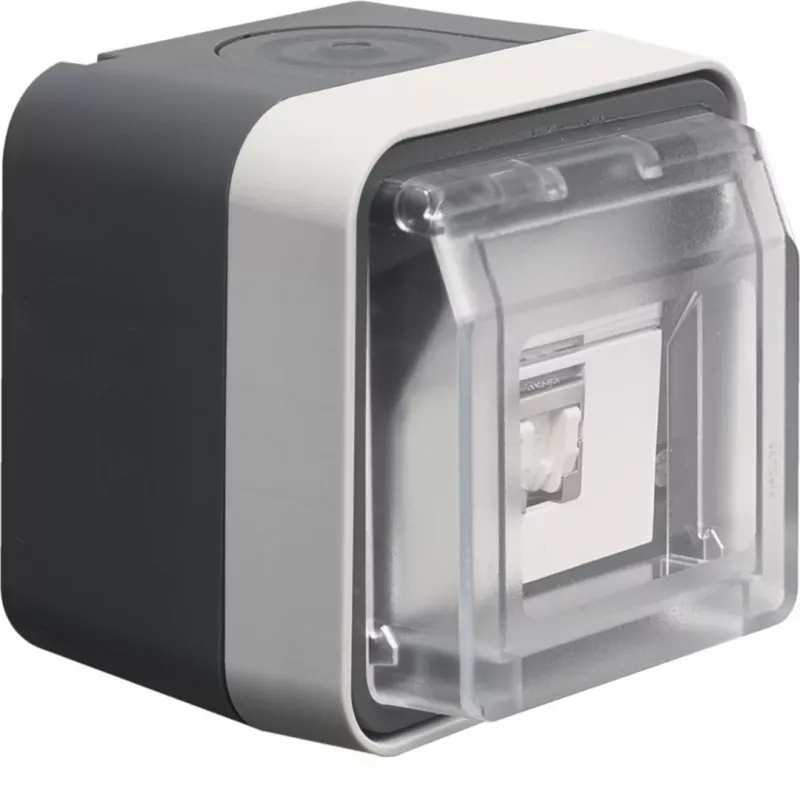

Hager WNC226 pinta-asennettava dataliitäntä, suojattu, Cat.6 RJ45, 8-napainen, IP55, harmaa, 1 portti

Flush-mounted sockets aren't always an option, and that's where the Hager WNC226 steps in. This surface-mounted data outlet brings rugged, dependable connectivity to workshops, basements, garages, and protected outdoor areas. Its fully shielded Cat.6 RJ45 connection and IP55-rated housing ensure reliable performance even in demanding environments.

Highlights

• Surface-mounted (AP) design for quick installation on walls or panels, no flush-mounting work required
• Category 6 performance with full shielding, supporting up to 1 Gigabit Ethernet and 250 MHz bandwidth
• IP55 ingress protection: dust-protected and resistant to water jets from any direction
• 8-pole (8P8C) RJ45 connector with LSA+ insulation displacement terminals for fast, tool-free termination
• Robust grey thermoplastic housing, halogen-free and UV-resistant for indoor and protected outdoor use

In daily use

This outlet excels in harsh conditions. The IP55 rating means it can withstand water jets and dust, making it suitable for utility rooms, workshops, and even protected outdoor areas. The shielded Cat.6 connection maintains signal integrity in electrically noisy environments, while the angled single port eases cable routing. Termination is straightforward with LSA+ IDC, and the surface-mount design allows installation on any flat surface.

Full specifications

• Product Type: Data Outlet / Network Socket
• Mounting Type: Surface-mounted
• Number of Ports: 1
• Connector Type: RJ45
• Wiring Configuration: 8-pole (8P8C)
• Cabling Standard: Category 6 (Cat.6)
• Shielding: Shielded
• Ingress Protection (IP) Rating: IP55
• Colour: Grey
• Termination Method: LSA+ (Insulation Displacement Connector - IDC)
• Design Series: Hager W.1
• Regional Compatibility: UAE (United Arab Emirates)
• Transmission Speed: Up to 1 Gigabit Ethernet (1000BASE-T)
• Frequency Range: Up to 250 MHz
• Housing Material: Thermoplastic
• Halogen-free: Yes
• UV Resistant: Yes
• Dust Protection: Yes (IP5x)
• Water Jet Protection: Yes (IPx5)

Final note

For reliable, weather-resistant network connections where flush mounting isn't possible, the Hager WNC226 delivers Cat.6 performance in a rugged, easy-to-install package.
