HAGER ZY32CEE universZ CEE laippapistorasia 32A 5-napainen 400V IP44 punainen

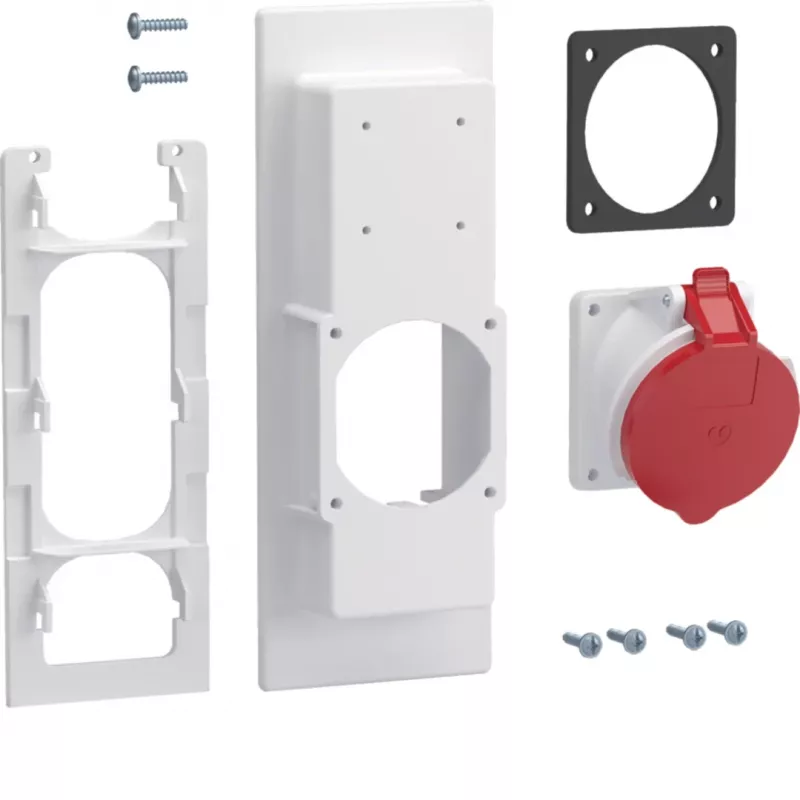

CEE flange socket for panel mounting, delivering a robust 32 A power connection with 5 poles (3P+N+PE) at 400 V. Its splash-proof IP44 housing and 6h clock position make it a reliable choice for industrial power distribution.

Advantages

The universZ series flange socket offers a secure screw terminal connection and a durable polyamide housing. The red colour coding ensures quick identification of the voltage and frequency rating.

Suitable for

• Industrial control panels
• Power distribution units
• Machinery requiring a 400 V 32 A supply

Key specifications

• Rated current: 32 A
• Number of poles: 5-pole (3P+N+PE)
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• IP rating: IP44
• Clock position: 6h
• Connection: screw terminals
• Mounting: flange mount
• Housing material: polyamide (PA)
• Flange dimensions: 75 x 75 mm
• Mounting hole spacing: 60 x 60 mm
• Installation depth: 70 mm
• Cable entry: rear
• Operating temperature: -25°C to +40°C

Recommendations

For a reliable and splash-proof 32 A connection, this HAGER flange socket meets IEC 60309 standards and is ideal for fixed installations.
