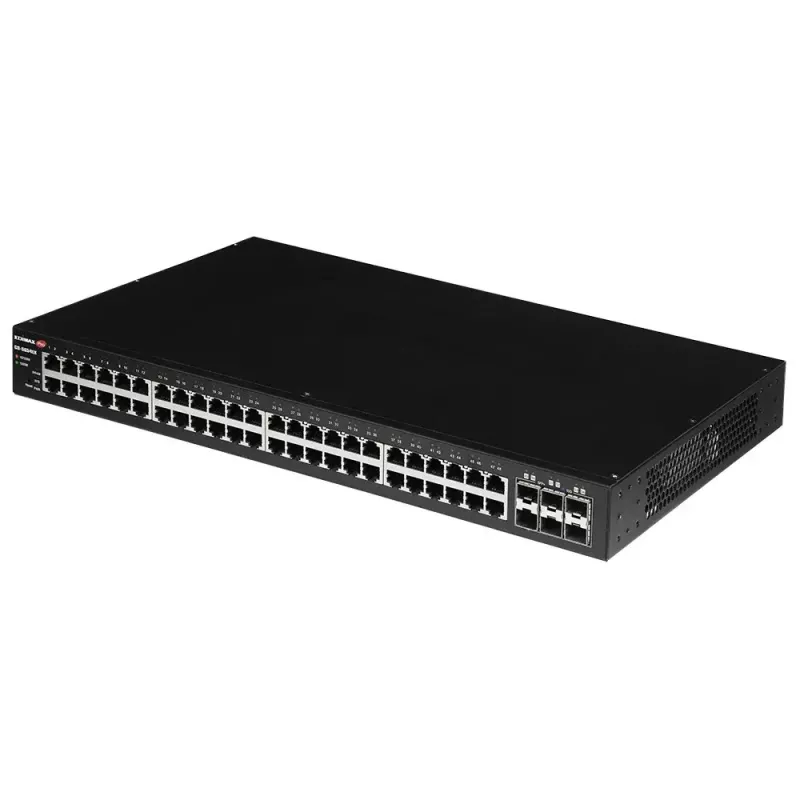

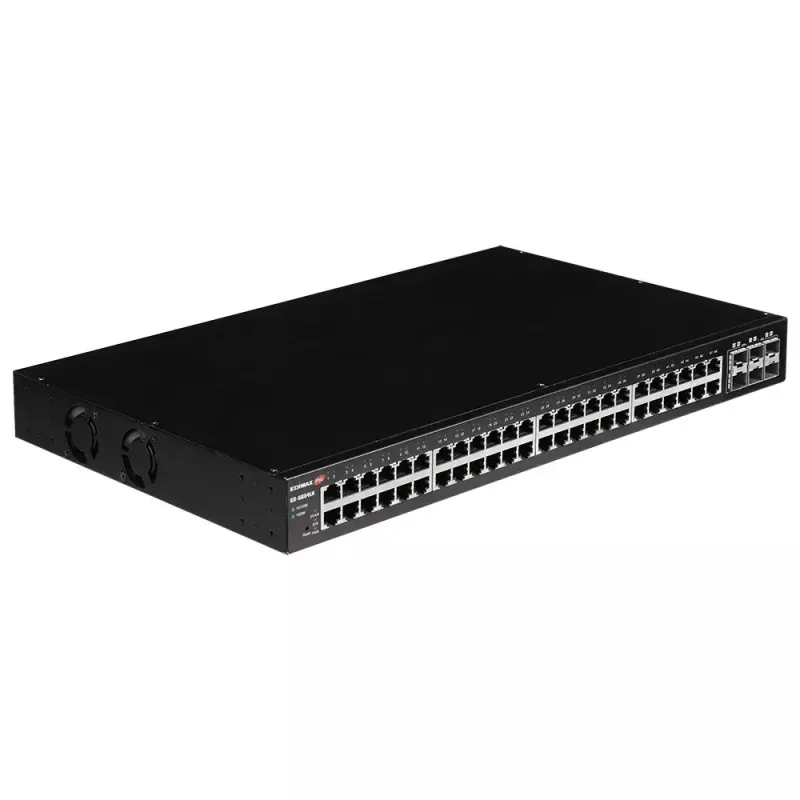

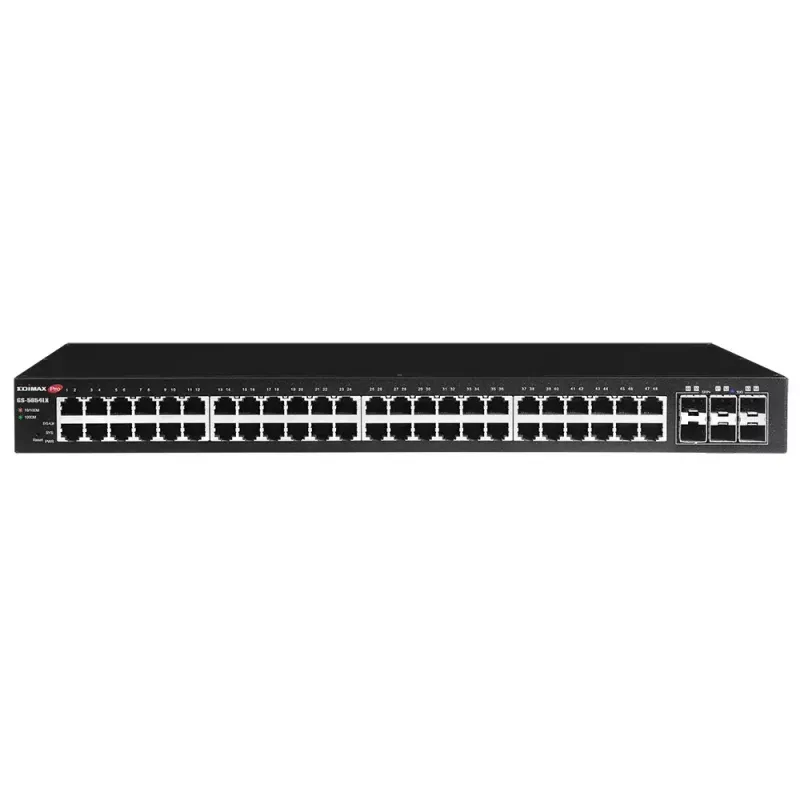

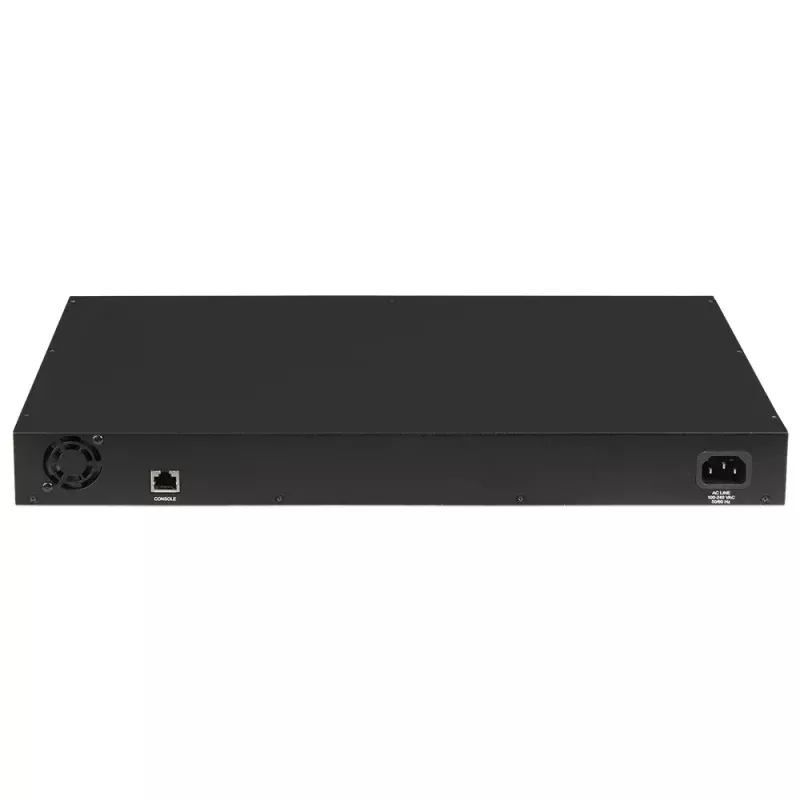

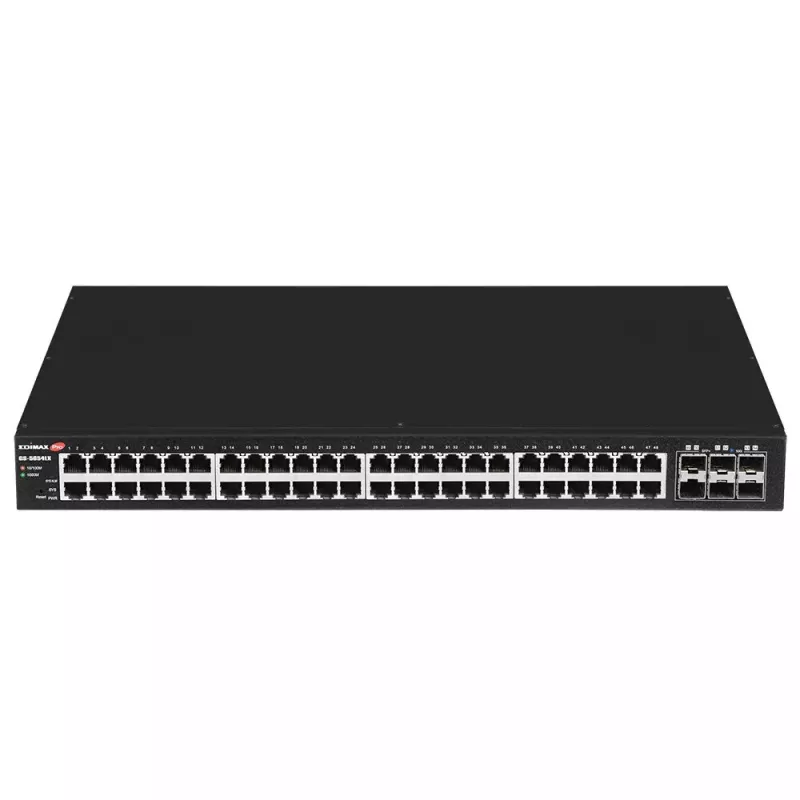

Hallittava kytkin Edimax GS-5654LX

The EDIMAX Managed Switch GS-5654LX is a 48-port Gigabit Ethernet switch with six 10GbE SFP+ uplink ports, a switching capacity of 216 Gbit/s and a MAC address table of 32,000 entries. Designed for managed network environments, it supports common IEEE networking standards (including 802.1Q VLAN, 802.1p QoS and 802.3ad link aggregation) and provides high-speed wired connectivity for offices, branches and remote workgroups.

Advantages

The GS-5654LX provides high port density with 48 Gigabit RJ-45 ports plus 6 SFP+ ports for 10GbE uplinks, enabling up to 60 Gbps of fiber uplink capacity. As a managed switch, it supports VLANs, QoS, link aggregation and other IEEE standards for efficient traffic management. An intelligent thermal-control microchip adjusts fan speeds and can power fans on or off to reduce noise and save energy. The unit’s black metal housing and managed features make it suitable for enterprise and retail deployments.

Suitable for

• Office network backbone and aggregation
• Branch offices and retail locations with central uplinks
• IP surveillance, video conferencing and large file transfers
• Environments requiring VLANs, QoS and link aggregation

Key specifications

• Ports: 48 x Gigabit RJ-45 (10/100/1000) + 6 x SFP+ (10GbE)
• Switching capacity: 216 Gbit/s
• MAC address table: 32,000 entries
• Supported standards: IEEE 802.1D, 802.1Q, 802.1ab, 802.1ad, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3u, 802.3x, 802.3z
• Weight: 4.05 kg
• Colour: Black

How to use

Install the GS-5654LX in a standard rack or on a flat surface and connect network devices to the 48 Gigabit RJ-45 ports. Use the 6 SFP+ ports to connect 10GbE uplinks to servers, aggregation switches or fiber distribution. Access the web-based management interface to configure VLANs, QoS policies, link aggregation and other managed features. Monitor device status and adjust thermal control or fan settings through the management console.

Recommendations

Place the switch in a ventilated environment and leave space for airflow. When connecting high-bandwidth uplinks, verify SFP+ module compatibility. Configure VLANs and QoS before deployment to segment traffic and prioritise critical services such as IP surveillance and VoIP.
