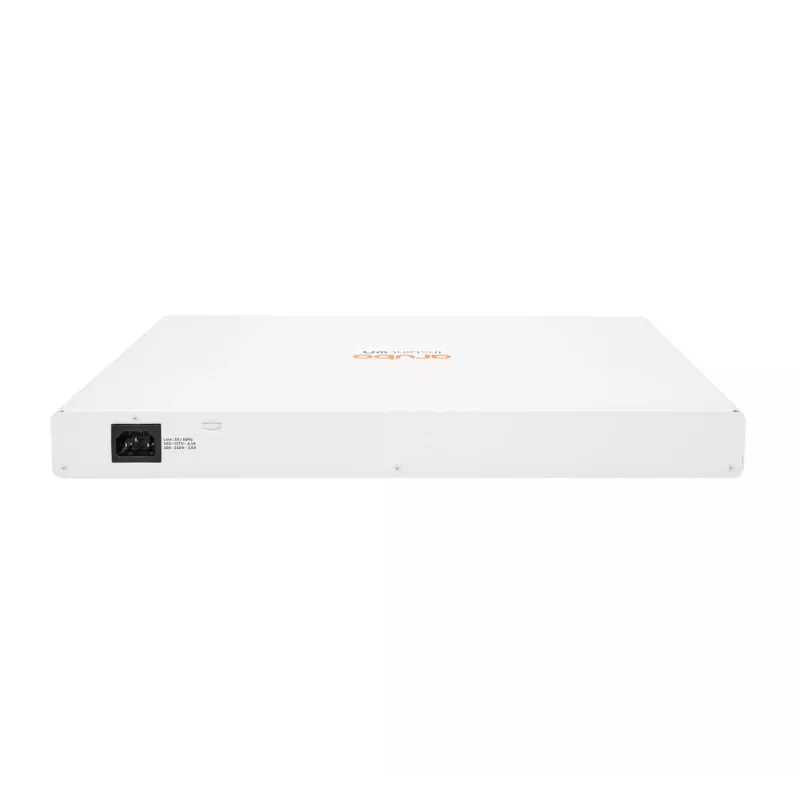

Hallittava kytkin HPE Aruba Instant On 1960 8p 1G PoE 480W

The Managed Switch HPE Aruba Instant On 1960 8p 1G PoE 480W is a smart-managed, fixed-configuration Gigabit switch designed for small and growing businesses. It provides eight Gigabit RJ-45 ports with Power over Ethernet (PoE) support and includes 10GbE uplink capability for high-bandwidth connections. The switch supports both local web GUI management and cloud-based management via the Instant On mobile app and web portal, and it can be stacked with other 1960 series units to simplify administration.

Advantages

This Aruba Instant On 1960 model delivers a combination of Gigabit access ports and 10GbE uplinks for reliable connectivity, with a 480W PoE power budget to power access points, VoIP phones and cameras. It supports managed features such as VLANs, Access Control Lists and 802.1X authentication for better network segmentation and security. Cloud-managed stacking and automatic member discovery reduce deployment time and allow centralized management of multiple switches through one interface.

Suitable for

• Small offices and branch locations requiring power and data over the same cable
• Networks with voice and video conferencing needs
• Environments that need secure access control and VLAN segmentation
• Deployments that may scale by stacking up to four Aruba Instant On 1960 switches

Key specifications

• Model: HPE Aruba Instant On 1960 8p 1G PoE 480W (MPN: S0F35A#ABB)
• Ports: 8 x Gigabit RJ-45 (10/100/1000) with PoE
• PoE budget: 480 W
• 10G support: Yes (four 10GbE uplinks across the 1960 series)
• Switching capacity: 116 Gbit/s
• Management: Local web GUI, Instant On mobile app, cloud web portal
• Weight: 5.24 kg
• Standards: IEEE 802.1Q, 802.1X, 802.3af/at/bt, 802.3ab, 802.3an and others

How to use

Mount the switch in a rack or place it on a stable surface, connect devices to the eight Gigabit RJ-45 ports using Category 5e/6/6a cabling, and connect uplinks to servers or aggregation switches using the available 10GbE ports. Power the switch and choose the preferred management mode: configure locally via the web GUI or register the device in the Instant On cloud to manage it through the mobile app or web portal. For stacking, follow the Instant On guidelines to connect up to four 1960 switches and allow the mobile app to detect and register stack members.

Recommendations

Use Cat6a cabling for 10GBASE-T uplinks to achieve full 10GbE performance up to 100 meters. Allocate PoE power according to connected device classes (up to 30W for Class 4 devices, up to 60W for Class 6 where supported) and monitor power budget when deploying multiple PoE devices. Use VLANs and 802.1X authentication to separate traffic and control user access.
