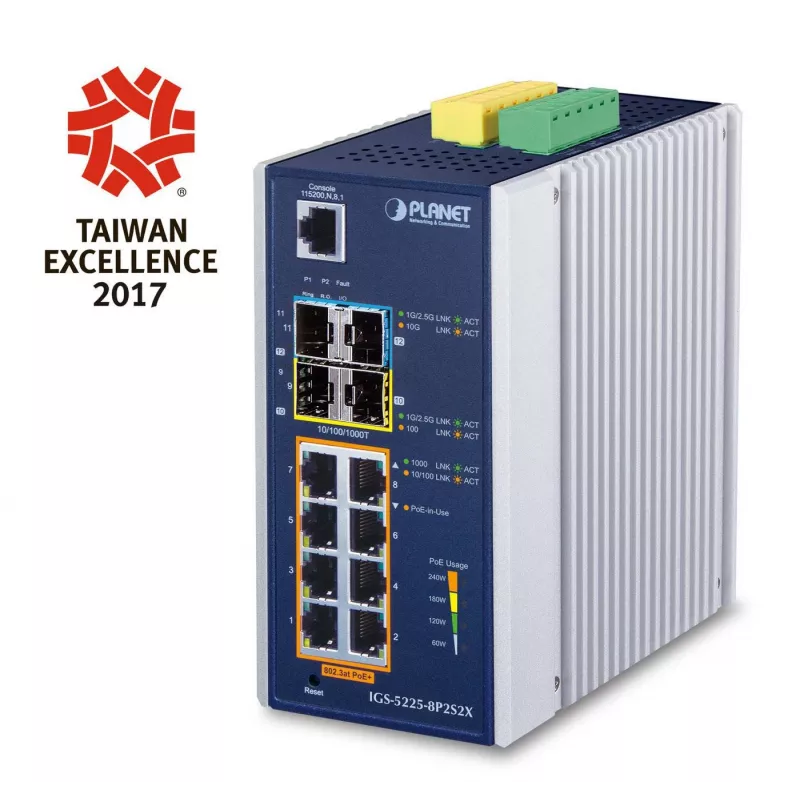

Hallittava Layer-3 Gigabit Ethernet -kytkin PLANET IGS-5225-8P2S2X

PLANET IGS-5225-8P2S2X is a compact managed Layer 3 Gigabit Ethernet switch with 8 Gigabit RJ-45 ports providing IEEE 802.3at PoE+ (up to 36 W per port) and two 10Gbps SFP+ uplink slots. Designed for industrial environments, it delivers 10G uplink capacity, a 66 Gbit/s switching capacity, and supports IPv4/IPv6 software VLAN routing for flexible network segmentation and management. The switch comes in an IP30 metal enclosure, supports DIN-rail or wall mounting and operates from a 48–56 V DC input across a wide temperature range for reliable use in harsh sites.

Advantages

The IGS-5225-8P2S2X combines high-bandwidth 10G uplinks with Layer 3 routing and advanced cybersecurity features such as SSH/TLS/SSL upgrades, DHCP Snooping, IP Source Guard and ARP inspection. It provides fast ring recovery (ITU-T G.8032 ERPS) with recoveries as low as 10 ms, intelligent PoE monitoring LEDs and PD alive-check with automatic power recycle, plus scheduled PoE and reboot functions for energy saving and device stability. Additional features include ONVIF device discovery, SFP DDM diagnostics, IEEE 1588 timing support and Modbus TCP for integration with factory automation systems.

Suitable for

• Industrial Ethernet networks and factory floor automation
• PoE deployments such as 11ac Gigabit Wi‑Fi APs, IP cameras and wireless APs
• Edge switches with 10G uplink to core or monitoring centers
• Carrier Ethernet and telecom timing applications (IEEE 1588)

Key specifications

• Ports: 8 × Gigabit RJ-45 (PoE+), 2 × 10Gbps SFP+ uplinks
• PoE: IEEE 802.3at PoE+, 36 W per port; front-panel LEDs indicate total PoE usage (60/120/180/240 W)
• Switching capacity: 66 Gbit/s; MAC table: 32,000 entries
• Management: Layer 2–4 features, L3 IPv4/IPv6 software VLAN routing, Web/console/SNMPv3/Telnet
• Security: DHCP Snooping, IP Source Guard, ARP inspection, 802.1x, RADIUS, TACACS+, ACLs
• Ruggedness: IP30 metal case, DIN-rail or wall mount, operating temperature −40 to 75 °C
• Power input: DC 48–56 V; weight: 1.684 kg
• Standards: IEEE 1588v2, IEEE 802.1Q, 802.3az/af/at/z and others as listed by the manufacturer

How to use

Install the IGS-5225-8P2S2X on a DIN-rail or wall mount in a suitable enclosure, connect DC 48–56 V power sources and link uplinks via SFP/SFP+ transceivers chosen for the required distance and speed. Connect PoE devices to the Gigabit ports; monitor PoE consumption via front-panel LEDs and configure PoE schedules, scheduled power recycling and alive-check in the web GUI. Use the web interface, console or SNMPv3 for VLAN routing, security policies, ring protection and diagnostics such as SFP DDM and ONVIF device detection.

Recommendations

The switch is intended for industrial and enterprise edge deployments; choose compatible SFP/SFP+ modules for the required reach, enable PoE scheduling to reduce energy consumption, and configure ERPS or MSTP for ring redundancy. For secure remote management, use SNMPv3 or encrypted management protocols and enable DHCP Snooping/IP Source Guard/ARP inspection to minimize spoofing and unauthorized access.
