HANWHA 2MP IR mini dome-kamera - 3,6mm kiinteä polttoväli - 1080p - IP66 - IK10 - PoE

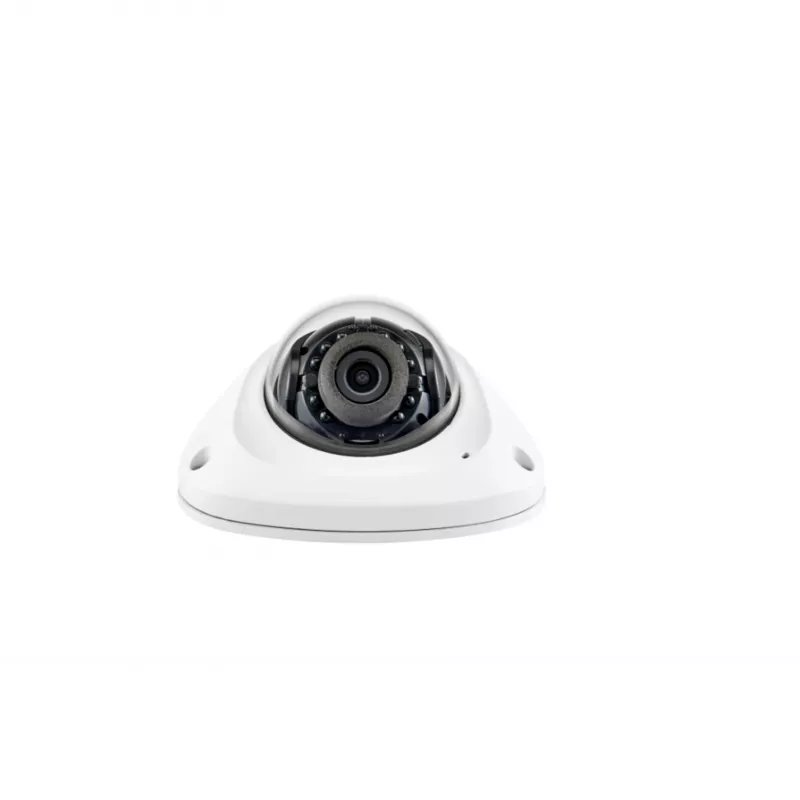

The HANWHA ANV-L6023R is a high-performance 2MP mini dome camera designed for reliable 24/7 surveillance in demanding environments. Featuring a 1/2.8-inch CMOS sensor, it delivers crisp Full HD 1080p video at 30fps. With built-in infrared LEDs providing up to 20m of night vision, IP66 weatherproof and IK10 vandal-resistant housing, this camera is ideal for both indoor and outdoor security applications.

Advantages

Exceptional image quality with 120dB Wide Dynamic Range ensures clear footage in challenging lighting conditions. The fixed 3.6mm lens offers a wide 87.6° horizontal field of view, perfect for monitoring corridors, entrances, and open areas. Power over Ethernet (PoE) simplifies installation by combining power and data over a single cable, reducing costs and complexity.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics facilities
• Parking garages and outdoor perimeters
• Educational institutions and hospitals

Key specifications

• Image Sensor: 1/2.8" 2MP CMOS
• Max Resolution: 1920 x 1080 (Full HD)
• Frame Rate: 30fps @ 2MP
• Lens: Fixed 3.6mm, FOV H: 87.6°, V: 46.4°
• Day/Night: Auto ICR, Color, B/W, External, Schedule
• IR Range: 20m (65ft)
• Video Compression: H.265, H.264, MJPEG
• WDR: 120dB
• Noise Reduction: SSNR (2D+3D)
• Power: PoE (IEEE802.3af, Class 2), 12V DC
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Local Storage: Micro SD/SDHC/SDXC up to 256GB
• Network: RJ-45 10/100BASE-T
• Operating Temperature: -20°C to +55°C
• Form Factor: Mini Dome
• Analytics: Motion detection, Tampering, Defocus, Virtual line, Enter/Exit, Loitering

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE802.3af. The camera supports H.265 compression to save bandwidth and storage. Pair with HANWHA's Wisenet WAVE VMS for advanced video management and analytics.
