HANWHA VISION SBP-390WM2 seinäkiinnike dome-kameroille, alumiini, norsunluu

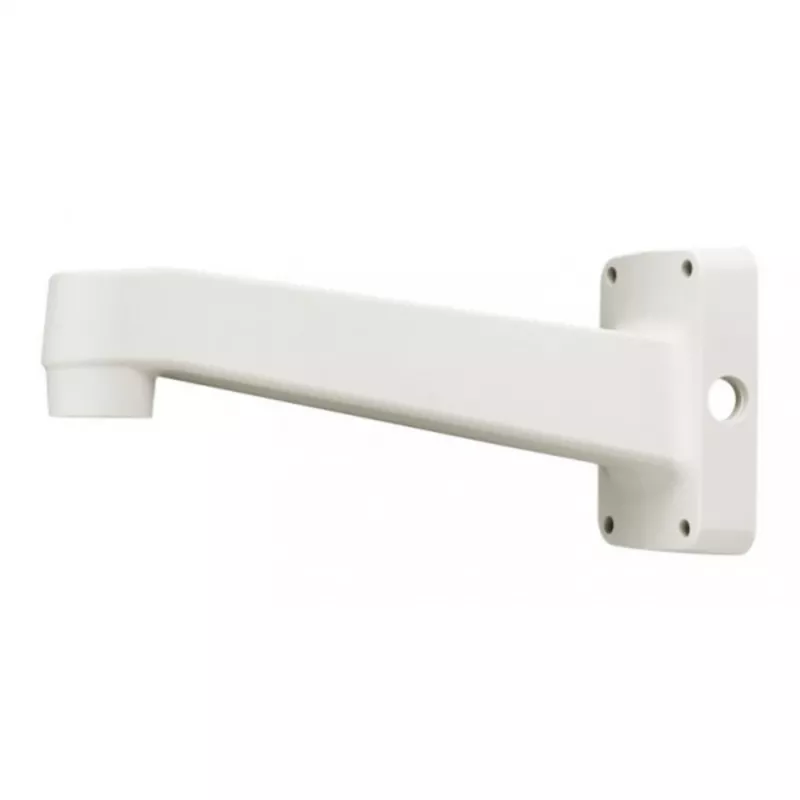

The HANWHA VISION SBP-390WM2 is a robust wall mount bracket designed for Hanwha Techwin dome cameras. Crafted from high-quality aluminium with an ivory powder-coated finish, this bracket ensures durability and corrosion resistance for outdoor use. It features internal cable routing for a clean installation and supports a maximum load of 10 kg.

Advantages

This wall mount bracket offers a secure and reliable mounting solution for surveillance cameras. Its long arm design provides optimal positioning, while the aluminium construction guarantees long-lasting performance in harsh environments. The internal cable management keeps cables organized and protected.

Suitable for

• Hanwha Techwin dome cameras including models SBP-317HM, SBP-329HM, SBP-276HM, SBP-300HM6, SBP-201HM, SBP-300PM, SBP-300KM, PNM-9080VQ, PNM-9081VQ, and others
• Outdoor surveillance installations requiring a durable and weather-resistant mount

Key specifications

• Product Type: Wall Mount Bracket
• Material: Aluminium
• Colour: Ivory
• Mounting Location: Wall
• Maximum Load Capacity: 10 kg
• Cable Management: Internal cable routing
• Operating Temperature: -50°C to 60°C
• Environmental Suitability: Outdoor
• Finish: Powder Coated
• Dimensions (W x H x D): 115 mm x 417.3 mm x 115 mm
• Weight: 1.1 kg
• Mounting Arm Type: Long Arm
• Corrosion Resistance: Yes

Recommendations

For best results, ensure the mounting surface is solid and capable of supporting the bracket and camera weight. Use appropriate hardware for installation.
