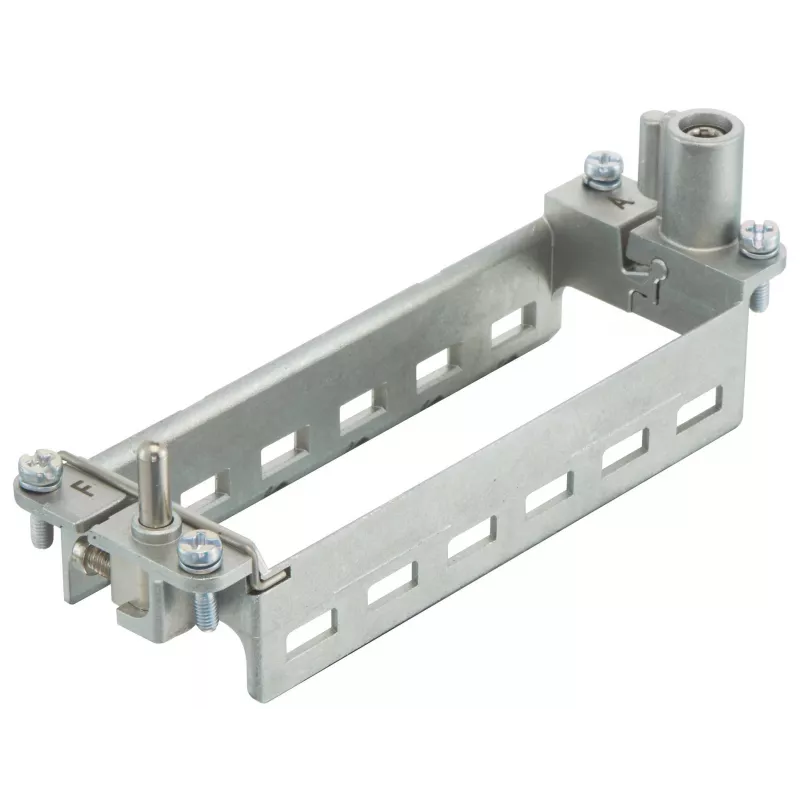

Harting Han-Modular Klapprahmen Plus 6-osainen moduulikehys alumiinivalusta 09140240361

Industrial modular connector frame with six module slots, engineered for robust integration into Harting Han-Modular® housings. Its hinged design simplifies assembly and maintenance, while the die-cast aluminium body with powder coating ensures durability in harsh environments.

Advantages

The hinged frame allows quick access to inserted modules, reducing installation time. The locking lever guarantees secure mating, and the pebble grey RAL 7032 finish resists corrosion and wear. Operating from -40 °C to +125 °C, it withstands extreme industrial conditions.

Suitable for

• Industrial automation and control cabinets
• Modular connector systems requiring flexible configuration
• Applications demanding IP65/IP67 protection when assembled with appropriate housings
• Environments with high vibration or temperature fluctuations

Key specifications

• Product type: Hinged frame
• Series: Han-Modular®
• Number of module slots: 6
• Material: Die-cast aluminium, powder-coated
• Colour: RAL 7032 (pebble grey)
• Locking mechanism: Locking lever
• Operating temperature range: -40 °C to +125 °C
• Compliance: RoHS, REACH; Approvals: UL, CSA, DNV GL

Recommendations

For reliable modular connections in demanding industrial settings, pair this frame with compatible Han-Modular® inserts and housings to achieve IP65/IP67 protection.
