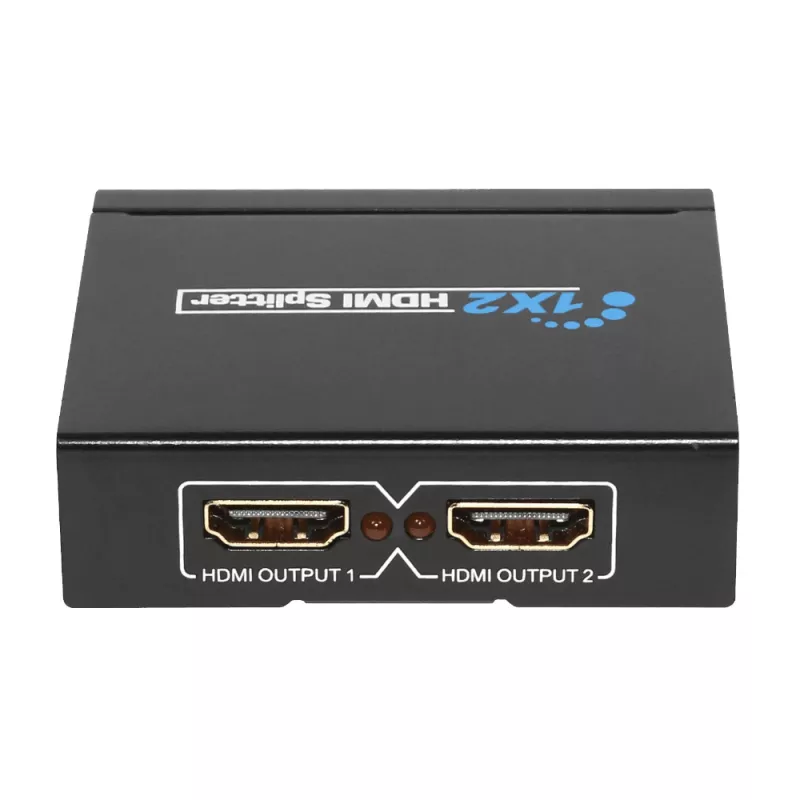

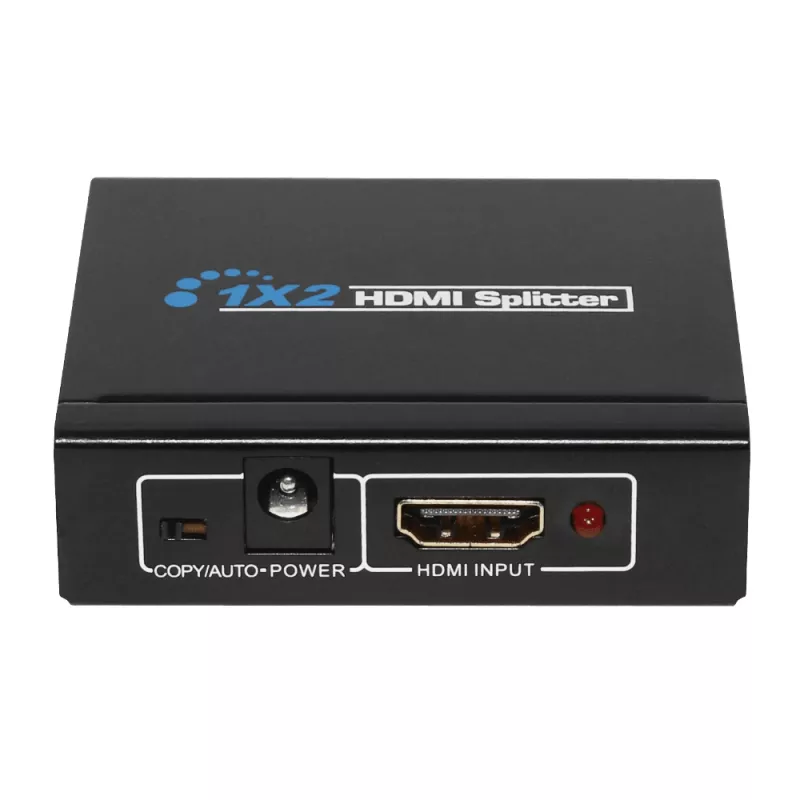

HDCVT 1x2 HDMI 1.4 -jakaja HDCP 1.4- ja EDID-tuella

When a single HDMI source needs to feed two displays simultaneously—whether in a conference room, classroom, or home theater—signal degradation and compatibility issues often arise. The HDCVT HDV-9812 1x2 HDMI 1.4 Splitter eliminates these obstacles by duplicating one HDMI input to two outputs without loss, supporting HDCP 1.4 and automatic EDID management for seamless handshakes. Its robust metal housing and broad resolution support make it a dependable link in any AV chain.

Who is it for

This splitter is ideal for AV integrators, IT administrators, and home users who need to mirror content from a single source—such as a media player, set-top box, or PC—to two displays. It suits digital signage, training rooms, retail displays, and residential setups where identical high-definition video and audio must appear on multiple screens.

Main features

• Distributes one HDMI source to two HDMI displays simultaneously
• Supports HDMI 1.4 and HDCP 1.4 for compatibility with modern devices
• Automatic EDID management ensures optimal resolution and audio format negotiation
• Handles resolutions up to 4K (3840x2160) at 30Hz and 1080p at 60Hz
• 10.2 Gbps video bandwidth with 8/10/12-bit deep color support
• Passes through high-definition audio formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD
• Durable metal casing for effective heat dissipation and longevity
• Plug-and-play operation with LED indicators for power and port status
• Supports long cable runs: up to 15m input and 25m output with AWG26 HDMI cables

Specifications

• HDMI Version: 1.4
• HDCP Version: 1.4
• Input: 1x HDMI Type A Female
• Output: 2x HDMI Type A Female
• Maximum Resolution: 4K (3840x2160) @ 30Hz, 1080p @ 60Hz
• Video Bandwidth: 10.2 Gbps
• Color Depth: 8/10/12-bit Deep Color
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD
• EDID Management: Automatic
• Power Supply: DC 5V/1A (adapter included)
• Input Cable Length (Max): 15m (AWG26 HDMI standard cable)
• Output Cable Length (Max): 25m (AWG26 HDMI standard cable)
• Housing Material: Metal
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• Relative Humidity: 5% to 90% RH (non-condensing)
• LED Indicators: Power, Input, Output Status
• Plug and Play: Yes

Tips

For reliable 4K performance, use high-quality HDMI cables that meet the specified length limits. Ensure both displays support the same resolution or rely on the automatic EDID to negotiate a common format. The metal housing aids cooling, but keep the unit in a well-ventilated area. The included 5V/1A power adapter is required for stable operation—do not attempt to power the splitter via HDMI alone.
