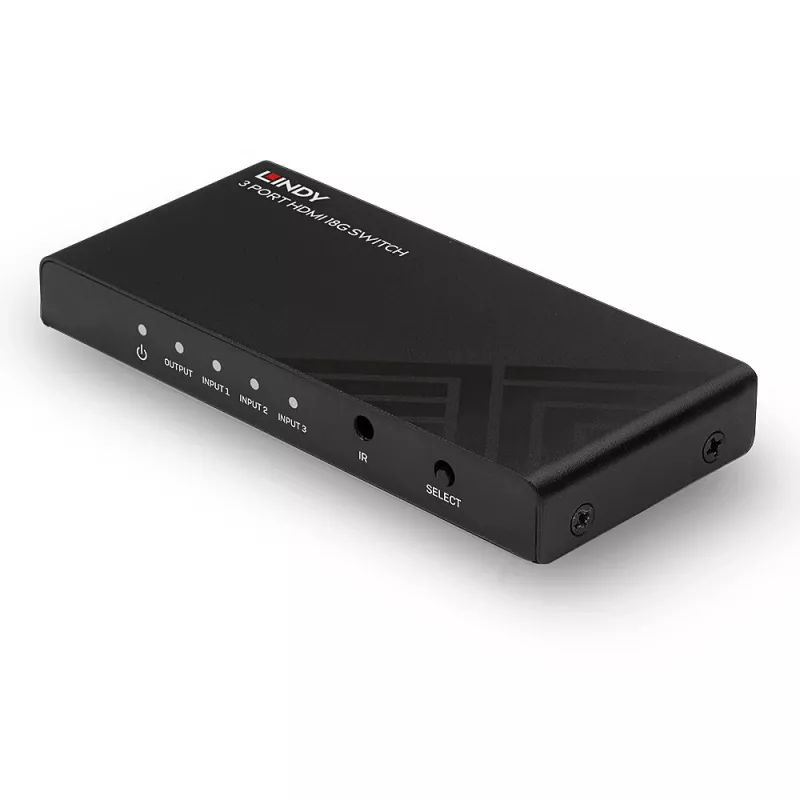

Lindy 3 portin HDMI 18G -kytkin

The Lindy 3 Port HDMI 18G switch is a compact, high‑quality device for connecting up to three HDMI source devices to a single display. Supporting HDMI 18G bandwidth, the switch transmits 4K Ultra HD resolutions and offers HDR compatibility for improved contrast and a wider colour gamut. HDCP 2.2 support guarantees compatibility with protected 4K content from devices such as set‑top boxes, Blu‑Ray players and 4K HDR media players.

Advantages

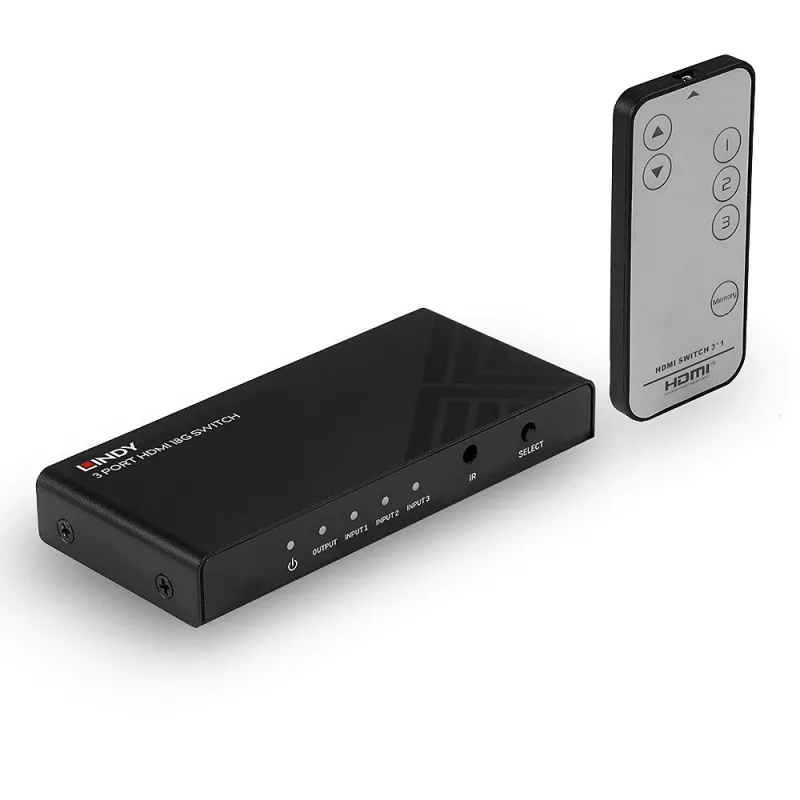

The switch provides easy selection between three inputs via front‑panel push buttons or the supplied IR remote. Auto‑switching detects and selects the active HDMI source when a device becomes available, which is useful when the switch is hidden from view. Its compact form factor makes it suitable for residential AV setups, retail digital signage and presentation environments.

Key specifications

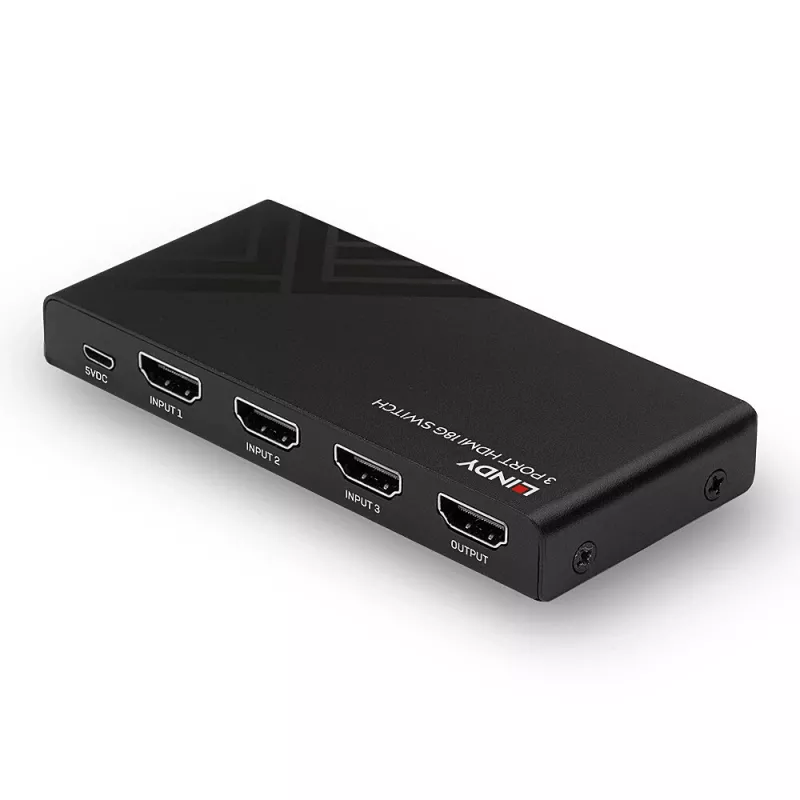

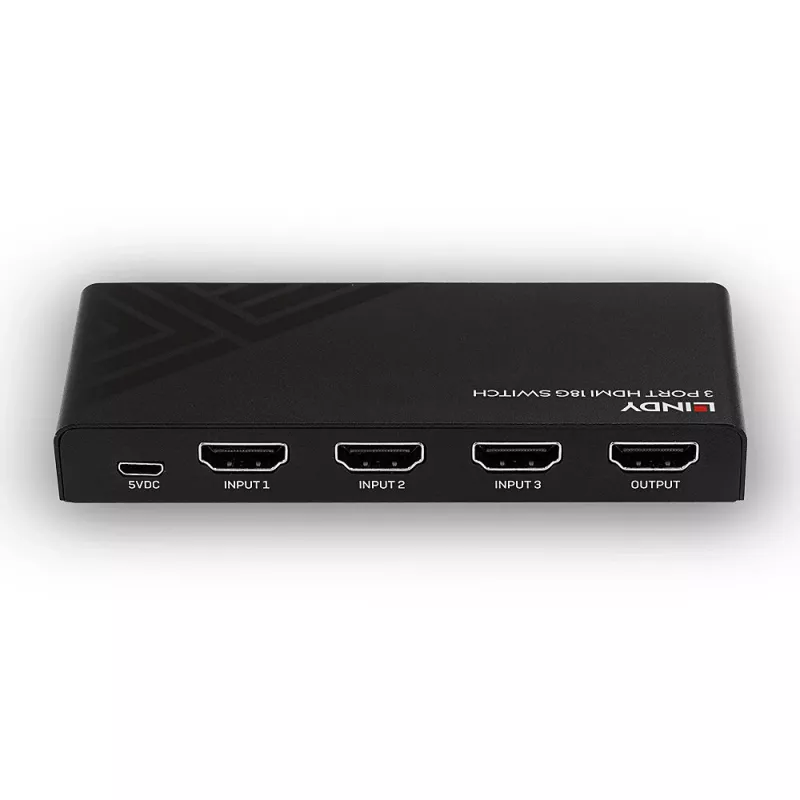

• Inputs: 3 × HDMI
• Output: 1 × HDMI
• Bandwidth: HDMI 18G (18 Gbps)
• Resolution support: up to 4K Ultra HD
• HDR: supported
• HDCP: 2.2 compatible
• Control: front push buttons and IR remote
• Auto‑switching: detects active source

How to use

Connect up to three HDMI source devices to the input ports and connect the output port to a single display. Use the front‑panel buttons or the supplied IR remote to switch between sources. When enabled, the auto‑switching function will select the active source automatically. Ensure source devices and the display are powered on and that HDMI cables are fully inserted for reliable operation.

Recommendations

For optimal performance use high‑quality HDMI cables rated for 18 Gbps and ensure connected devices support 4K/HDR where required. Place the switch in a ventilated area and keep the IR receiver visible if remote control will be used frequently.
