HDMI AOC hybridikuituyhteyskaapeli Digitus AK-330126-300-S

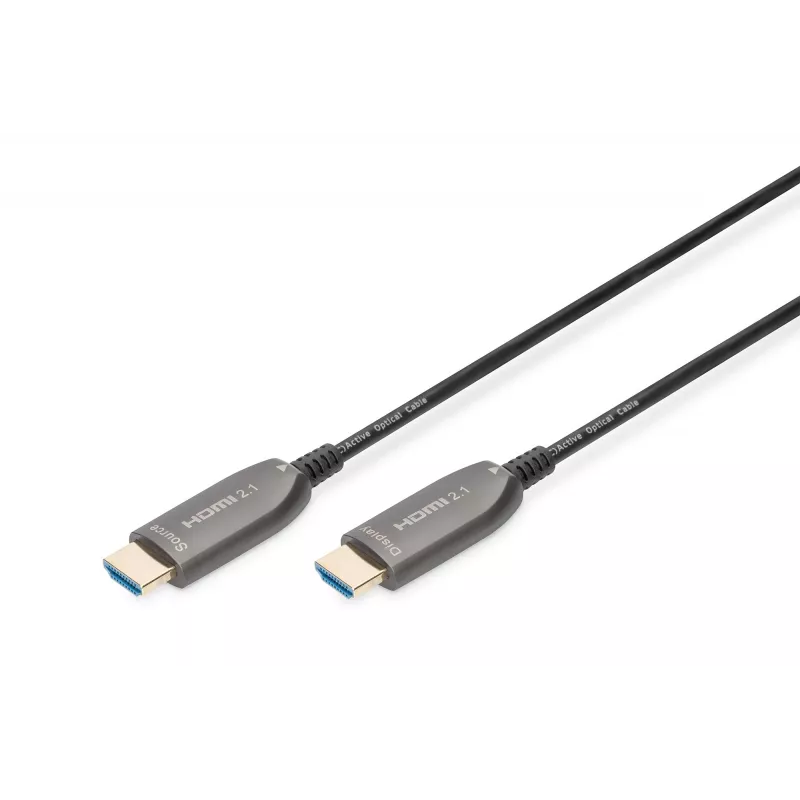

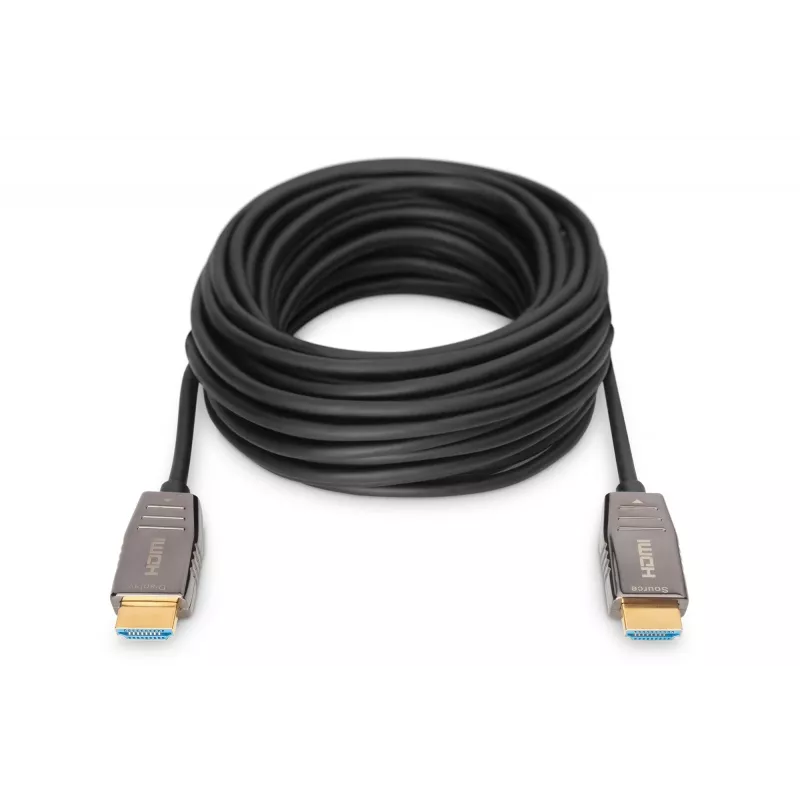

The Digitus HDMI AOC Hybrid Fiber Optic Cable AK-330126-300-S transmits uncompressed HDMI video and audio signals up to UHD 8K@60Hz with a bandwidth of 48 Gbit/s over a 30 m length. The hybrid construction combines fiber and copper cores to keep the cable diameter small (OD 4.8 mm) while preventing electromagnetic interference, and the cable supports HDMI 2.1 features including HDR, HDCP 2.2, EDID, CEC and ARC.

Advantages

This active hybrid AOC cable delivers loss-free, zero-frame-delay transmission at high data rates and supports resolutions up to 8K@60Hz. The fiber optic element enables a very tight bending radius (20 mm) and low weight with a compact outer diameter, while the copper cores maintain control and compatibility for features such as CEC and ARC. Gold-plated HDMI Type A connectors and support for HDR, HDCP 2.2, DTS-HD Master Audio and Dolby TrueHD ensure broad device compatibility and high-quality audio/video transfer.

Suitable for

• Connecting 8K-capable TVs and AV receivers at distances up to 30 m
• Conference rooms and meeting spaces requiring high-bandwidth video distribution
• Home theatres and media rooms where compact, flexible cabling is needed
• Installation runs inside buildings where EMI immunity is required

Key specifications

• Model: Digitus AK-330126-300-S
• Length: 30 m
• Bandwidth: 48 Gbit/s
• Supported resolution: up to 8K@60Hz (7680 x 4320)

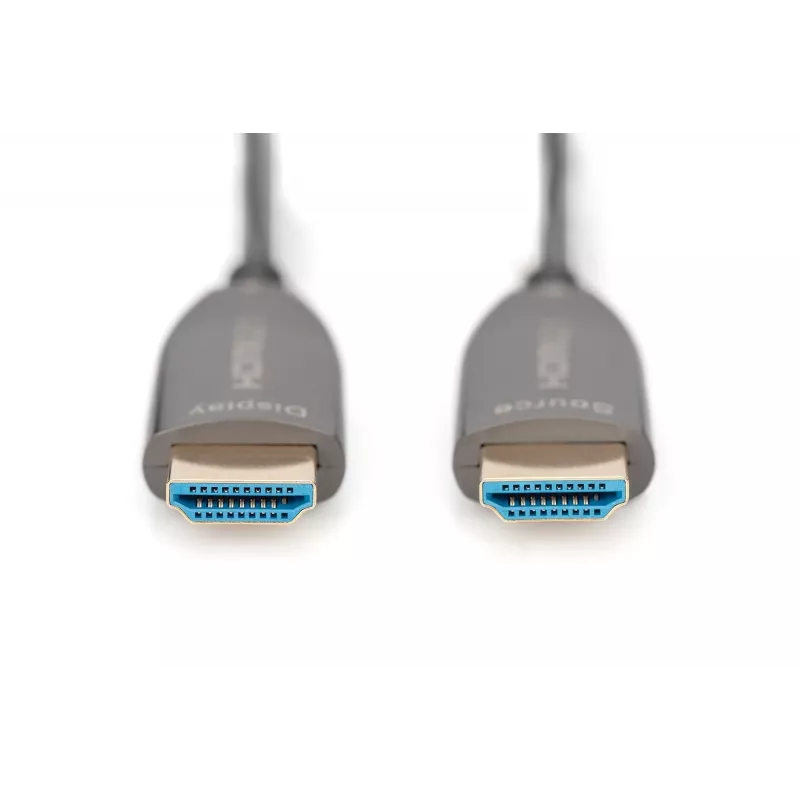

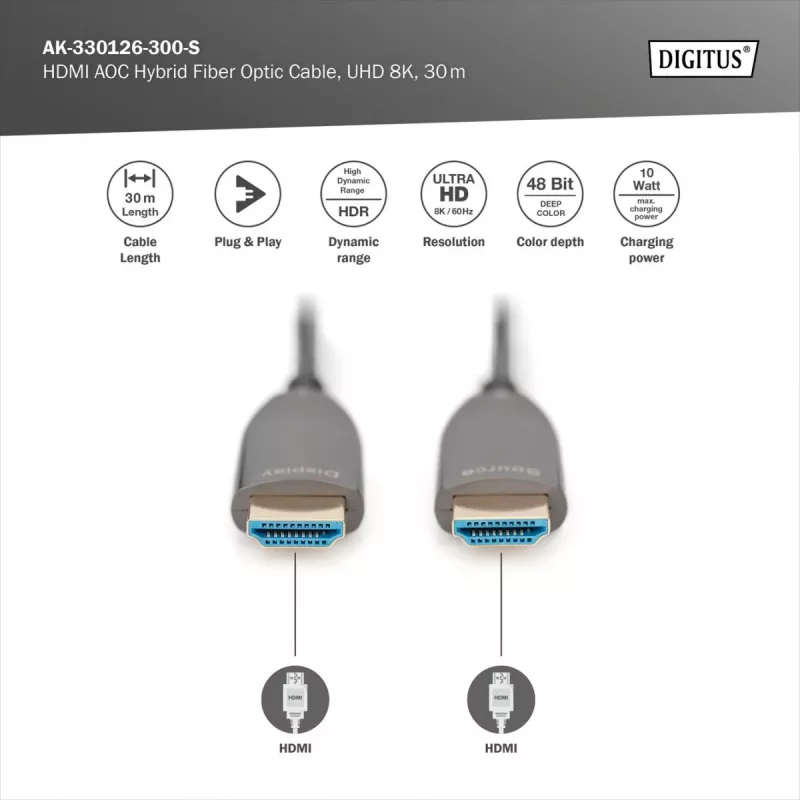

• Connectors: HDMI Type A — HDMI Type A
• Cable diameter (OD): 4.8 mm
• Minimum bending radius: 20 mm
• Color: Black
• Standards supported: HDMI 2.1, HDCP 2.2, HDR, EDID, CEC, ARC

How to use

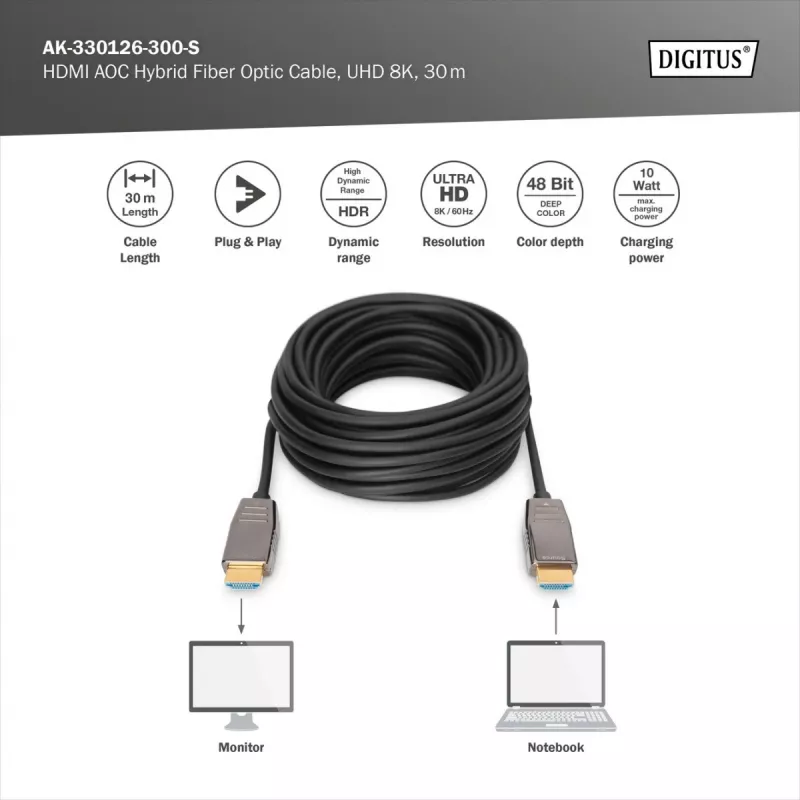

Connect one HDMI Type A plug to the source device (for example a player or PC) and the other HDMI Type A plug to the display or AV receiver. The cable is active and plug-and-play — no external power or configuration is required; the connected devices will negotiate supported modes automatically. Ensure both source and sink support the desired HDMI features (for example HDMI 2.1, HDCP 2.2 or HDR) to achieve full 8K@60Hz performance.

Recommendations

For reliable 8K/60Hz transmission, verify that both connected devices and their firmware support HDMI 2.1 and HDCP 2.2. Avoid sharp repeated bends beyond the 20 mm bending radius and route the cable to minimize mechanical stress. For in-wall installations, check local regulations and use appropriate conduit or raceway.
