HDMI - HDMI 90° DeLOCK 86358

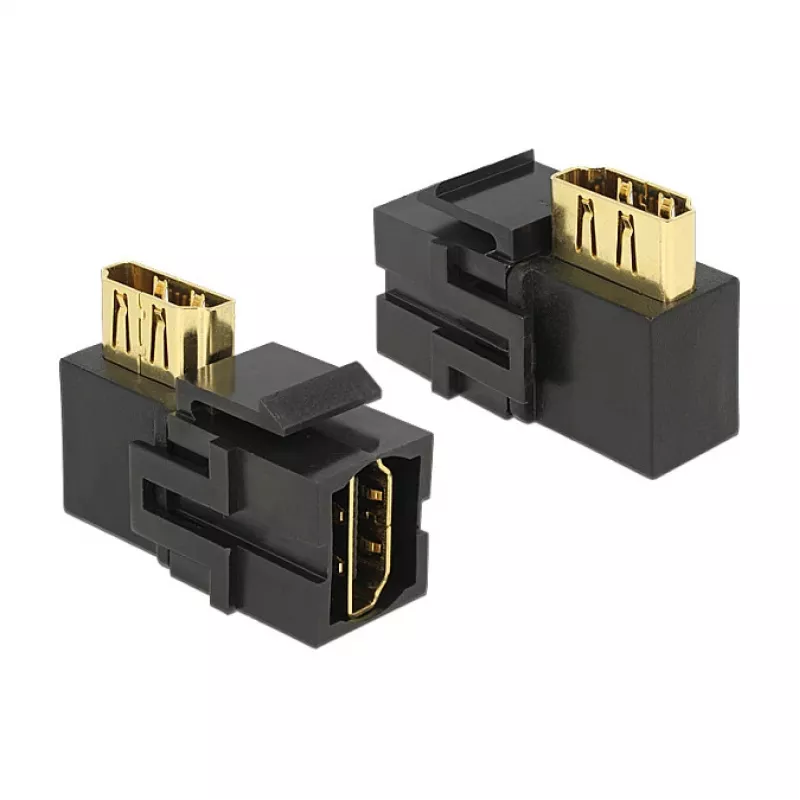

The DeLOCK HDMI - HDMI 90° adapter (model 86358) provides a space-saving angled HDMI connection to extend or redirect an HDMI cable. The adapter has HDMI male and female connectors and standardized dimensions that allow snap-in mounting in keystone patch panels, faceplates or surface-mount boxes. Its compact size (25.3 mm × 35.8 mm × 16.8 mm) and black colour make it suitable for installations in tight spaces where a straight connector would not fit.

Advantages

The angled design reduces strain on HDMI cables and connected ports while maintaining high-quality audio and video transmission. Standardised dimensions enable easy snap-in installation into common keystone-compatible housings. The small footprint helps organise connections in crowded AV cabinets or behind wall-mounted displays.

Suitable for

• Connecting HDMI devices in tight or recessed spaces
• Mounting in keystone patch panels and wall faceplates
• Use in AV cabinets, behind TVs or in surface-mount boxes

Key specifications

• Brand: DELOCK
• Model / MPN: 86358
• EAN: 4043619863587
• Connector 1: HDMI
• Connector 2: HDMI
• Orientation: 90° angled
• Dimensions (W × D × H): 25.3 mm × 35.8 mm × 16.8 mm
• Colour: Black

How to use

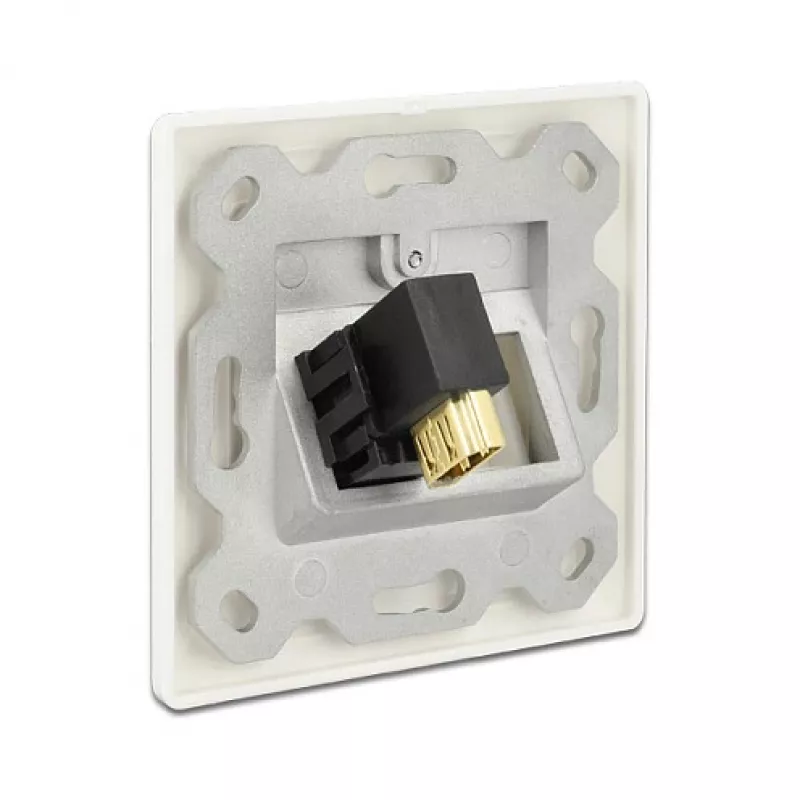

Insert the adapter into an existing HDMI cable or device HDMI port by aligning the HDMI connector and pressing gently until fully seated. If mounting in a keystone panel or faceplate, snap the module into the compatible opening following the panel manufacturer’s instructions. Ensure connectors are fully inserted to maintain reliable audio/video signal transmission.

Recommendations

Use the angled adapter where vertical or rear clearance is limited. Avoid applying excessive force or bending the cable sharply at the connector to prevent damage. Check that the keystone housing is compatible with DeLOCK’s standardised module dimensions before installation.
