HDMI-jakaja Manhattan 4-porttinen Compact

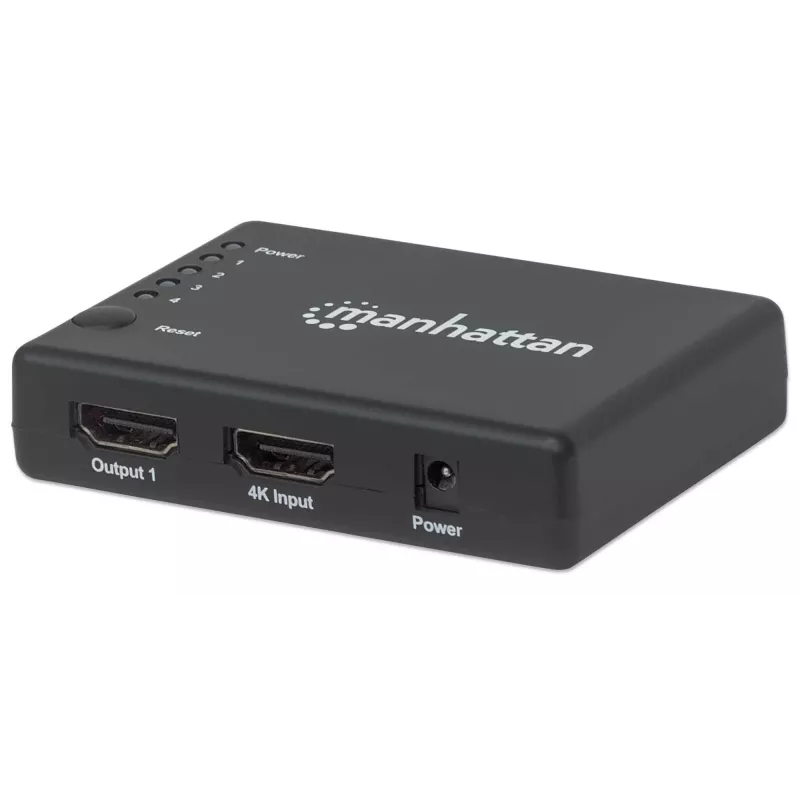

The Manhattan HDMI Splitter 4-Port Compact distributes a single Ultra-High-Definition (UHD) HDMI signal from one source to up to four HDMI displays. This compact splitter supports resolutions up to 4K@30Hz, includes a built-in booster and a 0.7 m cable, and is powered by AC for stable operation. It is suitable for presentations, multi-screen signage and home entertainment setups requiring one source to feed multiple screens.

Advantages

Full compliance with HDMI and HDCP 1.4 ensures reliable transmission of 4K video and multi-channel audio formats such as LPCM, DTS and Dolby TrueHD. The unit supports 3D video and Deep Colour and provides a plug-and-play experience that requires no additional software or complex configuration. Its compact black design and included power supply make installation quick and unobtrusive.

Suitable for

• Business presentations and meeting rooms
• Retail displays and digital signage
• Home theatre and multi-room video distribution
• Classroom or training environments

Key specifications

• Brand: MANHATTAN
• Model: HDMI Splitter Manhattan 4-Port Compact (MPN 207706)
• Video port type: HDMI

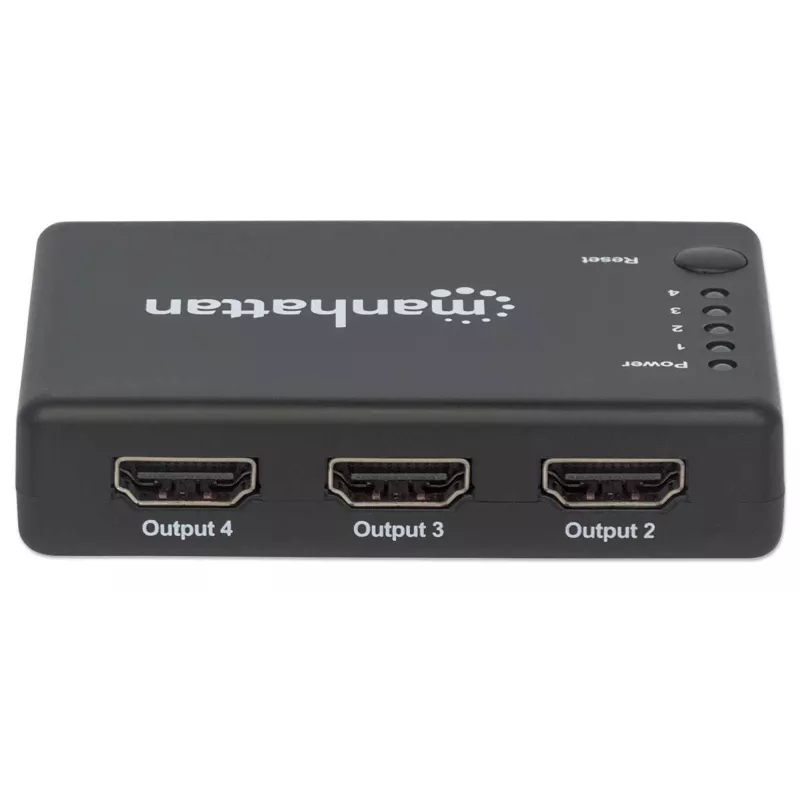

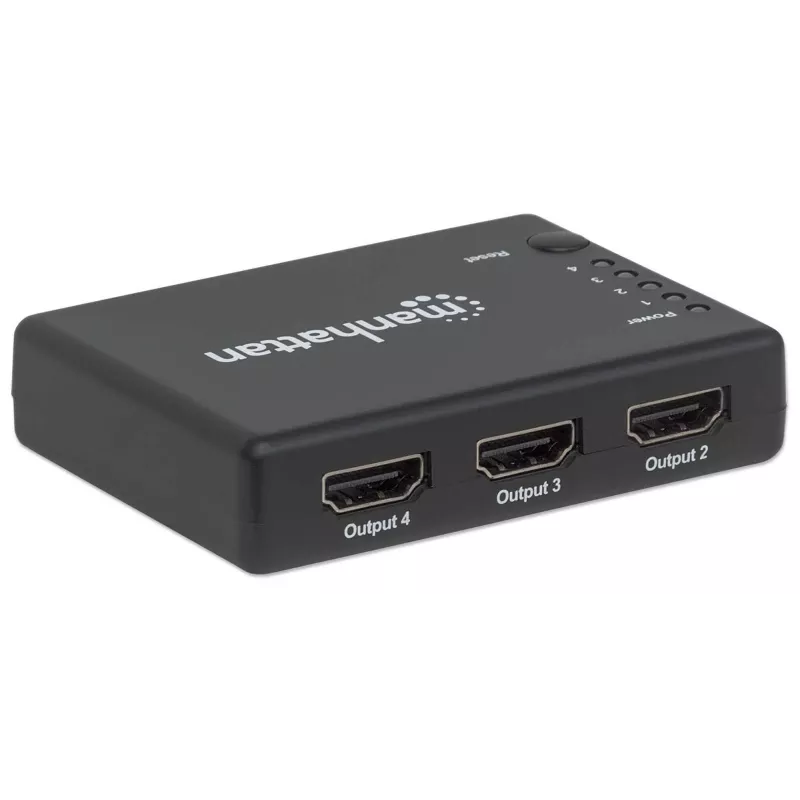

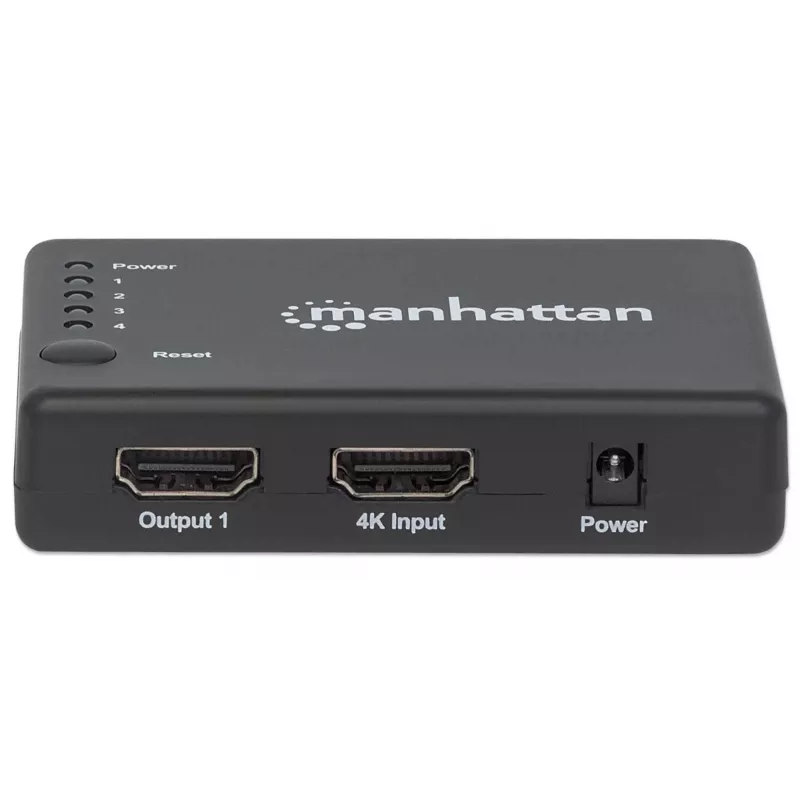

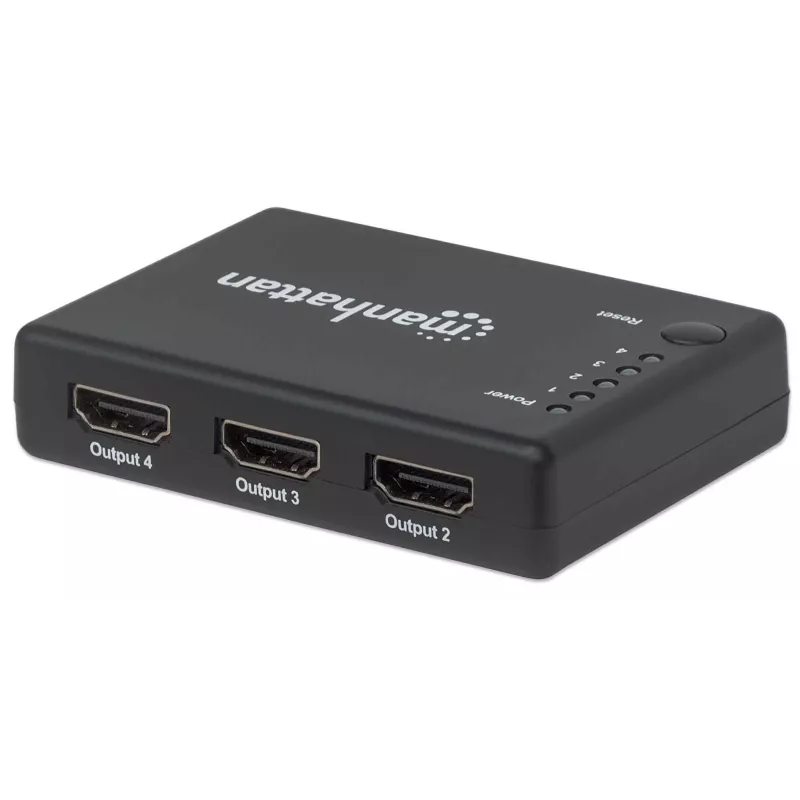

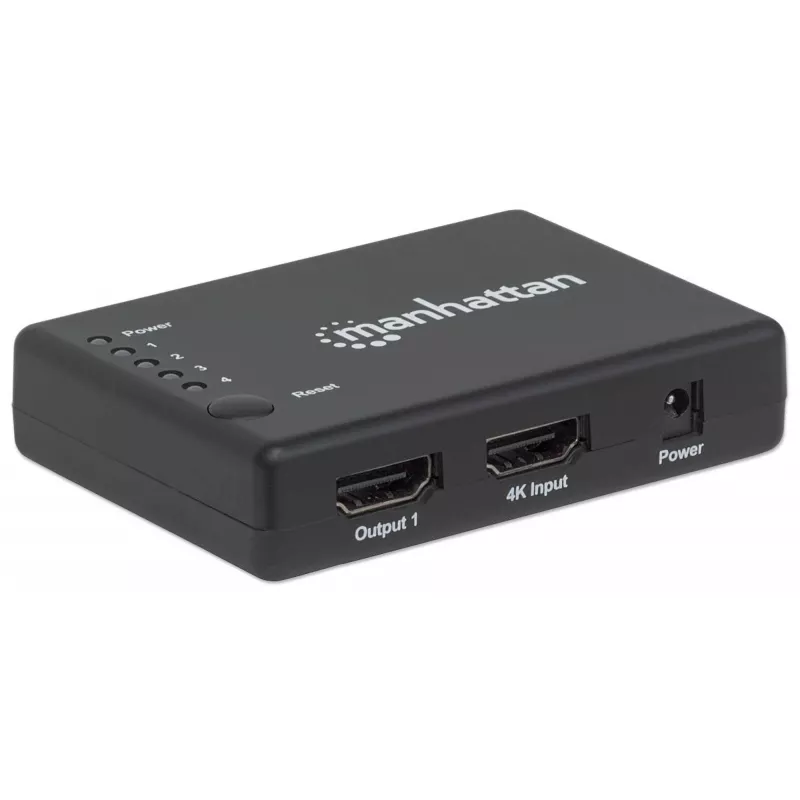

• Input/Output: 1 HDMI input, 4 HDMI outputs (total video ports quantity: 5)
• Maximum resolution: 4K @ 30 Hz
• HDCP: 1.4 compliant
• Audio support: LPCM, DTS, Dolby TrueHD
• Features: 3D support, Deep Colour, built-in booster
• Cable included: 0.7 m
• Power: AC powered (external adapter included)
• Colour: Black
• Weight: 0.3 kg
• Warranty: 3 years

How to use

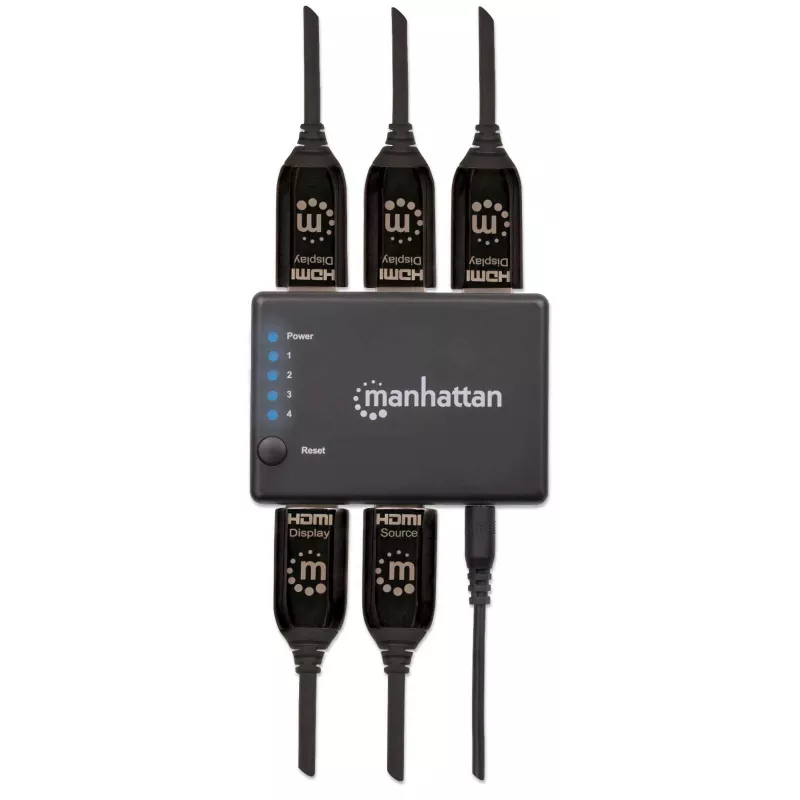

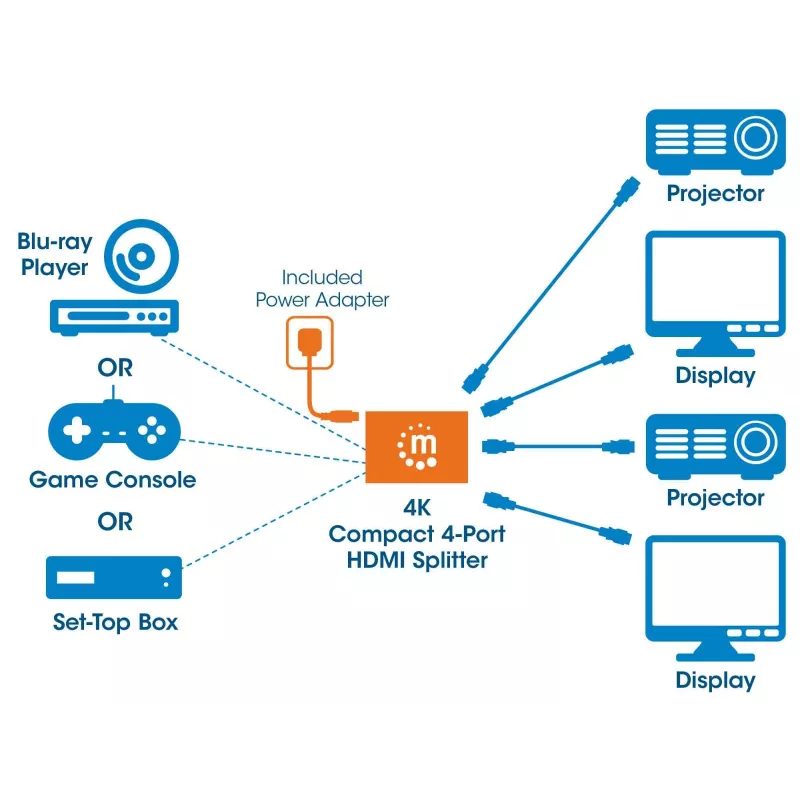

Connect the HDMI source (such as a Blu-ray player, set-top box or media player) to the splitter's HDMI input. Use up to four HDMI cables to connect displays to the splitter's HDMI outputs. Plug the included AC power adapter into the splitter and an electrical outlet. The device is plug-and-play; once powered and connected, it will mirror the input signal to all connected displays without additional configuration.

Recommendations

For best results use high-quality HDMI cables rated for 4K and ensure all connected displays support the target resolution and HDCP 1.4. Keep cable runs as short as practical to preserve signal integrity and avoid using passive adapters that may interrupt HDCP handshakes.
