HDMI-kaapeli Kramer Electronics CA-HM 10,7 m

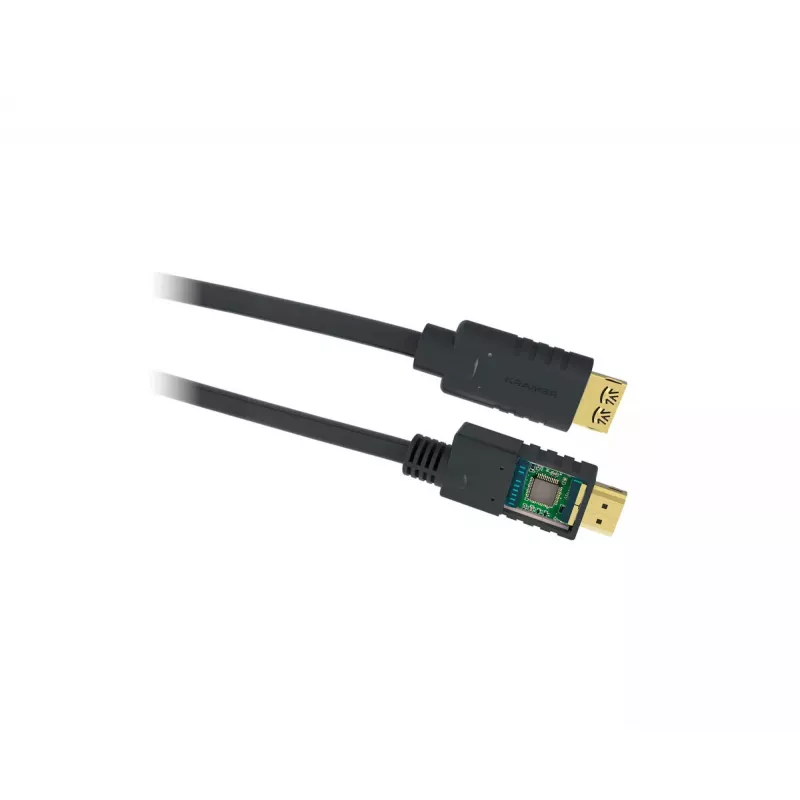

The Kramer Electronics CA-HM HDMI cable (10.7 m) is a high-performance HDMI Type A to Type A cable designed for connecting TVs, projectors and computers. It supports 18 Gbit/s data transfer, 3D and Audio Return Channel (ARC). The cable features gold-plated contacts, a black jacket and the Kramer K-Lock HDMI connector for secure connections.

Advantages

This CA-HM active HDMI copper cable transmits HDMI signals reliably over longer distances using built-in equalizing and signal compensation in the connector. It supports 18 Gbps up to 20 m and 10.2 Gbps up to 30 m, draws power from the HDMI source so no external power adapter is required, and includes Kramer’s K-Lock connector to prevent accidental disconnection. An LED on the connector indicates when a signal is successfully transmitted.

Suitable for

• Connecting Blu-ray players, media players or set-top boxes to TVs
• Linking laptops or desktops to projectors for presentations
• AV installations requiring a secure, locked HDMI connection
• Home theater systems that use ARC or 3D content

Key specifications

• Cable length: 10.7 m
• Connectors: HDMI Type A (male) — both ends
• Data rate: up to 18 Gbit/s (supports 3D, ARC)
• Active cable with equalizer and signal compensation in connector
• Power: draws power from HDMI source (no external power required)
• Connector feature: Kramer K-Lock with LED indication
• Colour: Black

How to use

Connect one end of the CA-HM cable to the HDMI output of the source device and the other end to the HDMI input of the display device. Ensure the K-Lock connector is fully engaged to lock the connection in place; the LED on the connector will illuminate when a signal is transmitted. No external power supply is required as the cable draws necessary power from the HDMI source.

Recommendations

For optimal performance, avoid excessive bending or kinking of the cable and keep the connection points accessible for engaging the K-Lock. Use distances within the supported data-rate range (18 Gbps up to 20 m, 10.2 Gbps up to 30 m) to maintain signal integrity.
