HDMI-kaapeli Kramer Electronics CLS-AOCH/60-33

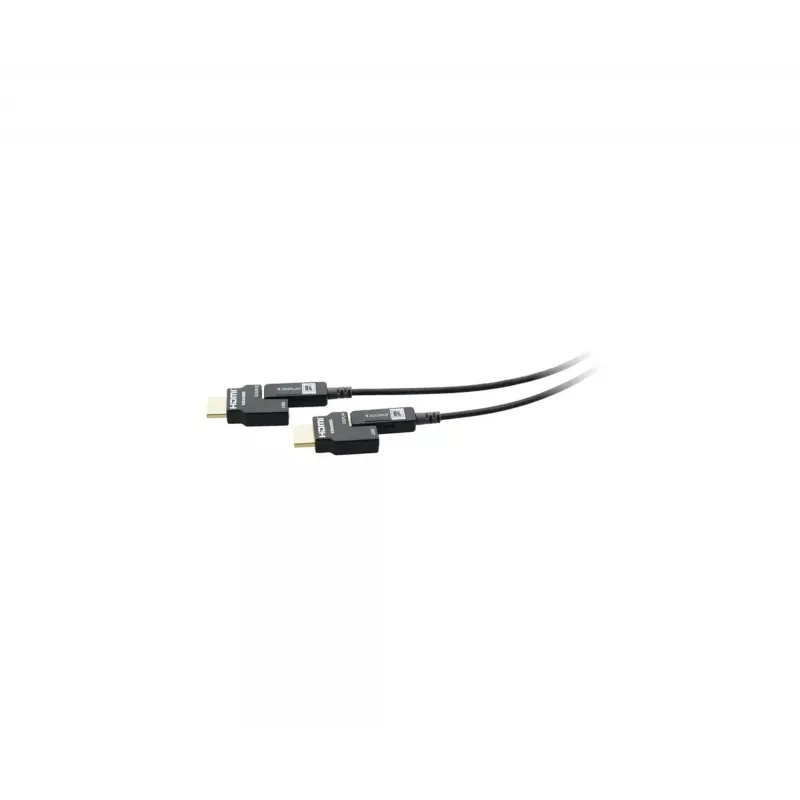

The Kramer CLS-AOCH/60 is an active hybrid optical HDMI cable that transmits 4K video signals over long distances with minimal signal loss. Designed with a micro‑HDMI (Type D) inner core and detachable standard HDMI connectors, the cable combines the flexibility of a thin optical fiber (3.4 mm diameter) with convenient HDMI termination for runs up to 100 m (328 ft). It supports transparent EDID and HDCP handling and reduces susceptibility to EMI and RFI, making it suitable for professional AV installations and tight conduit routing.

Advantages

The CLS-AOCH/60 offers 4K@60Hz (4:4:4) video support and a high data throughput of up to 18 Gbps while maintaining embedded audio compatibility including PCM 8‑channel, Dolby TrueHD and DTS‑HD Master Audio. Its thin, lightweight construction and small bending radius (6 mm) allow easier installation in confined spaces compared with copper or standard optical cables. Connectors are 24K gold‑plated for corrosion resistance and reliable contact, and the jacket is low‑smoke, halogen‑free for safer deployments.

Suitable for

• Long‑distance HDMI connections in professional AV installations (up to 100 m / 328 ft)
• Runs through conduits, cable trays or tight spaces thanks to thin, flexible construction
• Connecting devices with HDMI Type D (micro‑HDMI) ports to standard HDMI equipment using detachable connectors
• Environments sensitive to EMI/RFI where signal integrity is critical

Key specifications

• Maximum resolution: Up to 4K@60Hz (4:4:4), 4096 x 2160
• Data rate: Up to 18 Gbps
• Audio: Embedded PCM 8‑channel, Dolby Digital TrueHD, DTS‑HD Master Audio
• HDMI features: HDCP 2.2, EDID and CEC support
• Connectors: Micro HDMI (Type D) core with detachable full‑size HDMI connectors; 24K gold‑plated contacts
• Cable diameter: 3.4 mm (0.13")
• Minimum bending radius: 6 mm (0.24")
• Jacket: Low smoke, halogen‑free
• Compliance: RoHS 2011/65/EU

How to use

Route the thin hybrid optical cable through the conduit or installation path, using the small bending radius where necessary. Attach or detach the external HDMI connectors as required to connect the micro‑HDMI Type D ends to source or display devices. Ensure both ends are firmly seated in the HDMI ports. The cable handles EDID and HDCP negotiation automatically; no additional configuration is typically required.

Recommendations

For best performance, avoid sharp bends tighter than the specified 6 mm radius and protect the detachable connector interfaces during installation. Verify source and display HDCP/EDID compatibility when deploying at maximum distances and keep the cable away from strong EMI/RFI sources where possible.
