HDMI-kytkin 4x2 matriisi 4K@30Hz HDMI-SW-4/2-MATRIX

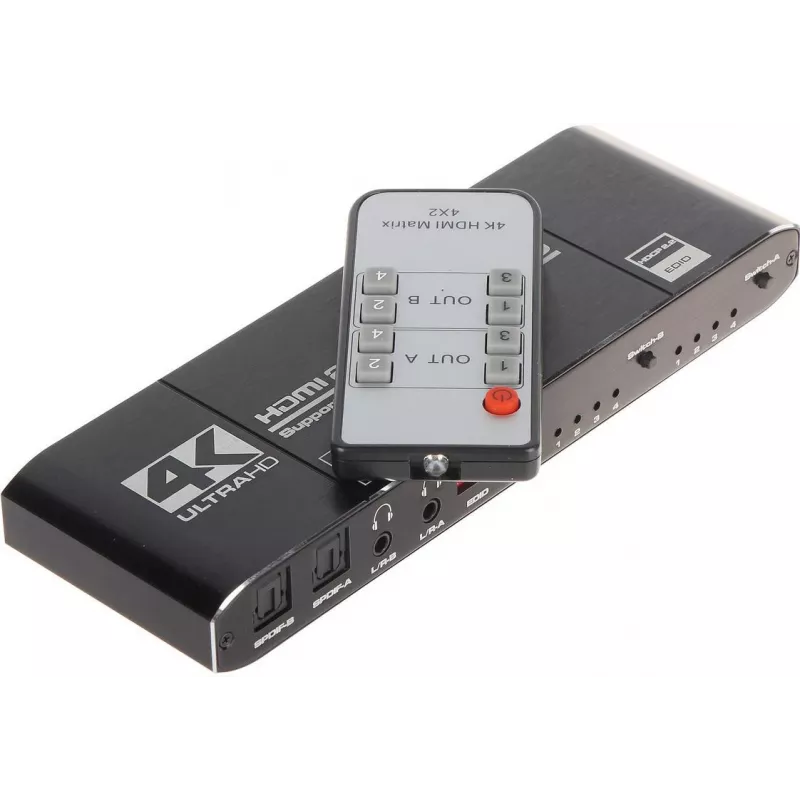

The HDMI-SW-4/2-MATRIX is a professional 4x2 HDMI matrix switch that allows you to route any of four HDMI sources to any of two displays independently. Supporting 4K resolution at 30Hz and HDMI 1.4b, it delivers crisp, high-definition video and multi-channel audio. The metal housing ensures durability, while smart EDID management guarantees seamless compatibility with connected devices. Control via front panel buttons or the included IR remote provides flexible operation.

Advantages

• Independent switching: Route any source to any display simultaneously.
• 4K support: Enjoy ultra-high-definition content at 3840x2160@30Hz.
• Wide audio compatibility: Supports DTS-HD, Dolby TrueHD, DTS, Dolby AC3, and DSD.
• Robust metal housing: Designed for long-lasting performance.
• Easy control: Use front panel buttons or the included IR remote.

Suitable for

• Home theater systems with multiple sources and displays
• Conference rooms requiring flexible AV routing
• Digital signage applications
• Gaming setups with multiple consoles and monitors

Key specifications

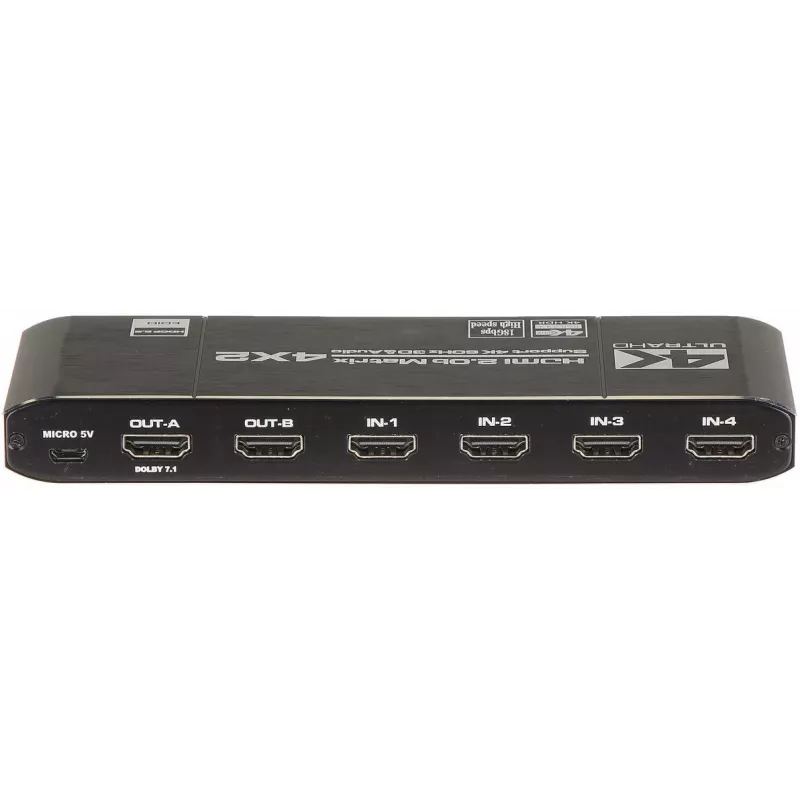

• HDMI Inputs: 4
• HDMI Outputs: 2
• HDMI Version: 1.4b
• Max Resolution: 3840x2160 @ 30Hz
• Max Bandwidth: 10.2 Gbps
• HDCP Version: 1.4
• Audio Formats: DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD

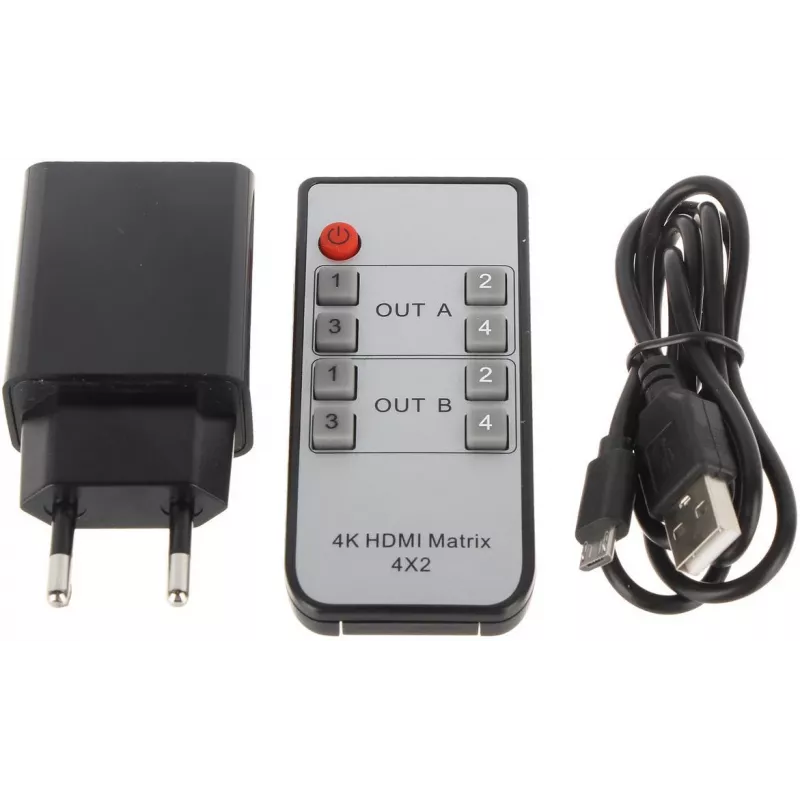

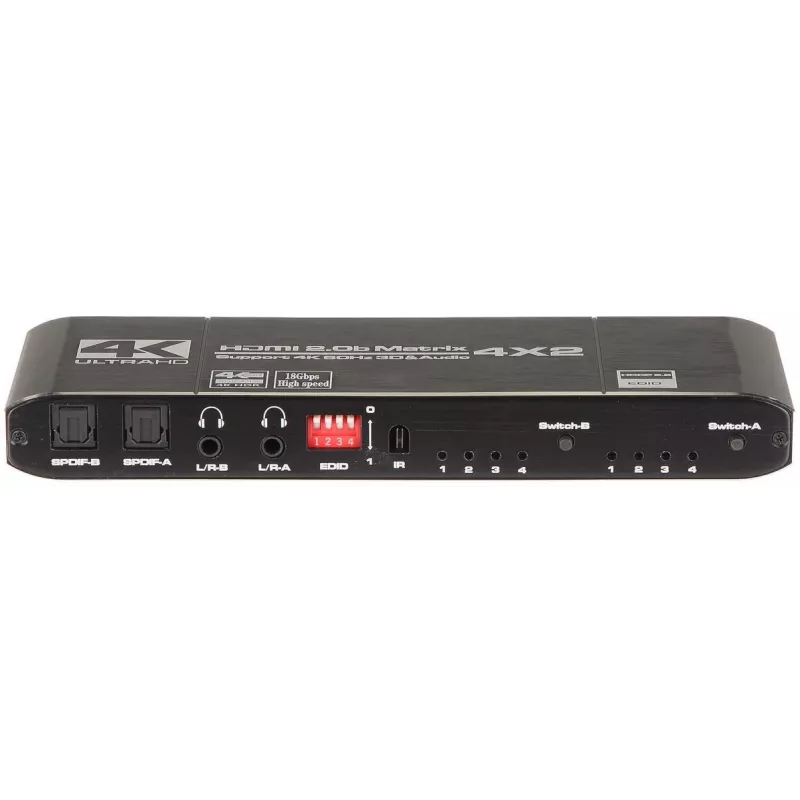

• Control: Front panel buttons, IR remote
• Power Supply: DC 5V/1A (adapter included)
• Housing Material: Metal
• Operating Temperature: 0 to +40°C
• Storage Temperature: -20 to +60°C

Recommendations

For optimal performance, use high-speed HDMI cables with Ethernet. Ensure all connected devices support HDCP 1.4 for proper content playback.
