HDMI-moduuli DeLOCK Easy 45 81304 kulma 90° 22,5 x 45 mm

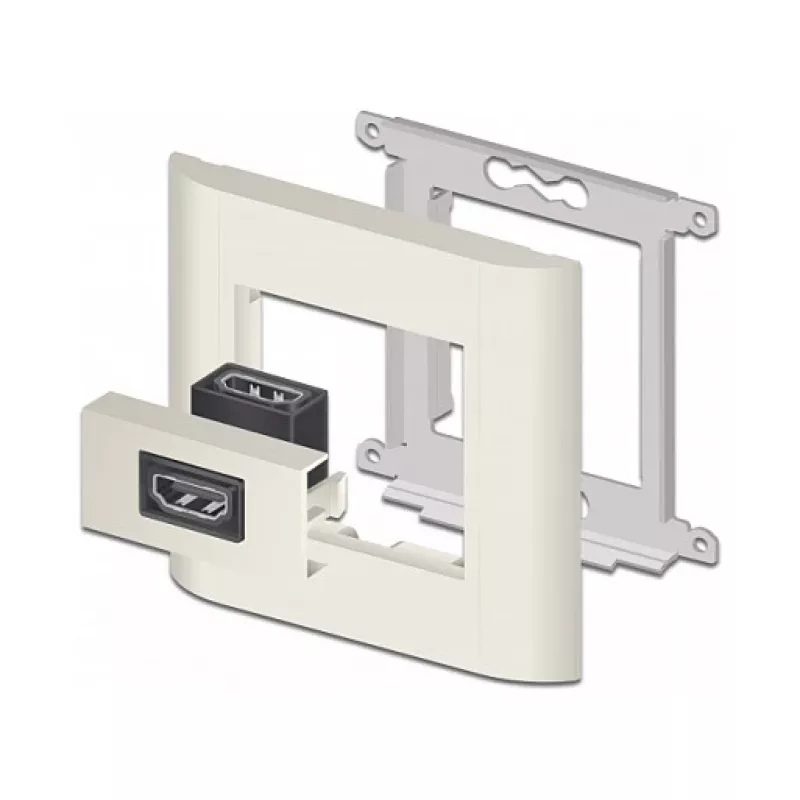

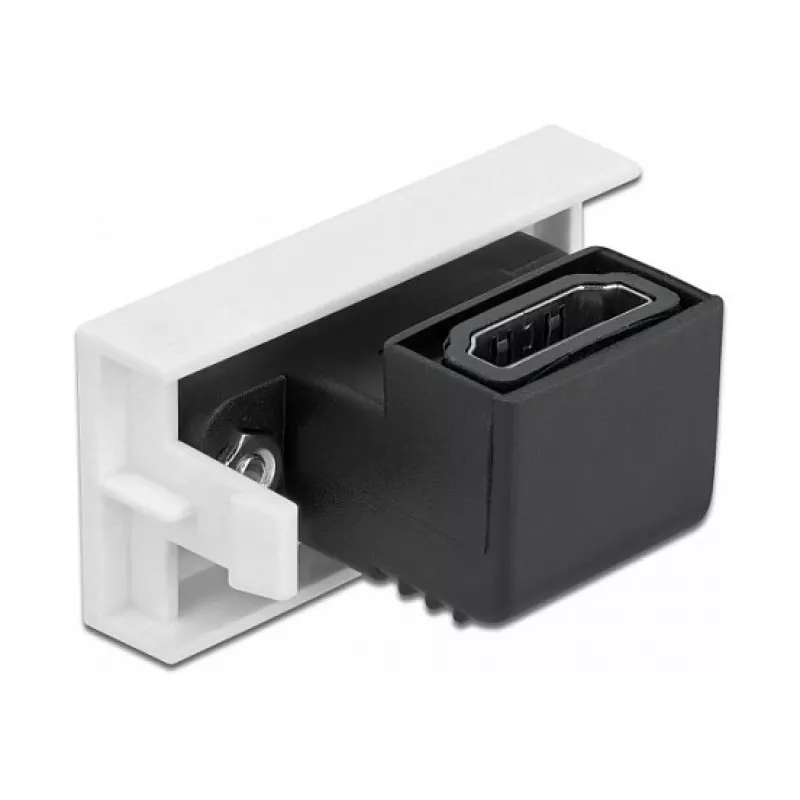

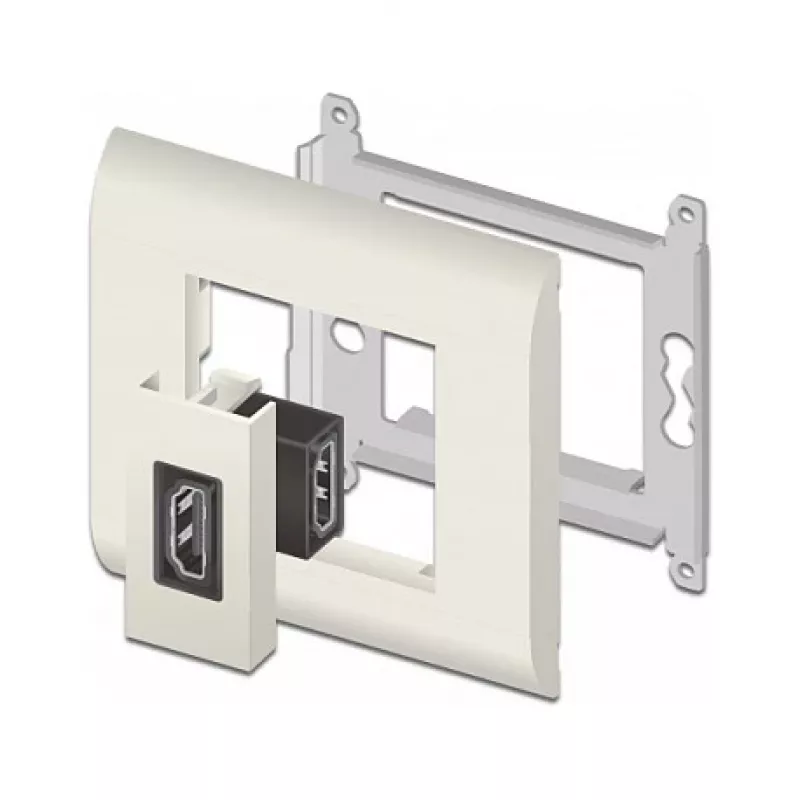

The DeLOCK Easy 45 HDMI Module (81304) provides an HDMI female port in a compact, snap-in module. Designed for a 90° angled HDMI connection, the module measures 22.5 x 45 mm with a height of 27.6 mm and is finished in black. It is part of the Easy 45 modular system and fits standard 45 mm frames and compatible module holders or cable ducts to connect TVs, monitors, laptops and other HDMI-capable devices.

Advantages

The angled 90° design reduces cable stress in tight installations and enables neat cable routing. The snap-in mechanism secures the module in place while allowing easy removal when required. As a standardized Easy 45 component, the module is interchangeable with other modules and integrates with existing Easy 45 mounting solutions.

Suitable for

• Connecting TVs and monitors in wall or furniture-mounted frames
• Use in multimedia cabinets and AV racks with limited clearance
• Integrating HDMI ports into modular office or home installations

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 81304
• EAN: 4043619813049
• Module type: HDMI female, 90° angled

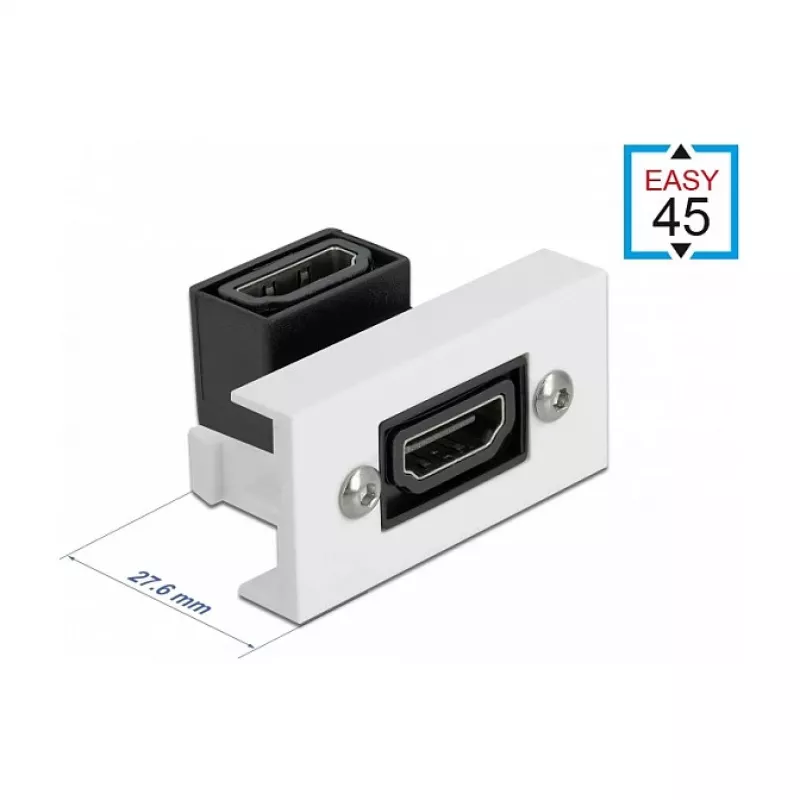

• Dimensions: 22.5 x 45 mm (module footprint); height 27.6 mm
• Colour: Black
• Compatibility: Easy 45 modular system, standard 45 mm frames and holders

How to use

Insert the module into a compatible Easy 45 frame or module holder using the snap-in mechanism until it clicks into place. Connect an HDMI cable to the female port; the 90° orientation helps route the cable along the panel or wall. To remove the module, release the snap-in latch and pull the module out of the holder.

Recommendations

For reliable signal transmission, use high-quality HDMI cables rated for your required resolution and ensure the module is mounted in a holder compatible with Easy 45 dimensions to avoid mechanical stress.
