HEINRICH KOPP 172005030 Schuko-lattapistoke pidikkeellä, 3x1,5 mm², musta

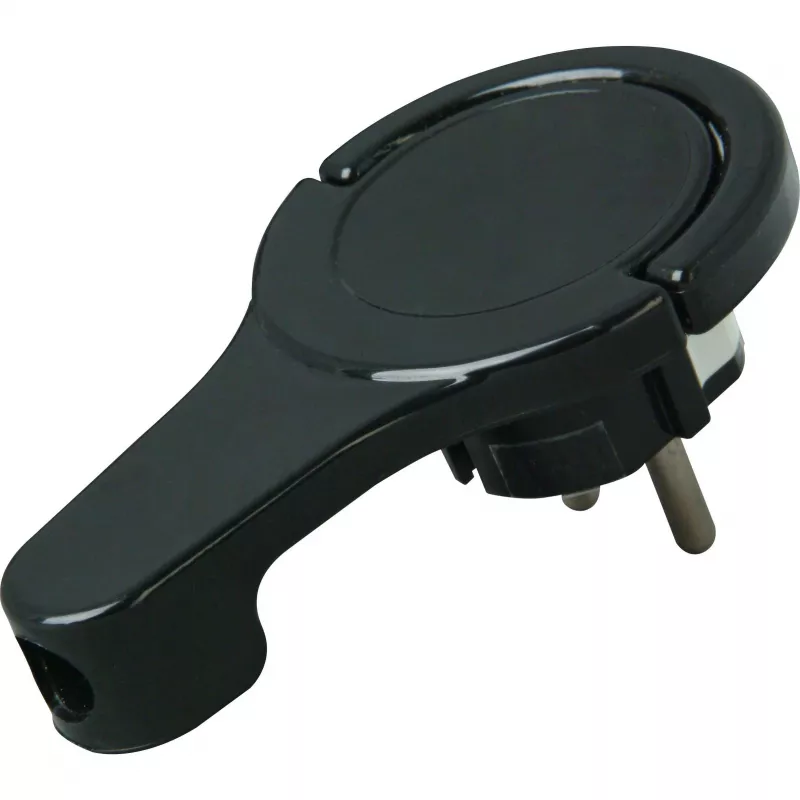

This Schuko flat plug with integrated bracket from HEINRICH KOPP is a low-profile power connector engineered for tight spaces, accepting cables up to 3 x 1.5 mm². Its angled design and screw terminals ensure a secure, space-saving connection for indoor electrical installations.

Advantages

The flat, angled body keeps the plug close to the wall, making it ideal for furniture, appliances, and areas with limited clearance. The integrated strain relief protects the cable from pulling and bending, while the robust thermoplastic housing offers durability and electrical insulation. The included bracket allows for neat cable management and additional mechanical support.

Suitable for

• Connecting power cords to appliances in confined spaces
• Indoor electrical installations requiring a low-profile plug
• Applications with cable cross-sections from 0.75 mm² to 1.5 mm²
• Use with Schuko sockets (CEE 7/7) rated up to 16 A / 250 V

Key specifications

• Plug type: Schuko (CEE 7/7), 2P+E
• Rated voltage / current: 250 V AC / 16 A
• Cable compatibility: 3 x 0.75 mm² to 3 x 1.5 mm²
• Connection: Screw terminals
• Material: Thermoplastic, black
• Protection class: IP20
• Standard: DIN VDE 0620-1

Recommendations

For a reliable, space-saving power connection in indoor environments, the HEINRICH KOPP flat plug with bracket is an excellent choice. Its angled design and strain relief make it particularly suitable for furniture and appliances where a standard plug would protrude excessively.
