HEINRICH KOPP 508000003 uppo-sarjapainikesisäke, 250V, 10AX, IP20, alumiini

Rated at 250 V AC and 10 AX, this flush-mounted series push-button socket insert from HEINRICH KOPP delivers reliable switching for two independent circuits in a single module.

Overview

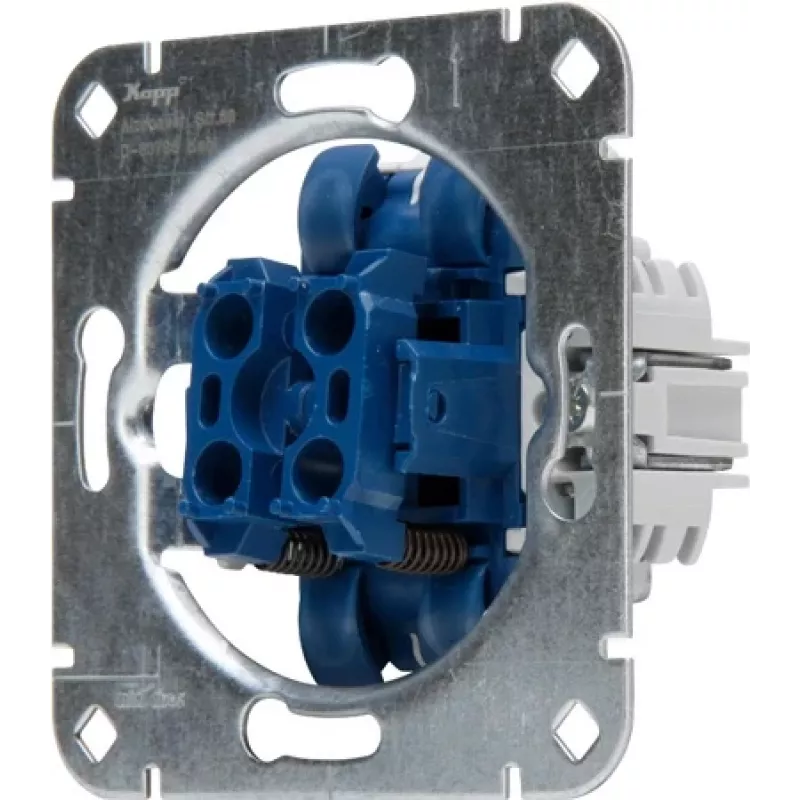

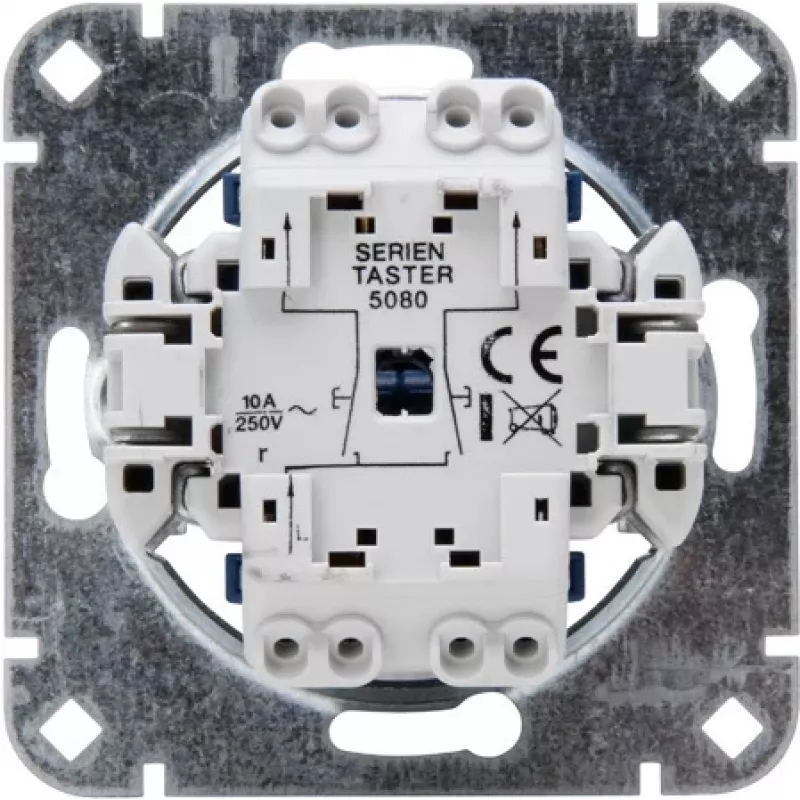

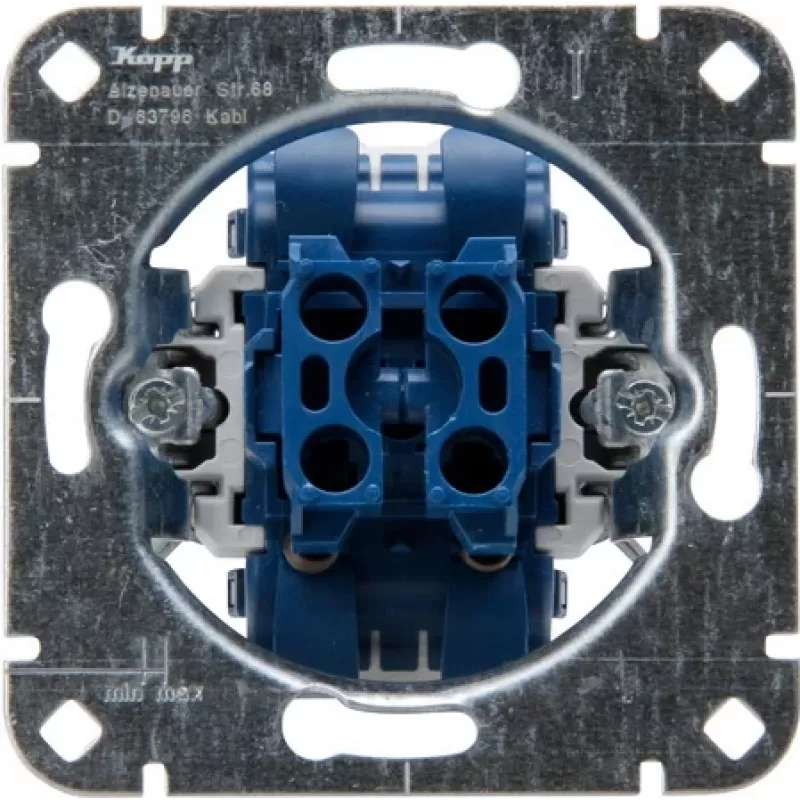

The KOPP 508000003 is a series push-button (Doppel-Taster) insert designed for flush mounting in standard 60 mm flush boxes. It features screw terminals for secure wiring and a momentary (non-latching) operating principle. The insert is compatible with KOPP Paris, Vision and similar switch ranges, and is intended for use with an aluminium-coloured cover or rocker (not included).

What stands out

• Two separate push-button circuits in one compact insert
• Rated for 250 V AC and 10 AX switching capacity
• Flush-mounted design fits standard 60 mm flush boxes
• Screw terminals ensure a durable, vibration-resistant connection
• Momentary action returns to rest position after release

Technical details

• Product type: Push-button Switch Insert
• Switch type: Series Push-button (Doppel-Taster)
• Mounting type: Flush-mounted (Unterputz)
• Rated voltage: 250 V AC
• Rated current: 10 AX
• IP protection class: IP20
• Connection type: Screw terminals
• Number of circuits: 2
• Operating principle: Momentary (non-latching)
• Housing material: Plastic
• Colour: Aluminium (for associated cover/rocker)
• Number of modules: 1

Our verdict

A solid choice for electricians needing a dual push-button insert that integrates seamlessly with the KOPP switch ranges.
