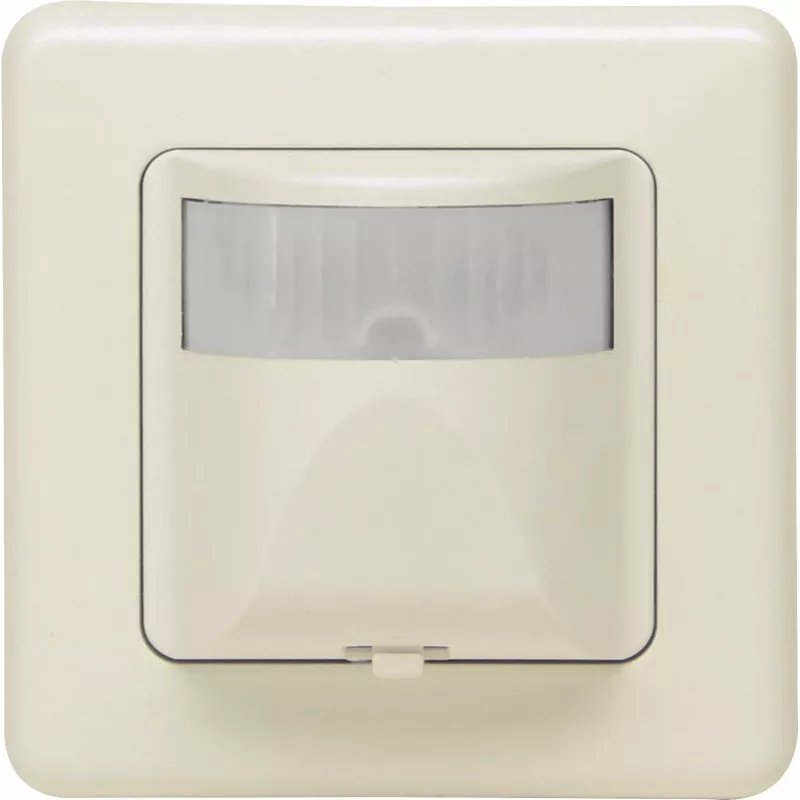

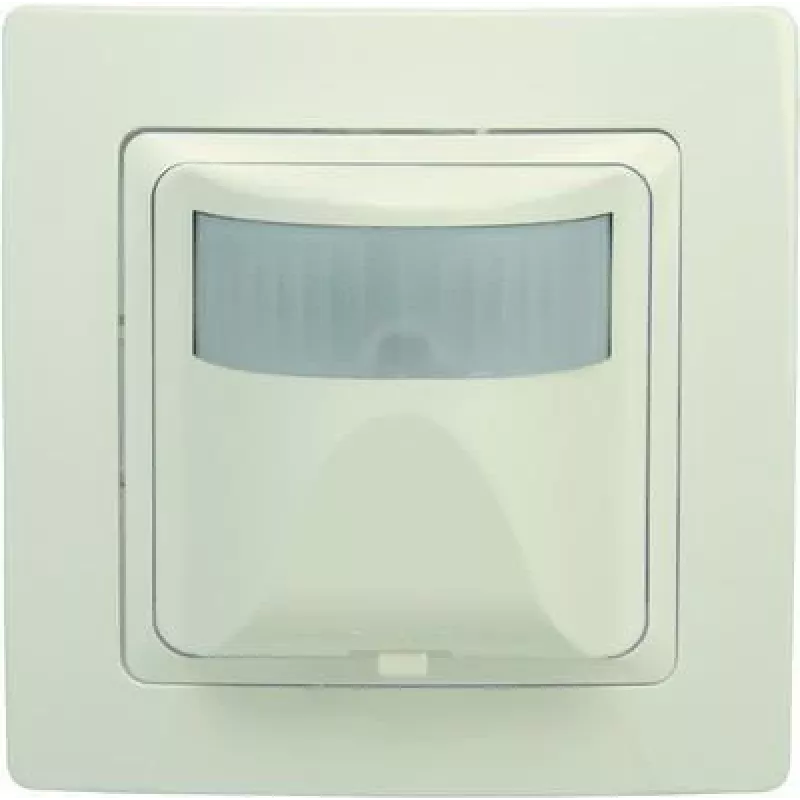

HEINRICH KOPP 808401012 infrapunaliiketunnistin, johdollinen, valkoinen

For outdoor and indoor areas where automatic lighting control is needed, the HEINRICH KOPP 808401012 infrared motion detector switches lights on when movement is detected and off after an adjustable delay. The sensor is wired and surface-mounted, with a detection angle of 180° and a maximum range of 12 m at a mounting height of 2.5 m. The white housing is made of UV-resistant plastic and rated IP44.

Key specifications

• Sensor type: Passive Infrared (PIR)
• Mounting type: Surface mount
• Detection angle: 180°
• Detection range: max. 12 m (at 2.5 m mounting height)
• Rated voltage: 230 V AC, 50 Hz
• Max. switching power (resistive load): 1200 W
• Max. switching power (LED/fluorescent): 300 W
• Protection class: IP44
• Colour: White
• Time setting (switch-off delay): 10 seconds – 7 minutes (adjustable)
• Light sensitivity: 3 – 2000 Lux (adjustable)
• Recommended installation height: 1.8 – 2.5 m
• Operating temperature: -20°C to +40°C
• Power consumption (standby): < 0.5 W
• Wiring: 3-wire connection
• Material: UV-resistant plastic
• Application area: Outdoor and indoor
• Switching type: Relay

Why choose it

The adjustable time and light sensitivity settings allow the detector to be tailored to the location, so lights only operate when needed. The IP44 rating and UV-resistant plastic make it suitable for covered outdoor areas.

Ideal use cases

• Entrance areas and driveways
• Hallways and stairwells
• Garages and basements
• Storage rooms

Good to know

The detector uses a 3-wire connection and must be installed by a qualified electrician. It is not suitable for use with dimmers or electronic transformers.
