HEINRICH KOPP BC.energieaut.BWM Blue-Control liiketunnistin valkoinen (8672.0201.8)

With a 150° detection angle and a 12 m range, this motion detector covers large outdoor areas while switching loads up to 2300 W for incandescent/halogen or 600 W for LED lighting. The adjustable sensor head and teach-in function allow precise adaptation to the installation site.

Overview

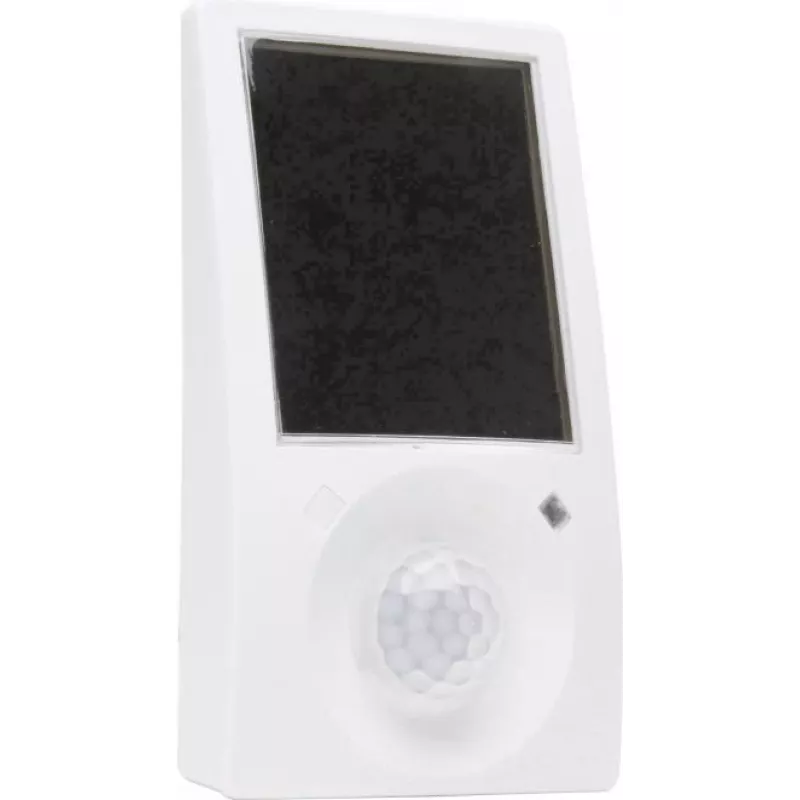

The HEINRICH KOPP BC.energieaut.BWM Blue-Control is a wall-mounted motion detector for automatic lighting control. It operates on 230 V AC and is suitable for outdoor use thanks to its IP55 rating. The housing is made of UV-stabilized polycarbonate in white.

What stands out

• Passive infrared (PIR) sensor with 150° detection angle and 12 m range
• High switching capacity: 2300 W incandescent/halogen, 600 W LED
• Adjustable time (5 s – 15 min) and brightness (5 – 1000 lux) settings
• Teach-in function to learn the current brightness level
• Test function for verifying detection coverage
• Adjustable sensor head for flexible alignment

Technical details

• Detection technology: Passive Infrared (PIR)
• Detection angle: 150°
• Detection range: up to 12 m
• Mounting type: Wall mounting
• Recommended installation height: 1.8 – 2.5 m
• IP rating: IP55
• Power supply: 230 V AC, 50/60 Hz
• Max. incandescent/halogen load: 2300 W
• Max. LED load: 600 W
• Time setting range: 5 s – 15 min
• Brightness setting range: 5 – 1000 lux
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilized polycarbonate
• Standby power consumption: 0.5 W
• Switching channels: 1 (for light)

Our verdict

A robust motion detector for demanding outdoor applications, offering high switching capacity and flexible adjustment options.
