HEINRICH KOPP HK07 pinta-asennusrasia, 1-osainen, IP20, musta 374750008

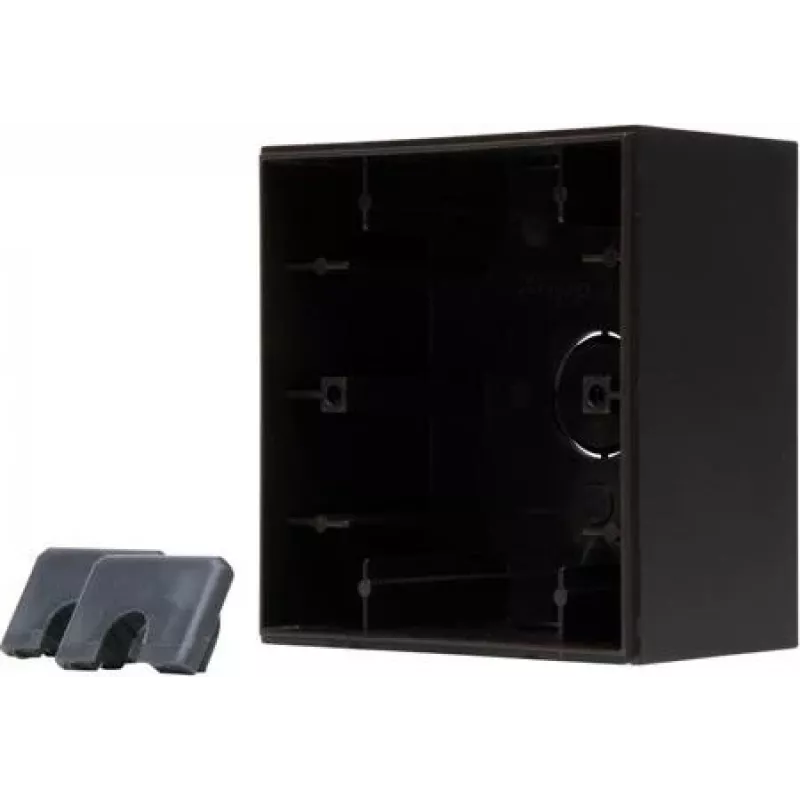

The HEINRICH KOPP HK07 surface-mounted housing offers a robust and halogen-free thermoplastic enclosure for standard switch and socket inserts. Its compact 1-gang design with knock-out cable entries simplifies installation in residential and commercial wiring projects.

Advantages

This housing features an impact-resistant IK05 construction and a wide operating temperature range from -5°C to +60°C. The opaque cover conceals wiring while maintaining easy access, and the black RAL 9005 finish integrates cleanly into modern interiors.

Suitable for

• Standard switch inserts
• Socket outlets
• Surface-mounted electrical installations

Key specifications

• Product type: Surface-mounted housing
• Series: HK07
• Number of gangs: 1
• IP rating: IP20
• Material: Thermoplastic
• Halogen-free: Yes
• Colour: Black (RAL 9005)
• Mounting type: Surface mounting
• Cable entry: Knock-out entries
• Impact resistance: IK05
• Operating temperature: -5°C to +60°C
• Internal depth: 35 mm
• External dimensions: 81 x 81 x 42 mm

Recommendations

For a clean and durable surface-mounted solution, pair the HK07 housing with compatible HEINRICH KOPP inserts to complete your installation.
