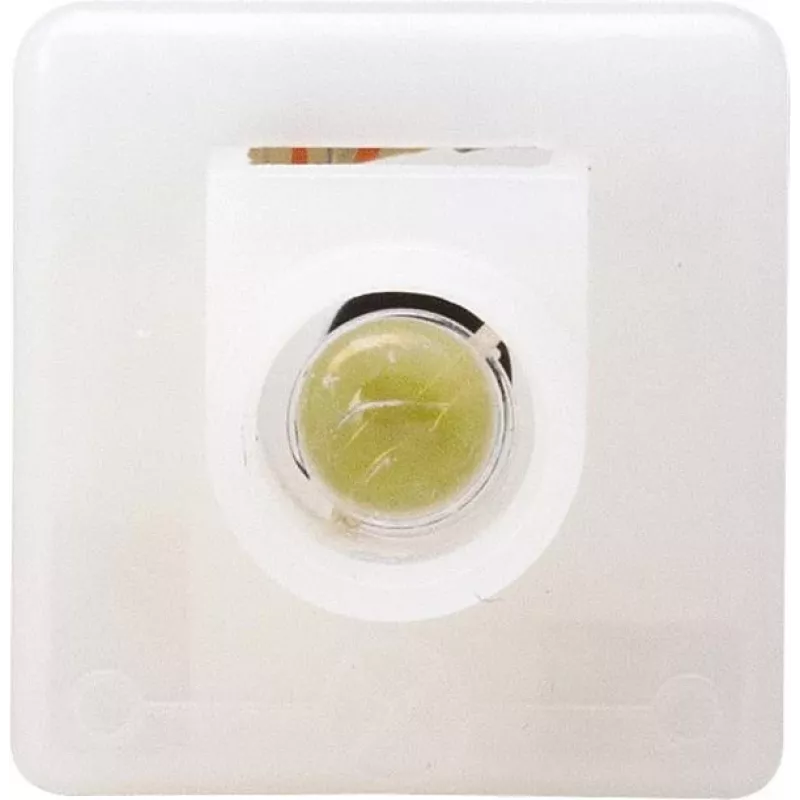

HEINRICH KOPP LED-valaisin halogeeniton 230V valkoinen (324401000)

LED light unit for local illumination in electrical installations, halogen-free and operating at 230V. Provides cool white light with a colour temperature of 6500K.

Advantages

Halogen-free housing material reduces toxic gas emissions in case of fire. Long LED lifetime of over 50,000 hours ensures minimal maintenance. Screw terminals allow secure connection for conductors up to 1.5 mm².

Suitable for

• Orientation lighting in switch cabinets
• Illumination of work areas in electrical installations
• Indoor applications with snap-on or screw mounting

Key specifications

• Operating voltage: 220-240 V AC
• Power consumption: 1.5 W
• Light colour: White (6500 K)
• Halogen-free: Yes
• Protection class: II
• IP rating: IP20
• Connection: Screw terminals (max. 1.5 mm²)
• Mounting: Snap-on / screw mounting
• Housing material: Polyamide (PA)
• Operating temperature: -20 °C to +50 °C
• LED lifetime: > 50,000 hours (L70/B50)
• Current consumption: Approx. 6.5 mA

Recommendations

For reliable, low-maintenance illumination in electrical enclosures, this halogen-free LED unit offers a durable solution with easy installation.
